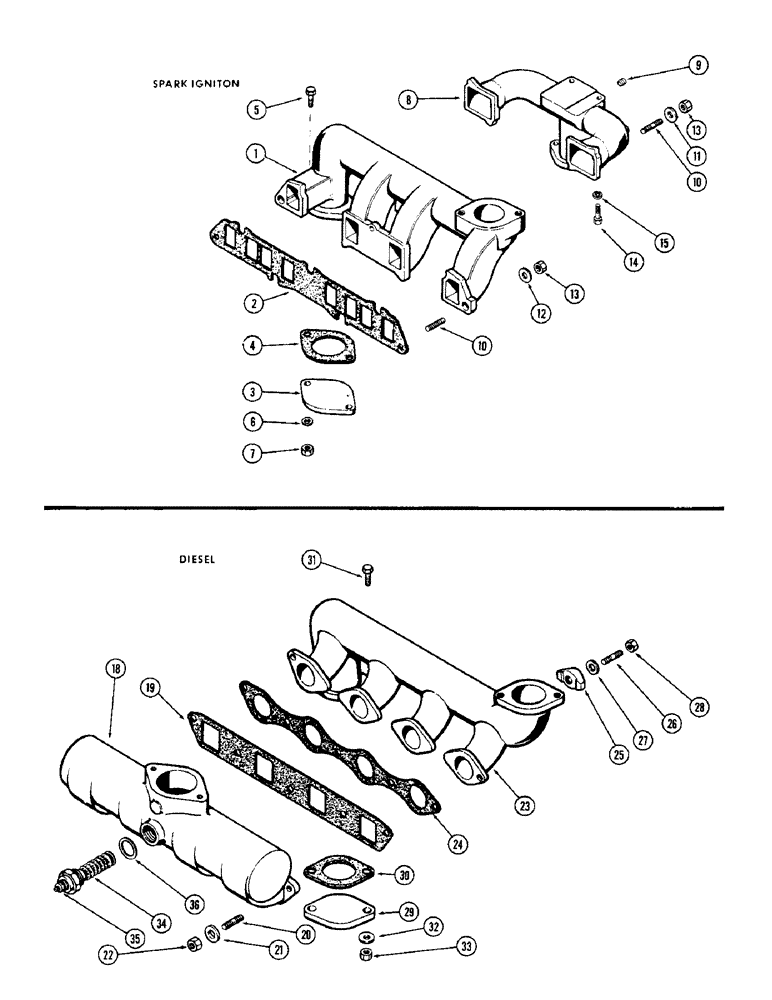

Запчасти Case IH 1255 (008) - MANIFOLD, 188 SPARK IGNITION ENGINE (10) - ENGINE

1

G2097

MANIFOLD

- exhaust

1шт.

2

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

3

A38188

PLATE

COVER - exhaust opening

1шт.

4

G46853

MANIFOLD GASKET

- cover

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

6

195-25

WASHER,3/8"

2шт.

7

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf steel)

2шт.

8

A37170

MANIFOLD

ASSY. - intake

1шт.

9

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" P.T. sq. hd.

1шт.

10

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

11

195-25

WASHER,3/8"

Stud 3/8"

3шт.

12

A30058

WASHER

- stud (13/32 x 7/8 x 1/8")

4шт.

13

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Sees Pruf)

7шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

18

A35782

MANIFOLD

- intake (188) DIESEL ENGINE

1шт.

19

G46871

GASKET

- intake manifold to head (188) DIESEL ENGINE

1шт.

20

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4") (188) DIESEL ENGINE

4шт.

21

195-25

WASHER,3/8"

(188) Diesel engine 3/8"

4шт.

22

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf steel) (188) DIESEL ENGINE

4шт.

23

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust (188) DIESEL ENGINE

1шт.

24

G46872

MANIFOLD GASKET

- exhaust manifold to head (188) DIESEL ENGINE

1шт.

25

A35028

CLAMP

- manifold to head (188) DIESEL ENGINE

6шт.

26

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16") (188) DIESEL ENGINE

6шт.

27

195-25

WASHER,3/8"

(188) Diesel engine 3/8"

6шт.

28

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf steel) (188) DIESEL ENGINE

6шт.

29

A38188

PLATE

COVER - exhaust opening (188) DIESEL ENGINE

1шт.

30

G46853

MANIFOLD GASKET

- cover (188) DIESEL ENGINE

1шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (188) DIESEL ENGINE

2шт.

32

195-25

WASHER,3/8"

(188) Diesel engine 3/8"

2шт.

33

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf steel) (188) DIESEL ENGINE

2шт.

34

A37775

HEATER

ASSY. - intake manifold (188) DIESEL ENGINE

1шт.

35

129-503

NUT,1/4"-20, Brass

(188) Diesel Engine 1/4"-20, Brass

1шт.

36

A20916

MANIFOLD GASKET

GASKET - heater to manifold (188) DIESEL ENGINE

1шт.
