Заказать запчасти

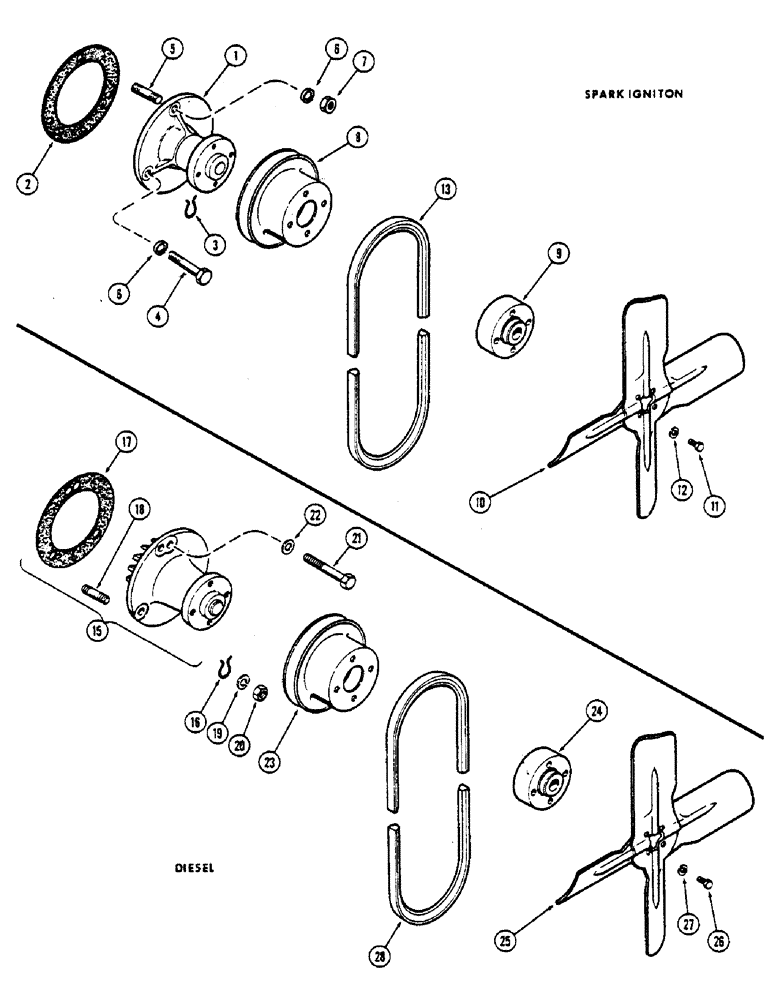

Запчасти Case IH 1255 (006) - WATER PUMP, 188 SPARK IGNITION ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A37759
PUMP
ASSY. - water
1шт.
2
A38083
GASKET
-, Serial Range: pump-engine
1шт.
3
A30067
RING
- bearing retainer
1шт.
4
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
4
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C. hex.
1шт.
5
A29433
STUD
- pump mounting (3/8" N.F. x 1")
1шт.
6
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER - lock, 3/8" ext. Shakeproof
3шт.
7
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
8
G11339
PULLEY
- drive
1шт.
9
A37191
BUSHING
SPACER - fan hub
1шт.
10
G45243
FAN
1шт.
11
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
4шт.
12
92-5
LOCK WASHER,5/16"
4шт.
13
G46238
BELT,0.55" W x 17.78" L
Drive, Fan and Alternator 0.55" W x 17.78" L
1шт.
15
A37758
PUMP
ASSY. - water (188) DIESEL ENGINE
1шт.
15
A146584GV
WATER PUMP
Value, Water Pump Assy.
1шт.
15
A146584R
REMAN-WATER PUMP
Reman For New P/N A37758, Assy, Water (188) Diesel Engine
1шт.
15
A146584C
CORE-WATER PUMP
Return Part Number
1шт.
16
A30067
RING
- bearing retainer (188) DIESEL ENGINE
1шт.
17
A38083
GASKET
- pump to engine (188) DIESEL ENGINE
1шт.
18
A29433
STUD
- pump mounting (3/8" N.C. x 1") (188) DIESEL ENGINE
2шт.
19
92-6
LOCK WASHER,3/8"
stud (188) diesel engine 3/8"
2шт.
20
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex. (188) DIESEL ENGINE
2шт.
21
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C. hex. (188) DIESEL ENGINE
1шт.
22
A22317
WASHER
- plain (25/64" I.D. x 11/16 O.D. x 3/64") (188) DIESEL ENGINE
1шт.
23
G11339
PULLEY
- drive (188) DIESEL ENGINE
1шт.
24
A37191
BUSHING
SPACER - fan hub (188) DIESEL ENGINE
1шт.
25
G45243
FAN
(188) DIESEL ENGINE
1шт.
26
13-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
(188) DIESEL ENGINE Hex, 5/16"-18 x 1 1/2", G5
4шт.
27
92-5
LOCK WASHER,5/16"
(188) DIESEL ENGINE 5/16"
4шт.
28
G46238
BELT,0.55" W x 17.78" L
Drive, Fan and Alternator, 188 Diesel Engine 0.55" W x 17.78" L
1шт.
Выбрано товаров: 31
