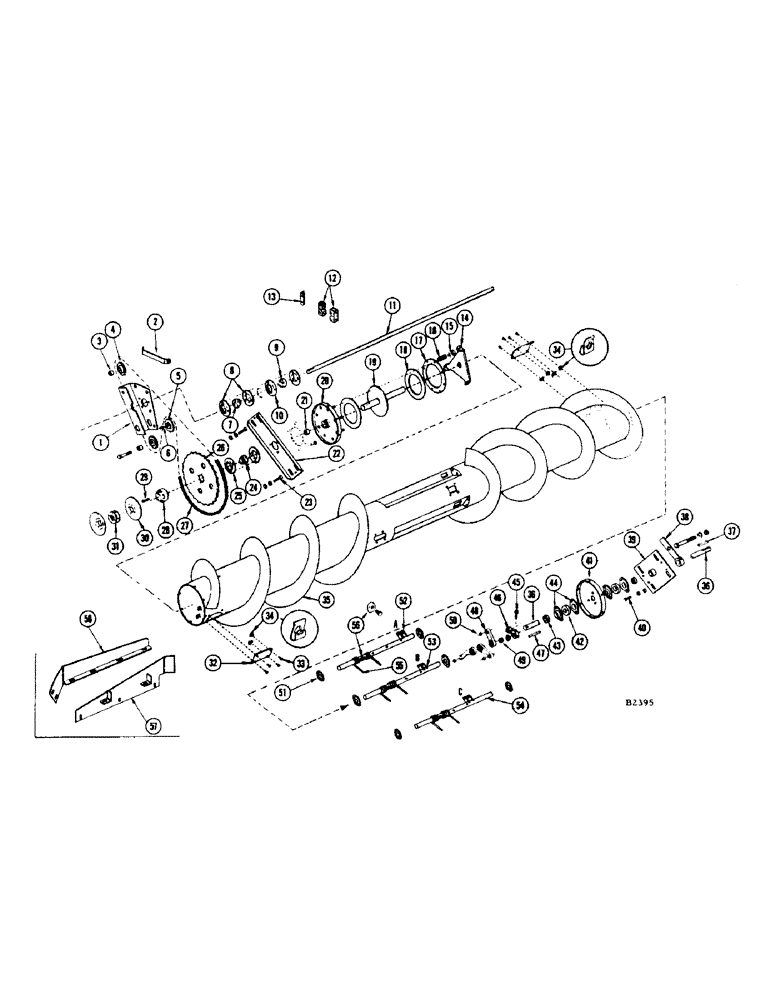

Запчасти Case IH 1150 (068) - HEADER AUGER AND DRIVE (CONTD), 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

31

FH337774

SHIM - sheave, for FH338244

2шт.

FH338392

SHEAVE

HALF - stationary (8-1/2" dia.) Fast reel speed

1шт.

FH338384

SHEAVE

HALF - movable (8-1/2" dia.) Fast reel speed

1шт.

FH241208

SHIM

- spacer for FH338384, FH338392 (Replaced by FH417980 when stocks are exhausted)

3шт.

FH417980

SHIM - spacer for FH338384, FH338392 (Replaces FH241208 when stocks are exhausted)

3шт.

32

F9225

PLATE - cover, auger

6шт.

33

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" type A gimlet pt., pan head tapping

24шт.

34

445406

SPRING NUT,Tinn, 1/4"-14

- speed

24шт.

35

FH338475

AUGER - 12 ft. header

1шт.

35

FH338467

AUGER - 14 ft. header

1шт.

35

FH338459

AUGER - 16 ft. header

1шт.

36

FH311860

SHAFT - control 12' header (Replaced by FH407130 when stocks are exhausted)

1шт.

36

FH407130

SHAFT - control 12' header (#8309801 and after) (Replaces FH311860 when exhausted)

1шт.

36

FH311878

SHAFT - control 14' header (Replaced by FH407148 when stocks are exhausted)

1шт.

36

FH407148

SHAFT - control 14' header (#8309801 and after) (Replaces FH311878 when exhausted)

1шт.

36

FH407155

SHAFT - control 16' header (#8309801 and after)

1шт.

37

FHO61069

X

KEY - timing arm

1шт.

38

FH311720

ARM - timing

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

39

FH339168

MOUNTING - L.H. auger

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

4шт.

95-6

WASHER,3/8"

- flat 3/8"

8шт.

40

FHO72934

BOLT - 3/8" x 2-1/2" N.C. hex., full thread

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

41

FH311845

BULKHEAD - L.H. outer

1шт.

42

1443CKA

BALL BEARING

BEARING

2шт.

43

O3203CK

COLLAR

1шт.

44

O650CB

X

FLANGE - bearing

4шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

6шт.

45

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

BOLT - 3/8" x 2-1/2" N.C. socket hd., nut and L.W.

1шт.

46

FH311852

CRANK ARM - (Before #8309801)

1шт.

46

FH407171

ARM

CRANK ARM - (#8309801 and after)

1шт.

47

FHO61069

X

KEY - crank arm (#8309801 and after)

1шт.

48

FH710657

ARM - control (Before #8309801)

3шт.

49

FH710632

BEARING - (Before #8309801)

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex., nut, L.W. and fl. wshr.

1шт.

FH711804

ARM - control (#8309801 and after)

3шт.

49

B10494

BEARING - (#8309801 and after)

1шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Nut, L.W. and fl. wshr. Hex, 3/4"-10 x 4 1/2", G5

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , str. 1/4"-28 NPT x .54" lg

3шт.

50

FH311910

BUSHING

3шт.

75-524

X

BOLT - 3/8" x 1-1/2" rhd. mach.

3шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" Gripco

3шт.

51

FH308171

BEARING - finger tube

6шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

6шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

52

FH338103

TUBE - finger "A" (Before #8309801)

1шт.

52

FH413104

TUBE - finger "A" (#8309801 and after)

1шт.

53

FH338111

TUBE - finger "B" (Before #8309801)

1шт.

53

FH413112

TUBE - finger "B" (#8309801 and after)

1шт.

54

FH338129

TUBE - finger "C" (Before #8309801)

1шт.

54

FH413120

TUBE - finger "C" (#8309801 and after)

1шт.

55

FH752121

TINE

12шт.

56

FH261024

CLIP

- tine

12шт.

57

FH374793

PADDLE - R.H. AUGER PADDLE ATTACHMENT

1шт.

58

FH374785

PADDLE - L.H. AUGER PADDLE ATTACHMENT

1шт.
