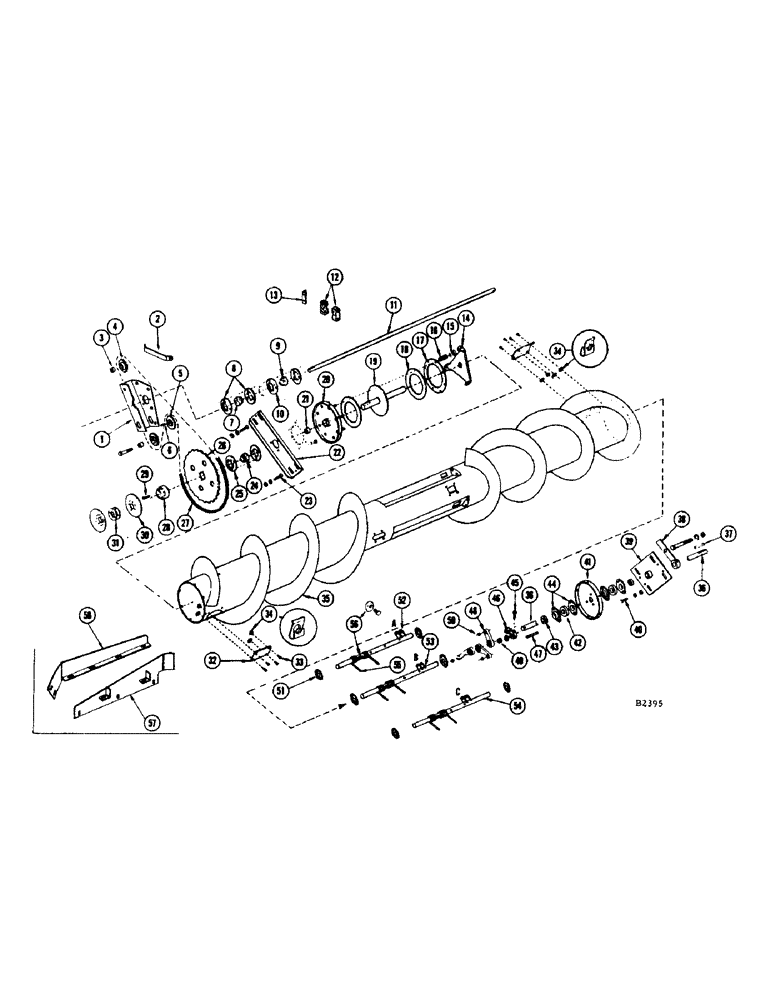

Запчасти Case IH 1150 (066) - HEADER AUGER AND DRIVE, 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

1

FH316828

MOUNTING - bearing

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. and fl. wshr. Short NK, 3/8"-16 x 1", G2

3шт.

2

FH308585

BRACE

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. and fl. wshr. Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

3

FH159459

SPACER - idler

2шт.

4

FHO47142

X

IDLER - chain

2шт.

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Nut and L.W. Hex, 1/2"-13 x 3 1/2", G5

2шт.

95-8

WASHER,1/2"

flat 1/2"

4шт.

5

FHO85886

SPROCKET - auger drive (15T) Standard

1шт.

5

FHO86033

SPROCKET - auger drive (13T) Optional

1шт.

5

FHO86132

SPROCKET - auger drive (17T) Optional

1шт.

6

FHO61424

KEY

- gib

1шт.

7

F51085

BEARING

- power shaft, R.H. end

1шт.

O697CB

X

COLLAR

1шт.

8

O650CB

X

FLANGE - bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

9

F86298

BEARING ASSY

BEARING - power shaft, L.H. end

1шт.

O885CB

COLLAR

1шт.

10

T17277

FLANGE

- bearing

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

3шт.

11

FH287300

SHAFT - power, R.H. - 12 ft.

1шт.

11

FH287318

SHAFT - power, R.H. - 14 ft.

1шт.

11

FH287326

SHAFT - power, R.H. - 16 ft.

1шт.

12

FH760769

BEARING - wood (#8309801 and after 14' and 16' headers)

2шт.

11-672

BOLT (MACHINE)

BOLT - 3/8" x 4-1/2" rhd. sq. nk.

2шт.

13

FH407122

BRACKET - bearing (#8309801 and after 14' and 16' headers)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

14

FH156018

BULKHEAD

1шт.

174-208

SCREW - 3/8" x 3/4" N.F. Phil. rhd. mach., nut and L.W.

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" elastic stop, clutch spring

8шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

8шт.

16

FHO58644

SPRING - clutch

8шт.

17

FH260745

PLATE - pressure, clutch

1шт.

18

FHO27565

DISC

- clutch

2шт.

19

FH260752

PLATE - clutch, with shaft

1шт.

20

FH260729

SUPPORT

BULKHEAD - R.H. outer

1шт.

21

FHO52563

BEARING

1шт.

174-208

SCREW - 3/8" x 3/4" N.F. Phil, rhd. mach., nut and L.W.

6шт.

22

FH337964

MOUNT - R.H. (Replaced by FH371674 when stocks are exh.)

1шт.

22

FH371674

MOUNT - R.H. auger (w/11-616) Replaces FH337964 when stocks are exhausted

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

4шт.

95-6

WASHER,3/8"

- flat 3/8"

8шт.

23

FHO72934

BOLT - 3/8" x 2-1/2" N.C. hex., full thread

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

24

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

O697CB

X

COLLAR

1шт.

25

O650CB

X

FLANGE - bearing

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

3шт.

26

FH338236

SPROCKET

1шт.

27

FHO86330

CHAIN - auger drive (See chain page)

1шт.

28

FH337949

HUB - sprocket

1шт.

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

and L.W. Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

29

FHO61739

KEY

- gib

1шт.

30

FH338244

SHEAVE

HALF - (6-3/4" dia.) Slow reel speed

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.
