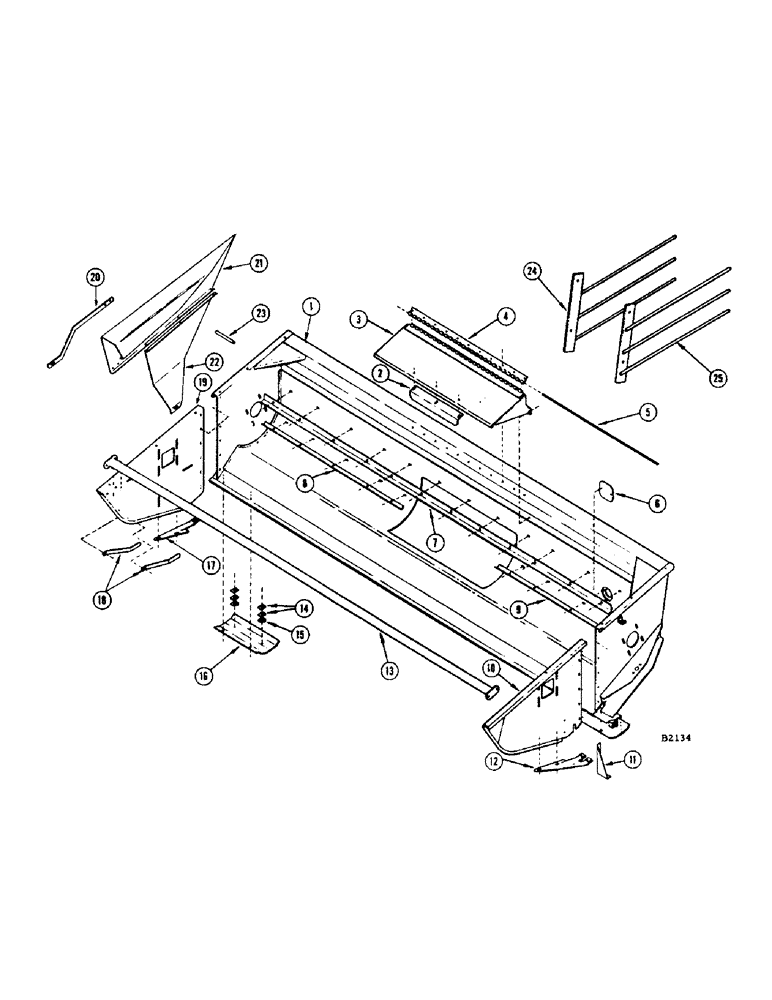

Запчасти Case IH 1150 (056) - HEADER PLATFORM AND DIVIDERS, BEFORE 8262501 (58) - ATTACHMENTS/HEADERS

1

FH292136

PLATFORM - header, 12 ft. (Special order only)

1шт.

1

FH292144

PLATFORM - header, 14 ft. (Special order only)

1шт.

2

FH272609

SHIELD - extension

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

3шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

3шт.

3

FH292102

SHIELD - auger

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

2шт.

4

FHO65284

HINGE - auger shield

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

11шт.

5

FHO65300

PIN - hinge

1шт.

6

FH287847

PLATE - cover

1шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex., nut and L.W.

2шт.

7

FH287771

STRIPPER - top, 12 ft. header

1шт.

7

FH287789

STRIPPER - top, 14 ft. header

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W. (11-12 ft., 13-14 ft.) Short NK, 5/16"-18 x 1", G2

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat (11-12 ft., 13-14 ft.)

1шт.

8

FH287524

STRIPPER - R.H. lower, 12 ft. header

1шт.

8

FH287532

STRIPPER - R.H. lower, 14 ft. header

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut and L.W. (8-12 ft., 10-14 ft.) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat (8-12 ft., 10-14 ft.)

1шт.

9

FH287490

STRIPPER - L.H. lower, 12 ft. header

1шт.

9

FH287508

STRIPPER - L.H. lower, 14 ft. header

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut and L.W. (8-12 ft., 10-14 ft.) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat (8-12 ft., 10-14 ft.)

1шт.

10

FH292045

DIVIDER - L.H.

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut and L.W. Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

11

FH292789

GUSSET - L.H. divider shoe

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 5/16" x 3/4" rhd. sq. nk., nut and L.W.

2шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

1шт.

12

FH288209

SHOE - L.H. divider

1шт.

111-221

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1 1/2", G2

2шт.

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk., nut and L.W.

2шт.

13

FH287714

BAR - lean, 12 ft. header

1шт.

FH287722

BAR - lean, 14 ft. header

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

14

FH271965

SHIM - skid shoe

8шт.

15

FH271957

SHIM - skid

4шт.

73-628

SCREW,Slotted Flat Hd, 3/8"-16 x 1 3/4"

- 3/8" x 1-3/4" flat hd. mach., nut and L.W.

4шт.

16

FH287839

SHOE - skid

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

17

FH288217

SHOE - R.H. divider

1шт.

18

FH262626

STRAP

- cam deflector

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk., nut and L.W.

2шт.

19

FH292060

DIVIDER - R.H.

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1", G2

6шт.

20

FH292508

BRACE - reel shield

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

3шт.

21

FH292029

SHIELD - reel drive

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

5шт.

22

FH292490

EXTENSION - reel shield

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

4шт.

23

FH292524

SPACER - reel shield

1шт.

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

Nut and L.W. Hex, 5/16"-18 x 6", G5

1шт.

24

FH292458

ROD - R.H. windrow forming

1шт.

25

FH292441

ROD - L.H. windrow forming

1шт.

F94828M

HEADER RE-PAN KIT - 12 ft. header

1шт.

F94829M

HEADER RE-PAN KIT - 14 ft. header

1шт.
