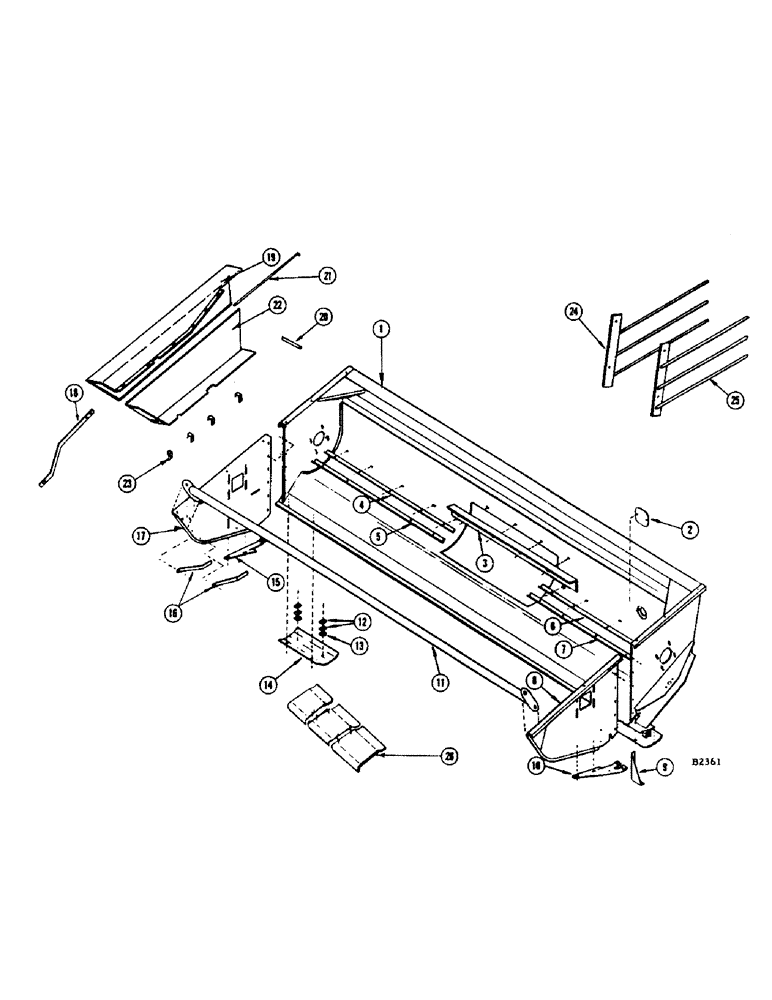

Запчасти Case IH 1150 (052) - HEADER PLATFORM AND DIVIDERS, 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

1

FH339341

PLATFORM - header, 12 ft. (Special order only)

1шт.

1

FH339358

PLATFORM - header, 14 ft. (Special order only)

1шт.

1

FH413310

PLATFORM - header, 16 ft. (Special order only)

1шт.

2

FH287847

PLATE - cover

1шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex., nut and L.W.

2шт.

3

FH316430

STRIPPER - center (Before #8309801)

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut, L.W. and fl. wshr. Short NK, 5/16"-18 x 1", G2

5шт.

4

FH316281

STRIPPER - right upper (12 ft.)

1шт.

4

FH316307

STRIPPER - right upper (14 ft.)

1шт.

4

FH316380

STRIPPER - right upper (16 ft.)

1шт.

5

FH339150

STRIPPER - right lower (12 ft.)

1шт.

5

FH339135

STRIPPER - right lower (14 ft.)

1шт.

5

FH339119

STRIPPER - right lower (16 ft.)

1шт.

6

FH316273

STRIPPER - left upper (12 ft.)

1шт.

6

FH316299

STRIPPER - left upper (14 ft.)

1шт.

6

FH316372

STRIPPER - left upper (16 ft.)

1шт.

7

FH339143

STRIPPER - left lower (12 ft.)

1шт.

7

FH339127

STRIPPER - left lower (14 ft.)

1шт.

7

FH339101

STRIPPER - left lower (16 ft.)

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. (16-12', 20-14', 24-16') Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

8

FH315630

DIVIDER - L.H.

1шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Nut and L.W.

6шт.

9

FH292789

GUSSET - L.H. divider shoe

1шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Nut, L.W. and flt. wshr.

2шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut, L.W. and flt. wshr. Short NK, 3/8"-16 x 1", G2

1шт.

10

FH288209

SHOE - L.H. divider

1шт.

11

FH287714

BAR - lean, 12 ft.

1шт.

11

FH287722

BAR - lean, 14 ft.

1шт.

11

FH287730

BAR - lean, 16 ft.

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

FH271965

SHIM - skid shoe

8шт.

13

FH271957

SHIM - skid shoe

4шт.

14

FH287839

SHOE - skid

2шт.

15

FH288217

SHOE - R.H. divider

1шт.

16

FH262626

STRAP

- cam deflector

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk., nut and L.W.

2шт.

17

FH371443

DIVIDER - R.H.

1шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Nut, L.W. and flt. wshr.

6шт.

18

FH315739

BRACE - reel shield

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut, L.W. and flt. whr.

3шт.

19

FH371401

SHIELD

- reel drive

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut, L.W. and flt. wshr.

6шт.

20

FH292524

SPACER - reel shield

1шт.

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

Nut and L.W. Hex, 5/16"-18 x 6", G5

1шт.

21

FH371435

PIN - hinge, reel shield

1шт.

22

FH371476

EXTENSION - reel shield

1шт.

23

FH337931

CLIP - (3 used #8309801 and after)

4шт.

24

FH292458

ROD - R.H. windrow forming (w/o hay conditioner)

1шт.

25

FH292441

ROD - L.H. windrow forming (w/o hay conditioner)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut, L.W. and flt. wshr. Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

26

FH338962

PAN - filler, 12 ft. (Wild hay kit)

1шт.

26

FH338954

PAN - filler, 14 ft. (Wild hay kit)

1шт.

26

FH338947

PAN - filler, 16 ft. (Wild hay kit)

1шт.
