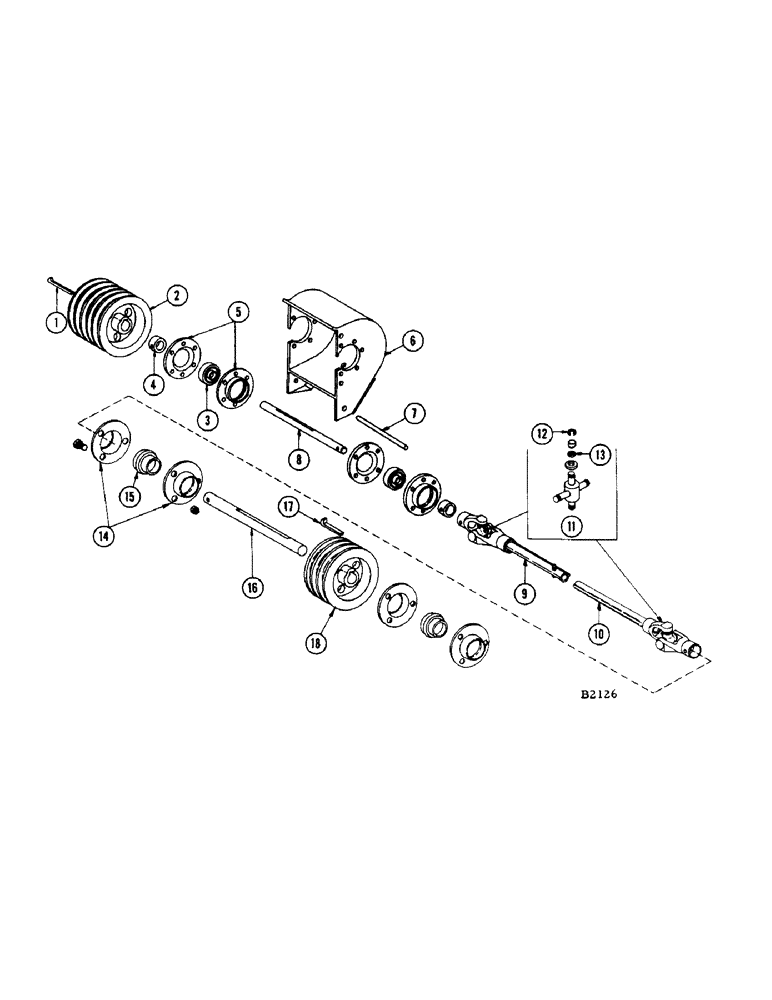

Запчасти Case IH 1150 (028[A]) - HEADER DRIVE UNIVERSAL JOINT SHAFT (58) - ATTACHMENTS/HEADERS

1

FHO61416

KEY - gib

1шт.

2

FH246686

SHEAVE - drives header universal joint shaft

1шт.

3

F86298

BEARING ASSY

BEARING

2шт.

4

O885CB

COLLAR

2шт.

5

FH264036

FLANGE

4шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) L.W. (92-6)

10шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

2шт.

6

FH267864

SUPPORT - shaft bearing

1шт.

7

FH267823

SPACER - support

1шт.

BOLT - 1/2" x 7-1/2" N.C. hex. (13-8120) Nut (25-108) and L.W. (92-8)

1шт.

8

FH292821

SHAFT - drives header universal joint

1шт.

9

FH751305

UNIVERSAL JOINT - square shaft

1шт.

SCREW - 3/8" x 2-1/4" soc. hd. cap (61-636) Nut (129-103) and L.W. (192-21)

1шт.

10

FH751313

UNIVERSAL JOINT - square tube

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

2шт.

SCREW - 3/8" x 2-1/4" soc. hd. cap (61-636) Nut (129-103) and L.W. (192-21)

1шт.

11

B13275

KIT

- universal joint

2шт.

12

B13277

SNAP RING - center cross

4шт.

13

B13276

OIL SEAL - center cross

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8"-67-1/2 degrees

4шт.

14

T27207

FLANGED BEARING

FLANGE - bearing

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (129-103) and L.W. (192-21)

6шт.

15

F86298

BEARING ASSY

BEARING

2шт.

O885CB

COLLAR - bearing (Not shown)

2шт.

16

FH291666

JACKSHAFT - header

1шт.

17

FHO61416

KEY - (1/4" x 1/4" x 2-3/4")

1шт.

18

FH291492

SHEAVE - (7-7/8" O.D. triple groove) Drives header universal joint shaft

1шт.
