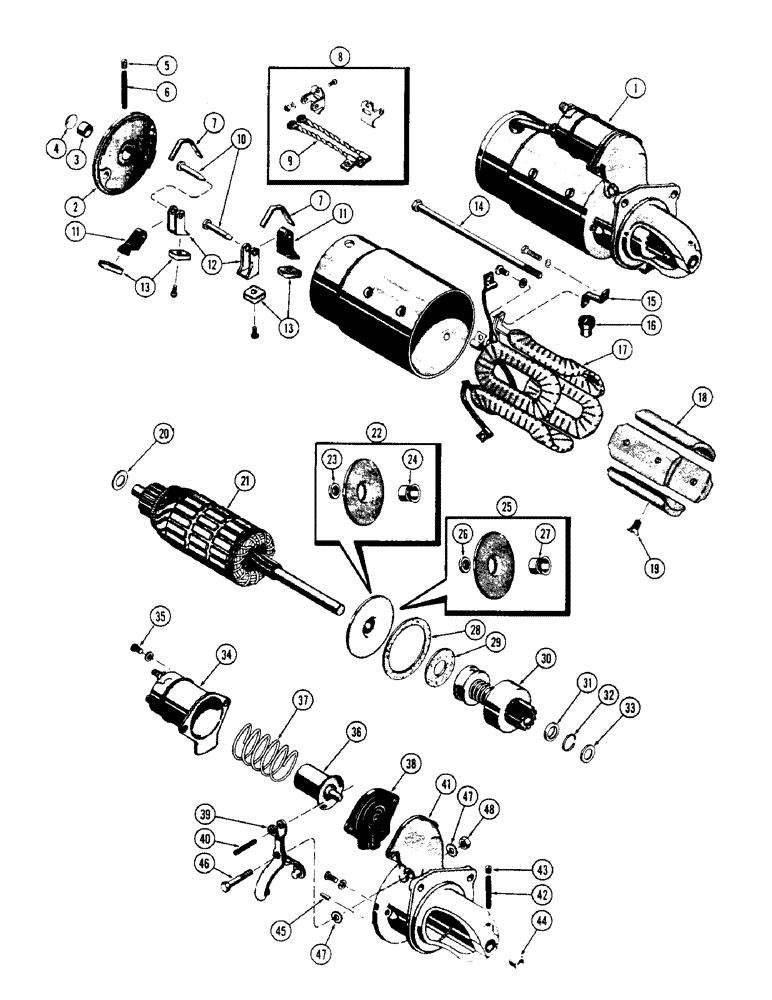

Запчасти Case IH 1150 (160) - A36583 AND G44927 STARTERS, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A36583
STARTER MOTOR
STARTER ASSY. (Delco-Remy #1107583)
1шт.
1
G44927
STARTER ASSY. (Delco-Remy #1107516)
1шт.
2
A25304
FRAME
HEAD ASSY. - commutator end
1шт.
3
R15020
BUSHING
- armature shaft
1шт.
4
NSS
NOT SOLD SEPARAT
PLUG - expansion
1шт.
5
NSS
NOT SOLD SEPARAT
PLUG - oil wick hole
1шт.
6
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
7
A25359
SPRING
- brush pressure
2шт.
8
A25379
KIT
SUPPORT KIT - brush holder
1шт.
9
A25363
ELECTRICAL WIRE
LEAD - brush ground
2шт.
10
NSS
NOT SOLD SEPARAT
PIN - brush holder
2шт.
11
R15027
HOLDER
- brush, insulated
2шт.
12
A40217
HOLDER
- brush, ground
2шт.
13
A25356
BRUSH, COMMUTATOR
BRUSH
4шт.
14
A25552
BOLT
BOLT - thru
2шт.
15
A40225
CONNECTOR, ELEC
CONNECTOR - solenoid
1шт.
16
NSS
NOT SOLD SEPARAT
GROMMET - connector
1шт.
17
A25319
COIL
ASSY. - field
1шт.
18
A25391
SHOE
- pole
4шт.
19
NSS
NOT SOLD SEPARAT
SCREW - pole shoes
8шт.
20
NSS
NOT SOLD SEPARAT
WASHER - brake, comm. end
1шт.
21
A40219
ARMATURE
1шт.
22
A25331
X
PLATE ASSY. - ctr. brg. (Used w/G44927 starter)
1шт.
23
NSS
NOT SOLD SEPARAT
SEAL - oil, center plate
1шт.
24
NSS
NOT SOLD SEPARAT
BEARING - center plate
1шт.
25
A40223
PLATE
ASSY. - ctr. brg. (Used w/A36583 starter)
1шт.
26
A40228
OIL SEAL
SEAL - oil (3/4 x 1-1/4 x 1/4")
1шт.
27
NSS
NOT SOLD SEPARAT
BEARING - center plate
1шт.
28
NSS
NOT SOLD SEPARAT
GASKET - center bearing
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - thrust, center bearing
1шт.
30
A25337
X
DRIVE ASSY. - Bendix
1шт.
31
R15049
COLLAR
- stop, starter drive
1шт.
32
R15048
RING
- snap, collar ret.
1шт.
33
A25385
WASHER
- thrust, starter drive
1шт.
34
G44891
SOLENOID
ASSY.
1шт.
35
NSS
NOT SOLD SEPARAT
SCREW - solenoid to drive hsg.
2шт.
36
A40218
PLUNGER
- solenoid
1шт.
37
A40221
SPRING
- plunger return
1шт.
38
A25410
BOOT
COVER - solenoid boot
1шт.
39
A25397
LEVER
- shift (For G44927)
1шт.
39
A40220
LEVER
- shift (For A36583)
1шт.
40
A25399
X
PIN - shift, Serial Range: lever-plunger
1шт.
41
A25351
HOUSING ASSY. - drive end (Used w/G44927 starter)
1шт.
42
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
43
NSS
NOT SOLD SEPARAT
PLUG - oil wick hole
1шт.
44
A25389
BUSHING
- housing
1шт.
41
A40224
FRAME
HOUSING ASSY. - drive end (Used w/A36583 starter)
1шт.
42
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
43
NSS
NOT SOLD SEPARAT
PLUG - oil wick hole
1шт.
44
A40227
BUSHING
- housing
1шт.
45
NSS
NOT SOLD SEPARAT
PIN - drive end locating
1шт.
46
A40520
BOLT
- pivot, shift lever
1шт.
47
NSS
NOT SOLD SEPARAT
WASHER - pivot stud
2шт.
48
NSS
NOT SOLD SEPARAT
NUT - pivot stud
1шт.
Выбрано товаров: 54
