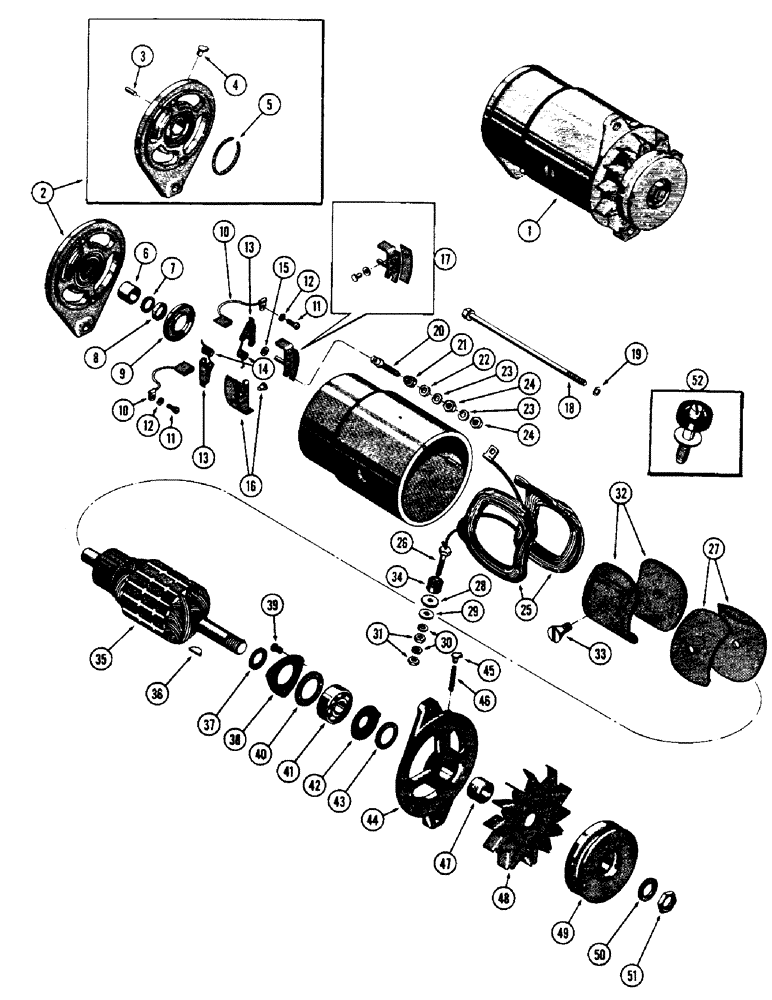

Запчасти Case IH 1150 (156) - D27034 GENERATOR, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

ASSY. (Delco-Remy #1100404)

1шт.

2

A40679

HOUSING

ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - head locating

1шт.

4

NSS

NOT SOLD SEPARAT

OILER

1шт.

5

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

6

A25459

BUSHING

- armature shaft

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - comm. end (Felt)

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - felt washer retainer

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH SET (Set of 2)

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead screw

2шт.

13

R15090

ARM

- brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm pressure

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - brush arm spacer

2шт.

16

A40703

NOZZLE HOLDER

HOLDER KIT - brush, grounded

1шт.

17

A40704

NOZZLE HOLDER

HOLDER KIT - brush, insulated

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.

20

A40701

STUD

- armature terminal

1шт.

21

R16147

BUSHING

- arm. term. insulating

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - arm. term.

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, arm. term.

2шт.

24

NSS

NOT SOLD SEPARAT

NUT - arm. term.

2шт.

25

A25438

X

COIL ASSY. - field

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION - field coil

2шт.

28

NSS

NOT SOLD SEPARAT

WASHER - field term., insulating (Order ref. 52)

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - field term.

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock, field term.

2шт.

31

NSS

NOT SOLD SEPARAT

NUT - field term.

2шт.

32

A40700

SHOE - pole

2шт.

33

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - field term., insulating (See ref. 52)

1шт.

35

A25428

ARM ASSY.

ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Armature shaft #5, 1/8" x 5/8", HT

1шт.

37

NSS

NOT SOLD SEPARAT

SPACER - bearing retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - bearing retainer

3шт.

40

R16170

GASKET

- bearing retainer

1шт.

41

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - felt washer

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER - drive end (Felt)

1шт.

44

A25442

HOUSING

ASSY. - drive end

1шт.

45

NSS

NOT SOLD SEPARAT

OILER

1шт.

46

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

- ventilating

1шт.

49

A25454

PULLEY

- generator drive

1шт.

50

A16171

WASHER - lock, pulley nut

1шт.

51

A25546

NUT

- pulley ret.

1шт.

52

A40702

STUD

KIT - field terminal

1шт.
