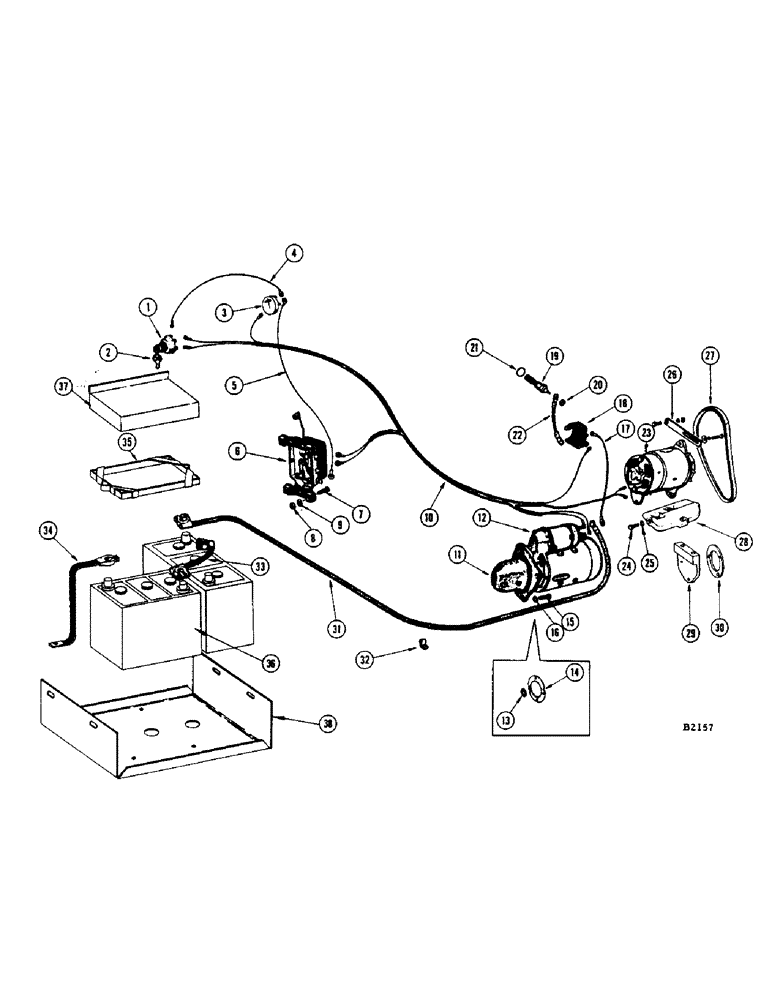

Запчасти Case IH 1150 (108) - ELECTRICAL SYSTEM, DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

2

A24509

KEY

- ignition switch (Set of 2)

2шт.

3

A26729

ELECTRICAL GAUGE

AMMETER

1шт.

4

FH720615

WIRE - ignition, Serial Range: switch-ammeter

1шт.

5

FH720631

WIRE - ammeter to voltage regulator

1шт.

6

A35233

REGULATOR

- voltage

1шт.

7

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

4шт.

8

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

FH720607

HARNESS - wire

1шт.

RED WIRE - ammeter to starting solenoid

1шт.

GREEN WIRE - ignition switch to heater solenoid

1шт.

ORANGE WIRE - ignition switch to starting solenoid

1шт.

BLACK WIRE - voltage regualtor to generator

1шт.

YELLOW WIRE - voltage regulator to genera, Serial Range: -generator

1шт.

11

G44927

STARTING MOTOR

1шт.

12

A35350

X

SOLENOID

1шт.

13

G46911

OIL RESERVOIR

OIL SEAL - middle bearing

1шт.

14

G46912

GASKET

- middle bearing plate

1шт.

15

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

A36896

CABLE PULLING GRIP

WIRE - starter solenoid to heater solenoid

1шт.

18

A21481

SOLENOID

- heater

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. Keps

1шт.

19

A24396

X

HEATER - manifold

1шт.

20

129-503

NUT,1/4"-20, Brass

1шт.

21

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

22

A21482

CABLE

-, Serial Range: solenoid-heater

1шт.

23

D27034

GENERATOR

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

G11345

STRAP

- generator adjusting

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. and fl. wshr. Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

27

G46238

BELT,0.55" W x 17.78" L

Generator, Fan and Pump 0.55" W x 17.78" L

1шт.

28

G2131

X

BRACKET - generator mounting

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

and L.W. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex and L.W.

1шт.

29

G2098

BRACKET - adapter

1шт.

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex. and L.W.

3шт.

30

A30042

GASKET

- generator adapter bracket

1шт.

31

A21486

CABLE

- battery to solenoid (#8266001 and after)

1шт.

FHO41723

CABLE - battery to solenoid (Before #8266001)

1шт.

32

FH251348

CLAMP

1шт.

33

FH720425

CABLE - jumper (#8266001 and after)

1шт.

FH720672

CABLE - jumper (Before #8266001)

1шт.

34

A27985

CABLE

- battery ground (#8266001 and after)

1шт.

FHO41715

CABLE - battery ground (Before #8266001)

1шт.

35

FHO41020

HOLD DOWN - battery

2шт.

13-5136

BOLT - 5/16" x 8-1/2" N.C. hex., nut and fl. wshr.

2шт.

36

G44890

BATTERY - 6 volt

2шт.

37

FH315499

COVER - battery (Before #8266001)

1шт.

38

FH339473

BOX - battery (#8266001 and after)

1шт.
