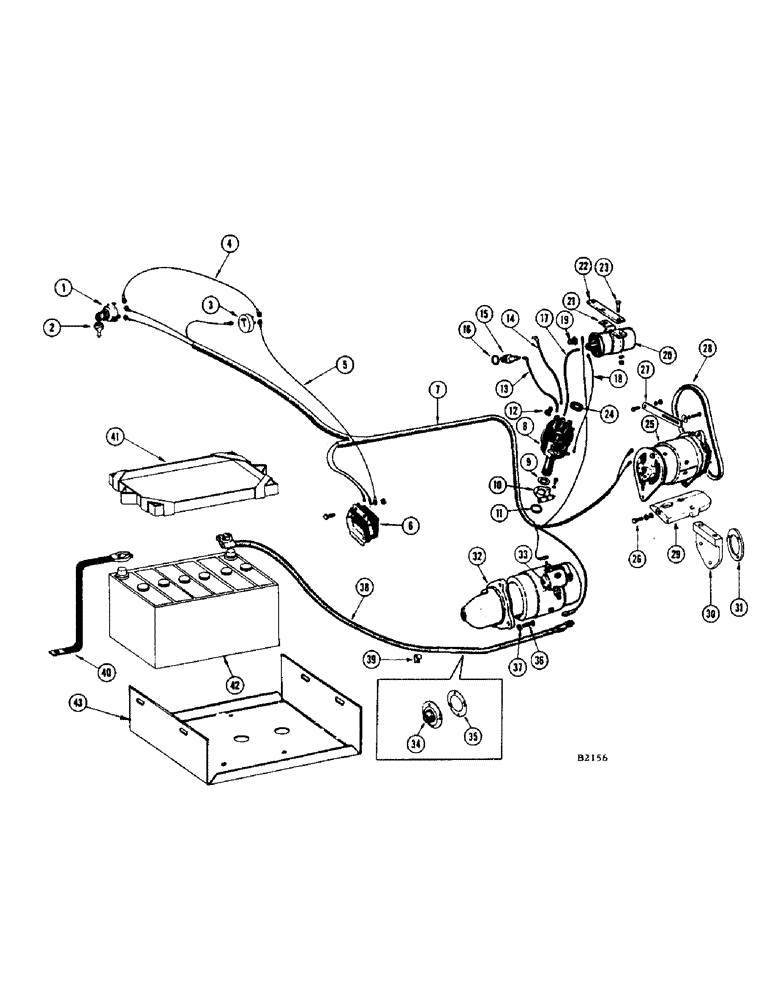

Запчасти Case IH 1150 (106) - ELECTRICAL SYSTEM, GASOLINE ENGINE (55) - ELECTRICAL SYSTEMS

1

A24511

SWITCH

- ignition w/key (Gas)

1шт.

2

A24509

KEY

- ignition switch (Set of 2)

2шт.

3

A26729

ELECTRICAL GAUGE

AMMETER

1шт.

4

FH720615

WIRE - ignition, Serial Range: switch-ammeter

1шт.

5

FH720631

WIRE - ammeter to voltage regulator

1шт.

6

F84740

REGULATOR - voltage

1шт.

*

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

7

FH720607

HARNESS - wire

1шт.

*

RED WIRE -, Serial Range: ammeter-solenoid

1шт.

*

GREEN WIRE - ignition switch to coil

1шт.

*

ORANGE WIRE - ignition switch to solenoid

1шт.

*

BLACK WIRE - voltage regulator to generator

1шт.

*

YELLOW WIRE - voltage regulator to genera, Serial Range: -generator

1шт.

8

A30358

DISTRIBUTOR

1шт.

9

A30080

THRUST WASHER

- thrust, advance arm

1шт.

10

A29989

ARM

- advance

1шт.

*

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

11

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor to block

1шт.

12

A29338

COVER

NIPPLE - spark plugs and coil wire at distributor

5шт.

13

A30018

CABLE

WIRE - spark plug #2 and #3

2шт.

14

A29994

CABLE

WIRE - spark plug #1 and #4

2шт.

15

G44840

SPARK PLUG

- 18 MM

4шт.

16

G46839

GASKET

- plug

1шт.

17

CASA30038

CABLE

WIRE -, Serial Range: coil-distributor

1шт.

18

G13085

ELECTRICAL WIRE

WIRE -, Serial Range: coil-distributor

1шт.

19

G46803

BOOT

NIPPLE - coil, at coil

1шт.

20

A33438

COIL

- ignition

1шт.

21

G46106

BRACKET

CLAMP - coil

1шт.

*

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

G11705

BRACKET

- coil mounting

1шт.

23

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

24

A30109

WASHER

GROMMET - wire harness

1шт.

25

A36279

X

GENERATOR - (Use F21239)

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

and L.W. Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

*

G11344

STRAP - generator adjusting

1шт.

*

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.C. hex., nut and L.W.

1шт.

28

G46238

BELT,0.55" W x 17.78" L

Generator, Fan and Pump 0.55" W x 17.78" L

1шт.

29

G2131

X

BRACKET - generator mounting

1шт.

*

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

and L.W. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

*

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex and L.W.

1шт.

30

G2098

BRACKET - adapter

1шт.

*

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex. and L.W.

3шт.

31

A30042

GASKET

- mounting bracket

1шт.

32

G44888

X

STARTING MOTOR

1шт.

33

A20145

X

SOLENOID

1шт.

34

G45478

PLATE

- bearing and oil seal

1шт.

35

G46910

GASKET

- bearing plate

1шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

38

A21486

CABLE

- battery to solenoid (#8266001 and after)

1шт.

*

FH720680

CABLE - battery (Before #8266001)

1шт.

39

FH251348

CLAMP - cable

1шт.

40

A27985

CABLE

- battery ground (#8266001 and after)

1шт.

*

FHO41715

CABLE - battery ground (Before #8266001)

1шт.

41

FHO41616

HOLD DOWN - battery

1шт.

*

13-5136

BOLT - 5/16" x 8-1/2" N.C. hex., nut and fl. wshr.

2шт.

42

G44805

X

BATTERY - 12 volt (Dry)

1шт.

43

FH339473

BOX - battery (#8266001 and after)

1шт.
