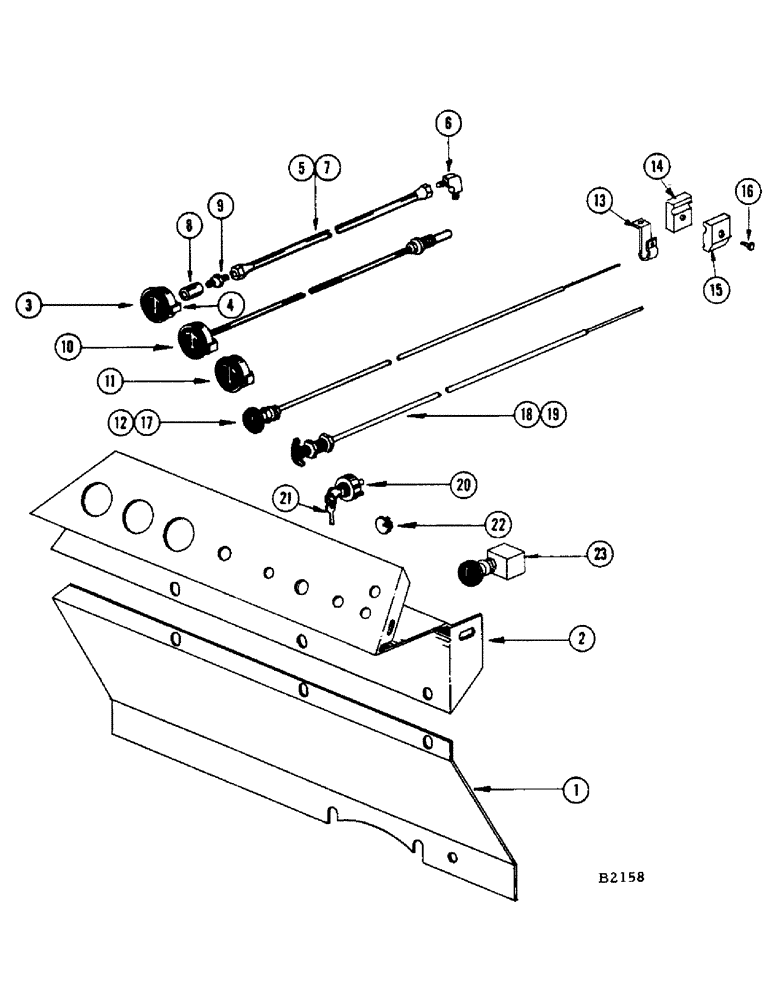

Запчасти Case IH 1150 (096) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

FH291500

MOUNTING - panel (Gas engine)

1шт.

FH293324

MOUNTING - panel (Diesel engine)

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

2

FH291526

PANEL - instrument

1шт.

3

A30326

GAUGE

- oil pressure (Gas engine)

1шт.

G45317

X

GAUGE - oil pressure (Diesel engine)

1шт.

4

G46227

CLAMP - oil pressure gauge

1шт.

225-14112

NUT,#12-24

- #12 hex., mach. screw

2шт.

5

FH379800

TUBE - oil gauge (Gas engine) #8266001 and after

1шт.

FH379818

TUBE - oil gauge (Diesel engine) #8266001 and after

1шт.

6

FH746388

FITTING - elbwo (#8266001 and after)

2шт.

7

FH299479

TUBE - oil gauge (Gas engine) Before #8266001

1шт.

222-830

NUT - 1/8" flared

2шт.

FH291591

TUBE - oil gauge (Diesel engine) Before #8266001

1шт.

222-830

NUT - 1/8" flared

2шт.

8

221-326

COUPLING,Pipe, 1/8" NPT

- 1/8" NPTF (Before #8266001)

1шт.

9

222-800

UNION - 1/8" SAE x 1/8" PTF flared half (Before #8266001)

1шт.

10

11284

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

11

A26729

ELECTRICAL GAUGE

AMMETER

1шт.

12

FH720599

CONTROL

- throttle (Gas engine)

1шт.

13

FH293563

BRACKET - throttle control housing (Gas engine)

1шт.

14

FH294108

CLAMP - throttle control (Gas engine)

1шт.

15

FH294082

CLAMP - throttle control (Gas engine)

1шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

17

FH720573

CONTROl - throttle (Diesel engine)

1шт.

FH299818

BRACKET - throttle control housing (Diesel engine)

1шт.

18

FH720581

CONTROL - choke (Gas engine)

1шт.

19

FH720565

SHUT OFF - fuel (Diesel engine)

1шт.

FH237131

CLAMP - shut-off (Diesel engine)

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

L.W. and fl. wshr. Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

20

A24511

SWITCH

- ignition w/key (Gas engine)

1шт.

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

21

A24509

KEY

- ignition switch (Set of 2)

2шт.

22

FH720235

BUTTON - snap in (Light switch opening)

1шт.

23

FHO70235

FLASHER SWITCH

1шт.
