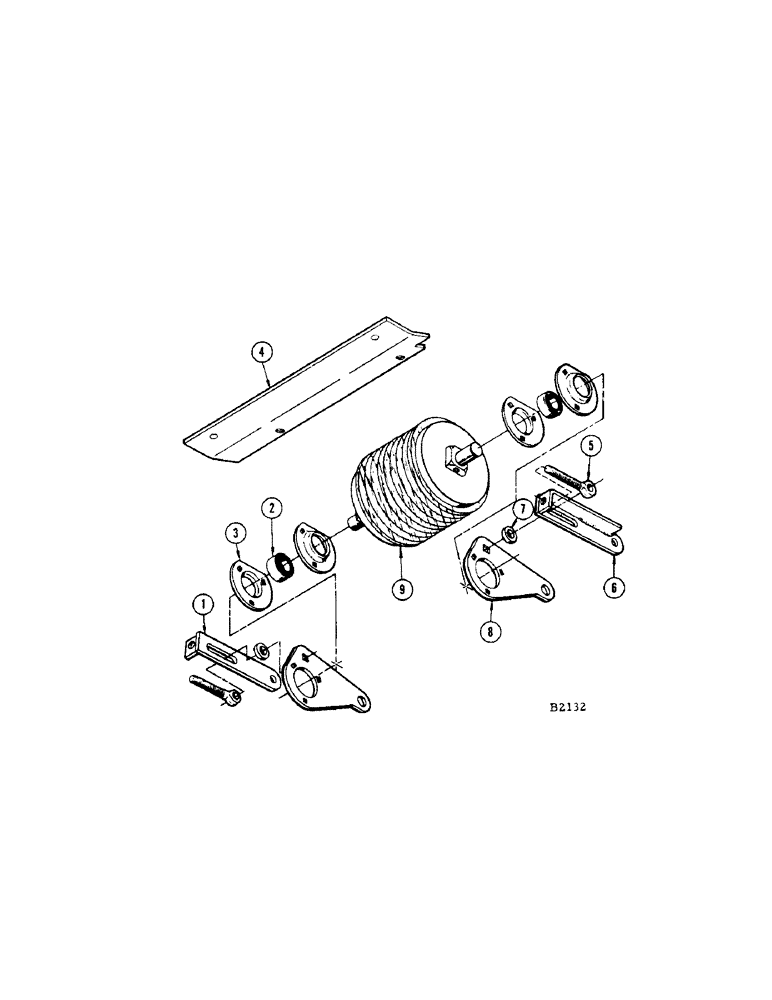

Запчасти Case IH 1150 (050) - GAUGE WHEEL ATTACHMENT (44) - WHEELS

1

FH294041

LINK - adjusting, L.H.

2шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (111-510) Nut (129-105) and L.W. (192-23)

2шт.

BOLT - 5/8" x 1-1/4" N.C. hex. (113-606) Nut (129-107) and L.W. (192-25)

2шт.

2

3074CSA

BALL BEARING

- axle

4шт.

F62108

COLLAR

- for 3074CSA bearing (Not shown)

4шт.

3

O6332CH

FLANGE - for 3074CSA bearing

8шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) Nut (129-102) and L.W. (192-20)

12шт.

4

FH292011

SHOE - skid

2шт.

BOLT - 3/8" x 3/4" (13-206) L.W. (192-21) Fl. wshr. (195-525)

4шт.

SCREW - 3/8" x 1" fl. hd. mach. (73-616) Nut (129-103) and L.W. (192-21)

4шт.

5

FH291955

SPECIAL BOLT

BOLT - draw, adjustable links

4шт.

NUT - 1/2" N.C. hex. (25-108)

4шт.

NUT - 1/2" N.C. jam (25-148)

2шт.

6

FH294058

LINK - adjustable, R.H.

2шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-510) Nut (129-105) and L.W. (192-23)

2шт.

BOLT - 5/8" x 1-1/4" N.C. hex. (113-606) Nut (129-107) and L.W. (192-25)

2шт.

7

FH291948

SPACER - (1-1/4" O.D. x 9/32" long) Between links and arms

4шт.

8

FH294066

ARM - pivot

4шт.

BOLT - 1/2" x 2-1/4" rhd. sq. nk. (11-836) Nut (25-108) and L.W. (92-8) Fl. wshr. (95-8)

4шт.

9

FHO27755

WHEEL - gauge (Replaces FHO26310)

2шт.
