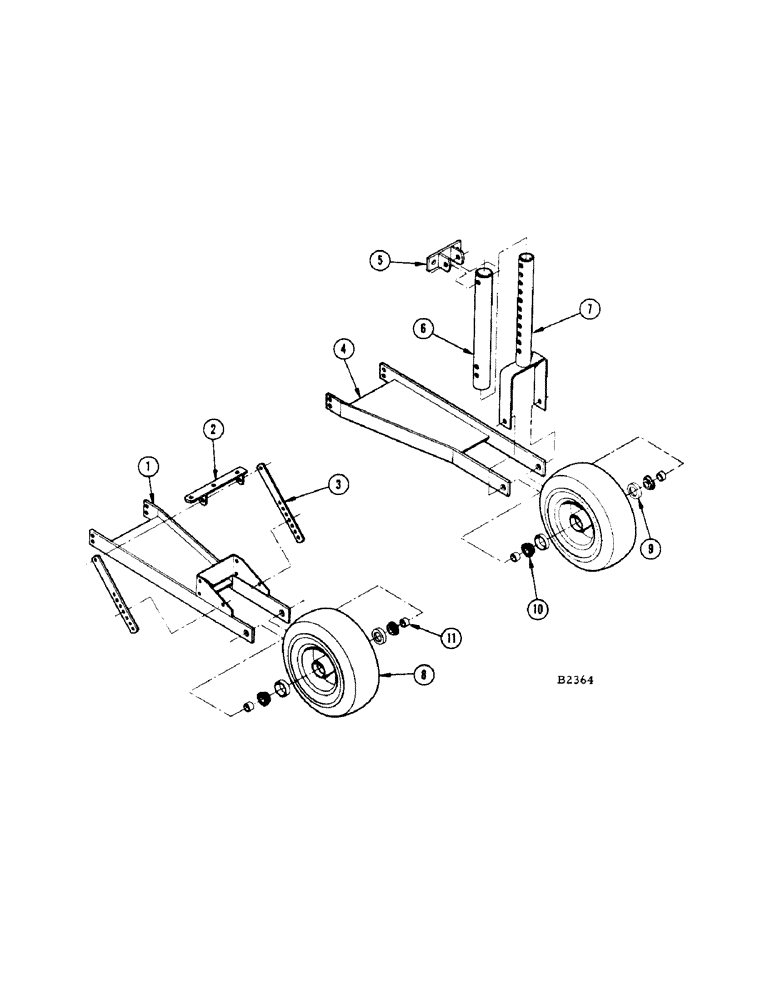

Запчасти Case IH 1150 (048) - 4 INCH TO 10 INCH GAUGE WHEEL ATTACHMENT (44) - WHEELS

1

FH337352

FORK - L.H.

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk., nut and L.W.

2шт.

2

FH337444

BRACKET - L.H. support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

3

FH337519

STRAP

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

4

FH337360

FORK - R.H.

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk., nut and L.W.

2шт.

5

FH337410

BRACKET - R.H. support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

FH337501

TUBE - support

1шт.

FH763110

PIN

1шт.

7

FH337477

FORK - support

1шт.

FHO63883

PIN

1шт.

8

FHO26476

RIM AND TIRE ASSEMBLY

2шт.

9

B12410

BEARING, CUP,1.782" OD

CUP - bearing

2шт.

10

FH711044

BEARING

CONE - bearing

4шт.

11

FH337527

SPACER

4шт.

13-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- 3/4" x 8" N.C. hex.

1шт.

13-12144

CAPSCREW,Hex, 3/4" - 10 x 9", Gr 5

BOLT - 3/4" x 9" N.C. hex.

1шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

4шт.
