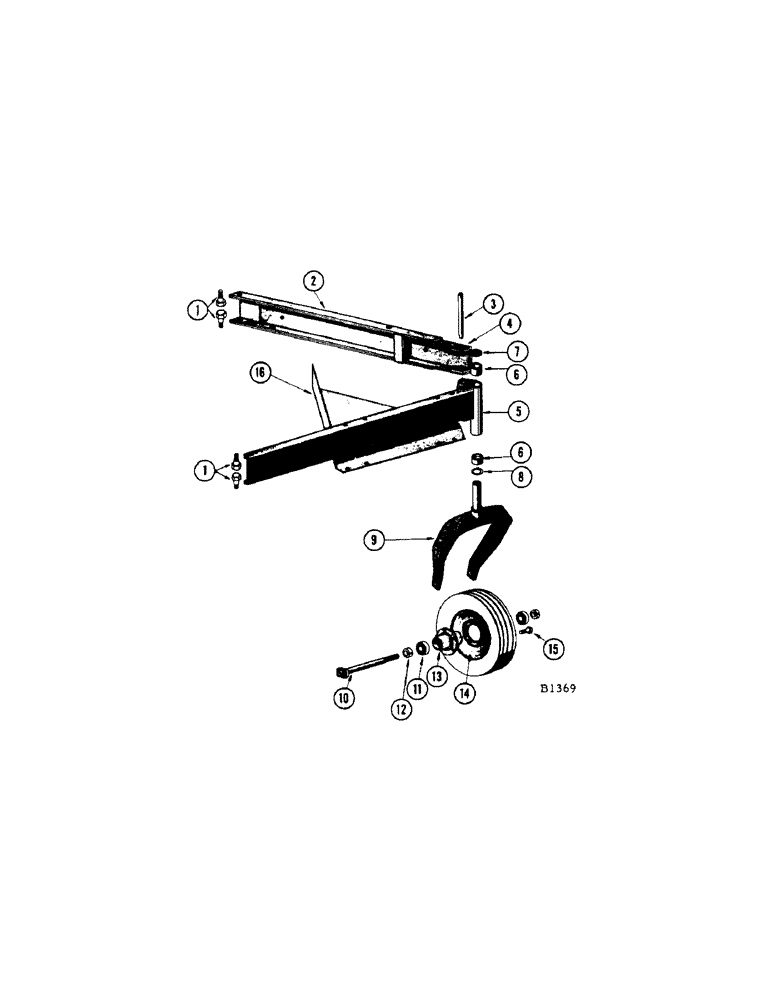

Запчасти Case IH 1150 (046) - REAR WHEEL AND WEIGHT BOX, BEFORE 8266001 (44) - WHEELS

1

FHO66217

BOLT

4шт.

NUT - 7/8" N.C. hex. (25-1014) L.W. (92-14)

4шт.

2

FH144584

CHANNEL - right front, tail wheel

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (113-607) Nut (129-107) and L.W. (192-25)

2шт.

WASHER - 5/8" flat (195-541)

2шт.

3

FH117275

PIN - tail

1шт.

4

FH135608

CHANNEL - R.H. rear (Replaced by FH413666 when stocks are exhausted)

1шт.

FH413666

CHANNEL - R.H. rear (Replaces FH135608 when stocks are exhausted)

1шт.

5

FH315523

BEARM - left tail box (Replaces FH267765 when stock is exhausted) (Replaced by FH413674 when stock is exh.

1шт.

6

FH312462

BUSHING - (Use FH337659 when stocks are exhausted)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 strt.

2шт.

FH267765

BEAM - left, tail box (Replaced by FH315523 when stock is exhausted)

1шт.

FH288993

BUSHING - upper, wheel fork

1шт.

FH135921

BUSHING - lower, wheel fork

1шт.

7

FH134668

CAP - fork

1шт.

8

FH134676

SHIM - wear, wheel fork

1шт.

9

FH220129

FORK - rear wheel

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (113-607) L.W. (192-25)

1шт.

10

FH220103

AXLE - rear wheel

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

1шт.

NUT - 1" N.F. hex. jam (129-170)

2шт.

11

3074CSA

BALL BEARING

- w/collar - wheel hub

2шт.

12

F62108

COLLAR

- for 3074 CSA bearing

2шт.

13

F2428

HUB - rear wheel

1шт.

14

FHO26047

WHEEL - rear (For 7:60-15 implement tire)

1шт.

15

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

5шт.

16

FH268433

BOX - weight

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) Lock nut (131-508)

6шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Lock nut (131-508)

2шт.
