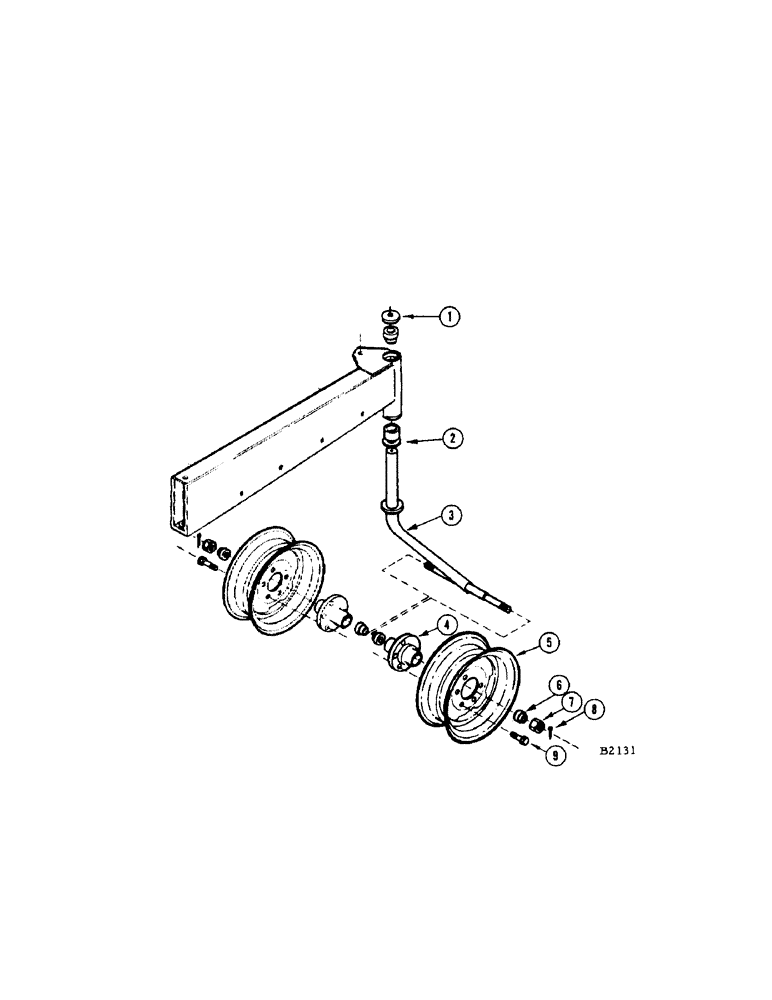

Запчасти Case IH 1150 (046[A]) - DUAL REAR WHEEL ATTACHMENT BEFORE 8266001 (44) - WHEELS

1

FH134668

CAP - tail shaft

1шт.

2

FH134676

SHIM - wear, tail shaft

1шт.

3

FH294264

TAIL SHAFT - rear wheel

1шт.

BOLT - 5/8" x 1-1/2" N.C. hex. (113-607) L.W. (192-25)

1шт.

4

F2428

HUB - rear wheel

2шт.

5

FHO26047

WHEEL - rear (For 7:60-15 implement tire)

2шт.

6

O4306CH

X

BEARING - (Less collar) Wheel hub

4шт.

FHO52316

BUSHING - 1" x 10 ga. mach.

2шт.

7

129-270

NUT

- 1" N.F. slotted hex. jam

2шт.

8

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tail shaft nut 1/8" x 1 1/2"

2шт.

9

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

10шт.
