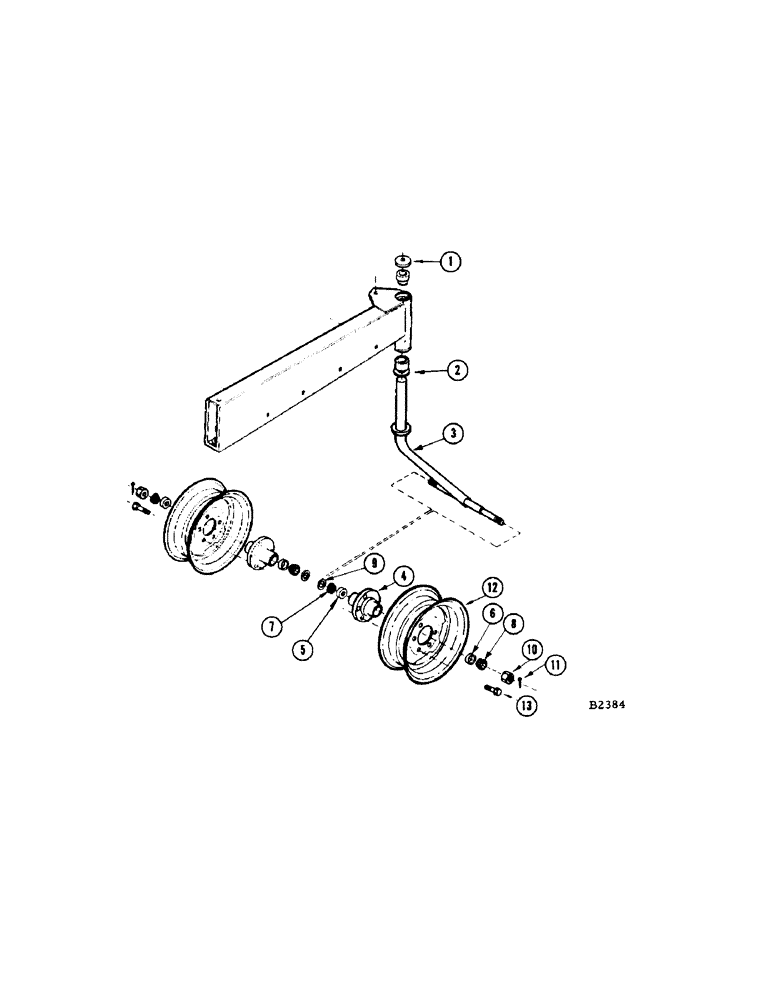

Запчасти Case IH 1150 (044[A]) - DUAL REAR WHEEL 8266001 AND AFTER (44) - WHEELS

1

FH134668

CAP - tail shaft

1шт.

2

FH134676

SHIM - wear

1шт.

3

FH384305

TAILSHAFT - dual rear wheel

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

FH384347

HUB - wheel

2шт.

5

G57451

BEARING, CUP

CUP - bearing, inner

1шт.

6

FHO50104

CUP

- bearing, outer

1шт.

7

G57452

ROLLER BEARING

CONE - bearing, inner

2шт.

8

FHO50112

BEARING

CONE - bearing, outer

2шт.

9

FHO44594

SEAL

2шт.

10

129-270

NUT

- 1" N.F. slotted hex. jam

2шт.

11

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

12

FHO26047

WHEEL - rear (For 7:60 x 15 implement tire)

2шт.

13

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

10шт.

FHO26260

X

CAP - hub

2шт.
