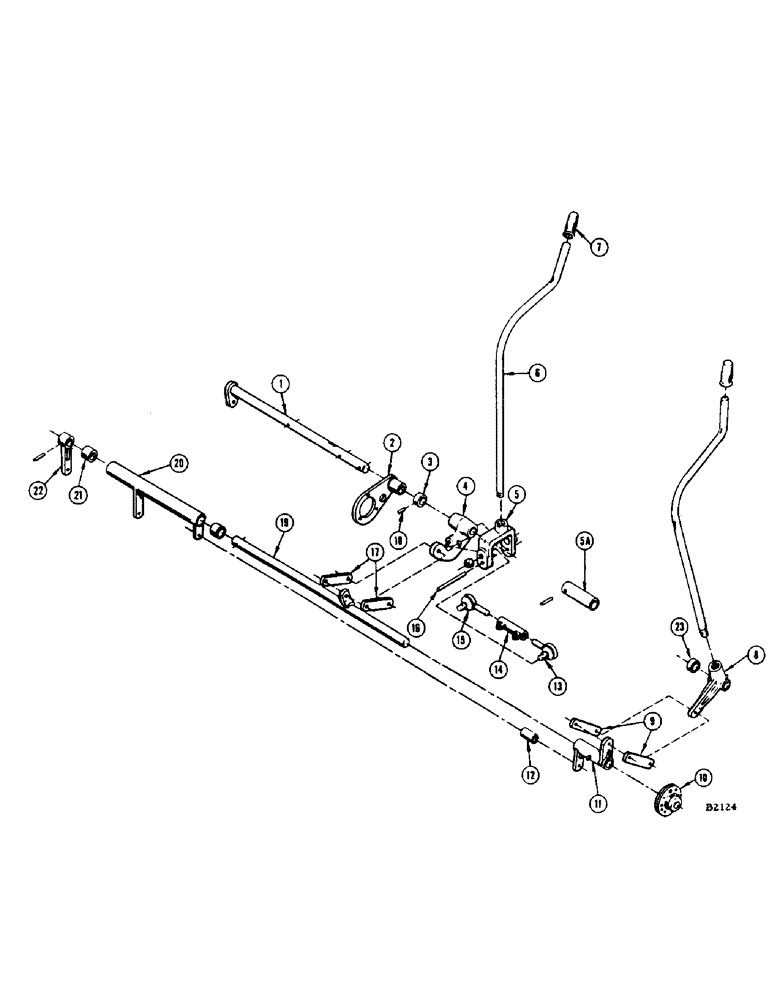

Запчасти Case IH 1150 (024) - VARI-STEERING (41) - STEERING

1

FH119156

SHAFT - (Before #8309801) (Replaced by FH407197 when exhausted)

1шт.

FH407197

SHAFT - (#8309801 and after) (Replaces FH119156 when exhausted)

1шт.

ROLL PIN - 1/4" x 1-3/4" (138-140)

1шт.

2

FH122135

PLATE - reinforcement, for F82927 bearing housing

1шт.

FITTING - grease 1/4"-28 thrd. (219-38)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) L.W. (92-6)

3шт.

3

FH159368

COLLAR - rocker arm (Before #8309801)

2шт.

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

FH159368

COLLAR - rocker arm (#8309801 and after)

1шт.

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

4

F2438

ARM - rocker, steering hinge

1шт.

5

F2437

FORK - R.H. steering

1шт.

5a

FH407189

SPACER - (#8309801 and after)

1шт.

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

6

FH312637

LEVER - control (#8262501 and after)

2шт.

FH122218

LEVER - control (Before #8262501) For replacement when stocks are exh., use 1-FH312637 and 2-FH312579

2шт.

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8" N.f. hex. jam

2шт.

7

FHO27086

X

GRIP - control lever

2шт.

8

F2441

ARM - L.H. steering

1шт.

FITTING - grease 1/4"-28 90 degrees (219-58)

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) L.W. (92-6)

1шт.

9

FH312579

LINK - L.H. steering arm (#8262501 and after)

2шт.

FH116921

LINK - L.H. steering arm (Before #8262501)

2шт.

10

N4807

X

BEARING - for FH246637 shaft

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105) and L.W. (92-5)

3шт.

11

F2434

ARM - L.H. lever (Before #8309801) (For replacement when stocks are exhausted, use FH395160)

1шт.

FH395160

ARM - L.H. lever (#8309801 and after) (Replaces F2434 when exhausted)

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

1шт.

FITTING - grease 1/4"-28 90 degrees (219-58)

1шт.

12

FH159707

SPACER - L.H. lever (Before #8309801)

1шт.

BOLT - 1/2" x 3-1/4" N.C. hex. (13-852) Nut (25-108) L.W. (92-8)

1шт.

13

FHO41046

END - L.H., tie rod

1шт.

14

FHO41061

COUPLER - tie rod ends

1шт.

15

FHO41053

END - R.H. tie rod

1шт.

16

FH124263

PIN - rocker arm hinge

1шт.

17

FH312579

LINK - rocker arm (#8262501 and after)

2шт.

FH116921

LINK - rocker arm (Before #8262501)

2шт.

18

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

19

FH246637

SHAFT - right steering lever

1шт.

20

FH246587

TUBE - left steering arm with bushings

1шт.

21

F53045

BUSHING

- left steering tube

2шт.

22

F2433

ARM

- right steering lever

1шт.

ROLL PIN - 5/16" x 2" (138-160)

1шт.

23

FHO52373

COLLAR - L.H. arm (Before #8309801)

2шт.
