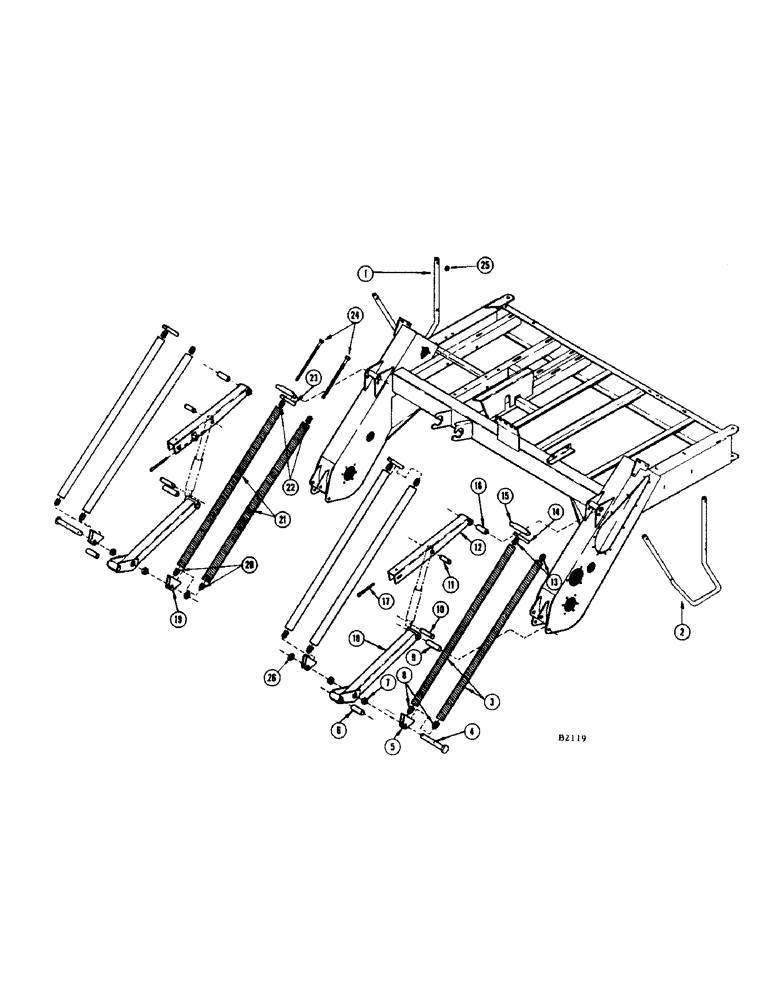

Запчасти Case IH 1150 (008) - MAIN FRAME AND HEADER LIFT, BEFORE 8262501 (39) - FRAMES AND BALLASTING

1

FH291732

STEP - right

1шт.

BOLT - 5/16" x 1-3/4" N.C. hex. (13-120) L.W. (192-20)

1шт.

2

FH268409

STEP - left

1шт.

BOLT - 5/16" x 1-3/4" N.C. hex. (113-120) L.W. (192-20) and nut (29-102)

4шт.

WASHER - 5/16" flat (195-521)

2шт.

3

FHO58743

SPRING - header lift (8 for 14 ft. w/H.C. and 6 w/o H.C.)

1шт.

4

FH289355

PIN - spring

2шт.

FITTING - grease 1/4"-28 strt. (219-20)

2шт.

PIN - cotter 1/4" x 1-1/2" (132-150)

2шт.

5

FH287656

BRACKET - lower, for springs (14 ft. header)

4шт.

6

FH288423

SPACER - (1" O.D. x 3-1/4" long) Lower, for ref. 18 arm

2шт.

7

O7850HT

SPACER - (1" O.D. x 1/2" long) For ref. 18 arm

4шт.

8

FH287805

PLUG - lower, spring (8-14 ft. w/H.C. and 6-14 ft. w/o H.C.)

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (13-820) L.W. (92-8)

1шт.

9

FH158519

SPACER - (1" O.D. x 4-9/16" long) Upper, for ref. 18 arm

2шт.

10

FH291716

PIN - cylinder, bottom (Replaced by FH763169 when stocks are exhausted)

2шт.

FH763169

PIN - cylinder, bottom (Replaces FH291716 when exhausted)

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

11

FH291716

PIN - cylinder, top (Replaced by FH763169 when stocks are exhausted)

2шт.

FH763169

PIN - cylinder, top (Replaces FH291716 when stocks are exhausted)

2шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

12

FH286526

ARM - L.H. and R.H. upper, header lift

2шт.

FITTING - grease 1/4"-28 x 90 degrees (219-58)

2шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (113-417) Nut (129-105) and L.W. (192-23)

4шт.

BOLT - 3/4" x 5" N.C. hex. (13-1280) Nut (25-1012) L.W. (92-12)

2шт.

WASHER - 1/2" flat (195-533)

4шт.

13

FH287813

PLUG - upper, spring (8-14 ft. w/H.C. and 6-14 ft. w/o H.C.)

1шт.

BOLT - 5/8" x 1-1/4" N.C. hex. (13-1020) L.W. (92-10)

1шт.

14

FH287581

BRACKET - upper, for springs (14 ft. header)

4шт.

15

FH286625

PIN - spring (Upper)

2шт.

16

FH287110

SPACER - (1" O.D. x 3-5/8" long) For ref. 12 arm

2шт.

17

FH264135

X

BOLT - draw

2шт.

BOLT - 1/2" x 1-3/4" N.C. hex. (113-412)

2шт.

NUT - 1/2" N.C. (129-105)

4шт.

WASHER - 1/2" flat (195-533)

12шт.

18

FH286575

ARM - lower lift (For replacement when stocks are exhausted, use 1-FH406827, 1-FH406942, 1-FH406934 and 1-13-12104)

2шт.

FITTING - grease 1/4"-28 x 90 degrees (219-58)

2шт.

FITTING - grease 1/4"-28 strt. (219-20)

2шт.

BOLT - 3/4" x 5" N.C. hex. (13-1280) Nut (25-1012) L.W. (92-12)

2шт.

BOLT - 3/4" x 6" N.C. hex. (13-1296) Nut (25-1012) L.W. (92-12)

2шт.

19

FH287656

BRACKET - lower, for springs (12 ft. header)

2шт.

20

FH287805

PLUG - lower, spring (6-12 ft. w/H.C. and 4-12 ft. w/o H.C.)

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (13-820) L.W. (92-8)

1шт.

21

FHO58743

SPRING - header lift (6-12 ft. w/H.C. and 4-12 ft. w/o H.C.)

1шт.

22

FH287813

PLUG - upper, spring (6-12 ft. w/H.C. and 4-12 ft. w/o H.C.)

1шт.

BOLT - 5/8" x 1-1/4" N.C. hex. (13-1020) L.W. (92-10)

1шт.

23

FH287581

BRACKET - upper, for springs (12 ft. header)

2шт.

24

FH702258

SCREW - (5/8" x 14" N.C. cap) For header lift springs

4шт.

NUT - 5/8" N.C. sq. (25-2810)

4шт.

25

FH158741

SPACER - R.H. step

2шт.

26

FHO52258

WASHER - spring pin

2шт.
