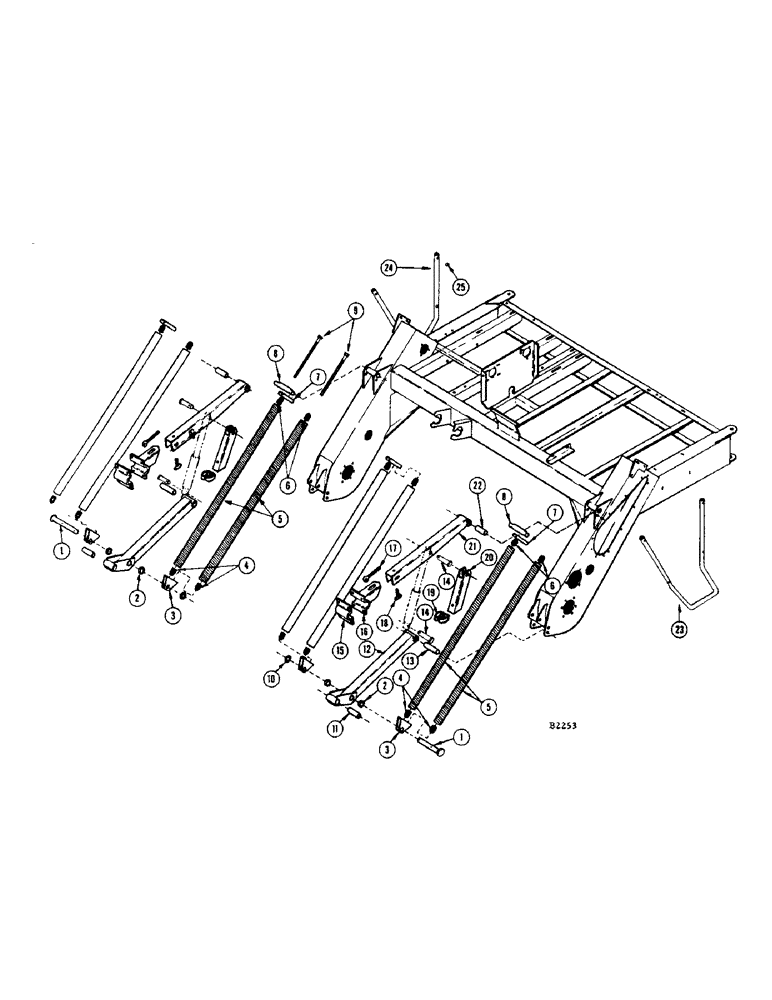

Запчасти Case IH 1150 (006) - MAIN FRAME AND HEADER LIFT, 8262501 AND AFTER (39) - FRAMES AND BALLASTING

1

FH289355

PIN - lower spring

2шт.

PIN - cotter 1/4" x 1-1/2" (132-150)

2шт.

2

O4710C

SPACER - lower lift arm

4шт.

3

FH287656

BRACKET - lower spring

4шт.

4

FH287805

PLUG - spring, lower

8шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (13-820) L.W. (92-8)

8шт.

5

FHO58743

SPRING - header lift

8шт.

6

FH280040

PLUG

- spring, upper

8шт.

7

FH280248

BRACKET - upper spring

4шт.

8

FH276402

PIN - upper spring

2шт.

9

FHO73668

BOLT - header lift spring

4шт.

NUT - 3/4" N.C. hex. (25-1012)

8шт.

10

FHO52258

BUSHING - 1" x 14 ga. mach.

2шт.

11

FH288423

SPACER - lower lift arm (Before #8309801)

2шт.

FH406942

SPACER - lower lift arm (#8309801 and after)

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

12

FH286575

ARM - lower lift (Before #8309801) (For replacement when stocks are exhausted, use 1-FH406827, 1-FH406942, 1-FH406934 and 1-13-12104)

2шт.

FH406827

ARM - lower lift (#8309801 and after)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28 str. (Front)

2шт.

219-58

FITTING

- grease 1/4"-28 x 90 degrees (Rear)

2шт.

13

FH158519

SPACER - lower lift arm (Rear) (Before #8309801)

2шт.

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

FH406934

SPACER - lower lift arm (Rear) (#8309801 and after)

2шт.

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- 3/4" x 6-1/2" N.C. hex.

2шт.

14

FH291716

PIN - cylinder (Replaced by FH763169 when stocks are exhausted)

4шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

8шт.

FH763169

PIN - cylinder (Replaces FH291716 when stocks are exhausted)

4шт.

15

FH311365

FLANGE - extension

2шт.

BOLT - 3/8" x 1" N.C. rhd. sq. nk. (111-302) Nut (129-103)

1шт.

FH299586

SHIM

4шт.

16

FH311340

EXTENSION - upper lift arm

2шт.

17

FH264135

X

DRAWBOLT

2шт.

BOLT - 1/2" x 1-3/4" N.C. hex. (113-412)

2шт.

NUT - 1/2" N.C. hex. (129-105)

4шт.

WASHER - 1/2" flat (195-533)

12шт.

18

FH311399

BOLT - special

2шт.

NUT - 1/2" N.C. hex. (129-105) L.W. (192-23)

2шт.

19

FH751438

CLIP

- handle

2шт.

SCREW - #10-24 x 1/2" flt. hd. (171-97) Nut (129-17) and L.W. (192-18)

2шт.

20

FH311381

STOP - safety

2шт.

21

FH286526

ARM - upper lift (Before #8309801)

2шт.

FH406876

ARM - upper lift (#8309801 and after)

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

195-533

WASHER,1/2", SAE

- 1/2" flat

4шт.

219-58

FITTING

- grease 1/4"-28 x 90 degrees

2шт.

22

FH287110

SPACER - upper lift arm (Before #8309801)

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

FH406892

SPACER - upper lift arm (#8309801 and after)

2шт.

23

FH268409

STEP - left

1шт.

24

FH291732

STEP - right

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (113-104) Nut (129-102) and L.W. (192-20)

2шт.

BOLT - 5/16" x 1-3/4" N.C. hex. (113-120) Nut (129-102) and L.W. (192-20)

2шт.

WASHER - 5/16" flat (195-521)

2шт.

25

FH158741

SPACER - R.H. step

2шт.
