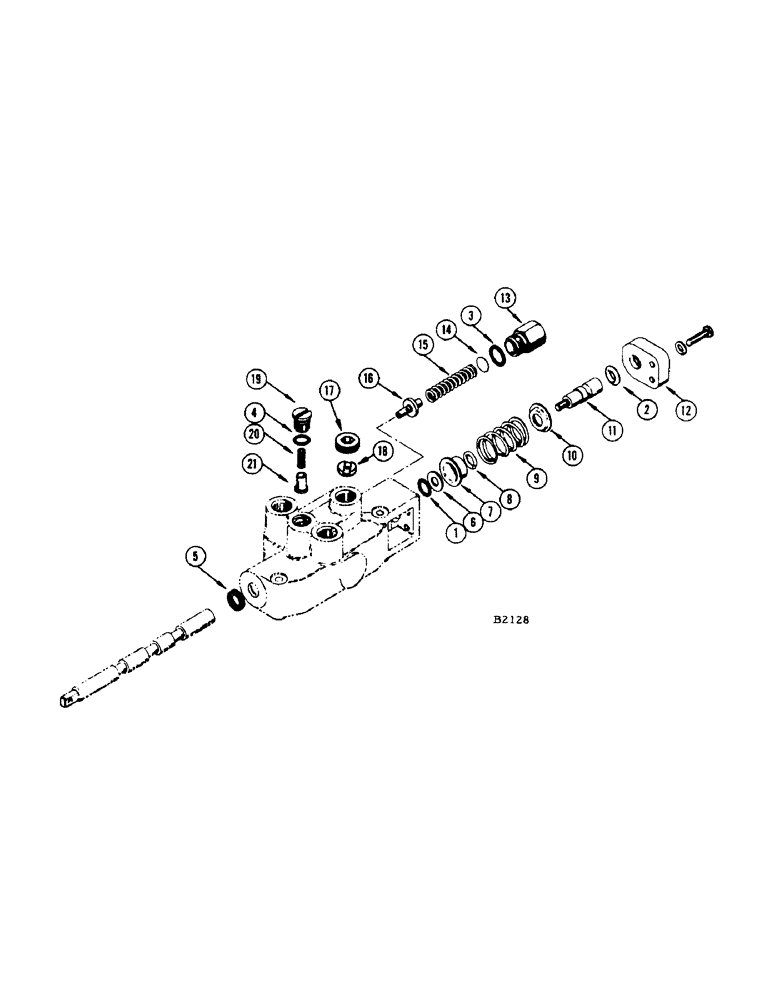

Запчасти Case IH 1150 (038) - PARTS FOR FHO42804 HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS

FH730499

KIT - repair

1шт.

1

F10079

X

"O" RING - (3/32" x 5/8" I.D.) Deep washer

1шт.

2

FH730473

SPRING

- detent block

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - (3/32" x 3/4" I.D.) Relief valve plug

1шт.

4

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (3/32" x 1-1/2" I.D.) Lift check plug

1шт.

5

FH731513

X

"O" RING - (Replaces F59123 when exhausted)

1шт.

F59123

SEAL

"V" BLOCK - (Use FH731513 when stock is exhausted)

1шт.

6

FH730424

WASHER - (53/64" O.D.) Deep washer

1шт.

7

FH730341

WASHER

- deep

1шт.

8

FH730465

SPACER - deep washer

1шт.

9

FH730358

SPRING - spool

1шт.

10

F59116

WASHER

- shallow

1шт.

11

FH730457

SCREW - spool

1шт.

12

FH730440

BLOCK - detent, spool screw

1шт.

13

FH730416

PLUG - relief valve

1шт.

14

FH730317

SHIM - relief valve

1шт.

15

FH730507

SPRING - relief valve

1шт.

16

FH730408

POPPET

1шт.

17

F8245

RETAINER - orifice plate

1шт.

18

F8223

PLATE - orifice

1шт.

19

FH730382

PLUG

- lift check

1шт.

20

FH730374

SPRING

- lift check

1шт.

21

FH730366

PLUNGER

- lift check

1шт.
