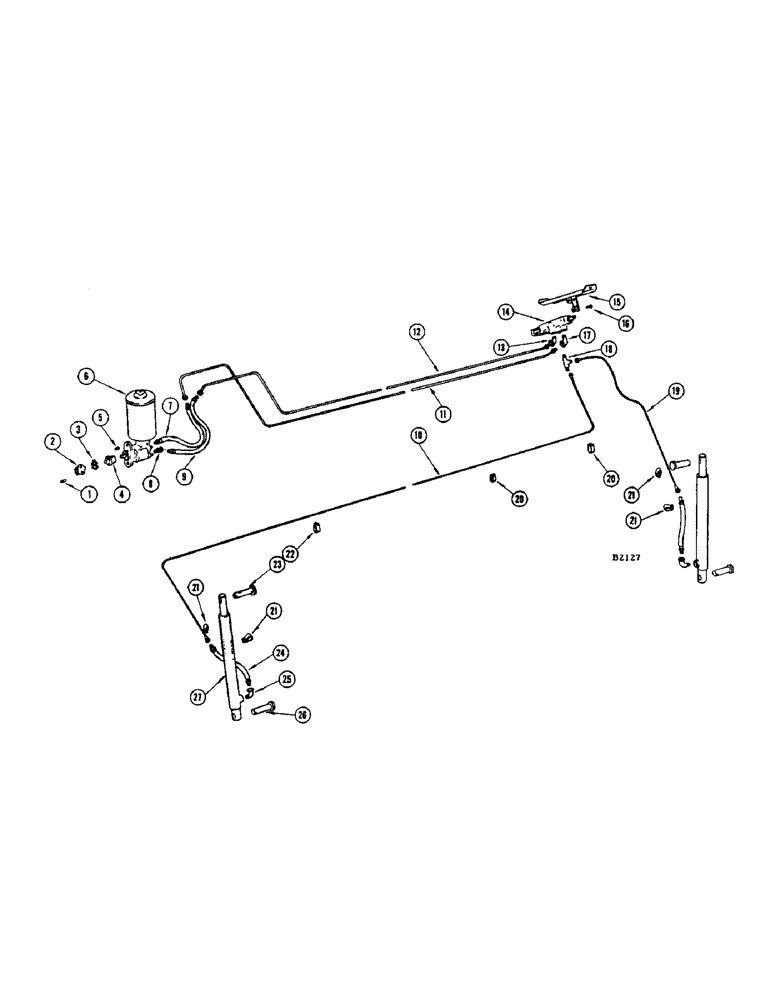

Запчасти Case IH 1150 (032) - HEADER HYDRAULIC LIFT, BEFORE 8266001 (35) - HYDRAULIC SYSTEMS

1

O4284CS

X

KEY - (3/16" x 3/16" x 1") Ref. 2 and ref. 4 coupling to reverse and header drive shaft

1шт.

2

FHO47456

COUPLING - to hydraulic pump

1шт.

3

FHO85936

SPIDER ASSY.

DISC - hydraulic pump couplings

1шт.

4

FHO85167

COUPLING

- to hydraulic pump

1шт.

5

FHO40667

X

KEY - (1/8" x 1/8" x 1/2") Drive gear shaft of pump

1шт.

6

FHO42820

PUMP - (Cessna #20216-OVF-3A) Hydraulic, with reservoir

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) Nut (25-106) and L.W. (92-6)

2шт.

7

FH742148

HOSE - return, pump to ref. 12 line

1шт.

FITTING - street elbow 3/8" x 45 degree NPTF (221-403)

1шт.

8

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

FITTING - 3/8" x 1-1/2" nipple

1шт.

9

FHO42861

HOSE - pressure, pump to FH293258 line

1шт.

FITTING - elbow 3/8" NPTF (221-376)

1шт.

10

FH293266

TUBE ASSY.

LINE - right header cylinder, with flared nuts

1шт.

NUT - 3/8" flared (222-834)

2шт.

11

FH293258

LINE - pressure, valve to ref. 7 hose

1шт.

NUT - 3/8" flared

2шт.

BUSHING - 1/4" x 3/8" (221-53)

1шт.

12

FH291617

TUBE ASSY.

LINE - return, valve to ref. 9 hose

1шт.

NUT - 1/2" flared (222-836)

2шт.

BUSHING - 1/4" x 3/8" (221-53)

1шт.

13

222-1701

ELBOW,45 Degree, 5/8"-18, 45 Degree Fl x 1/4 NPT

FITTING - 3/8" x 1/4" x 45 degree flared elbow

1шт.

14

FHO42804

VALVE - (Cessna #30523-AC) Hydraulic

1шт.

222-1702

FITTING - 3/8" x 1/2" x 45 degree flared elbow

1шт.

15

FH260489

PEDAL - foot

1шт.

16

F60462

PIN

- drilled (3/16" x 1") Foot, Serial Range: pedal-valve

1шт.

17

222-1701

ELBOW,45 Degree, 5/8"-18, 45 Degree Fl x 1/4 NPT

FITTING - 3/8" x 1/4" x 45 degree flared elbow

1шт.

18

221-422

TEE,Pipe, 1/4" NPT

- 1/4" service, for valve and ref. 10 and ref. 19 lines

1шт.

19

FH293241

X

LINE - left header cylinder, with flared nuts

1шт.

NUT - 3/8" flared (222-834)

2шт.

20

FH121723

CLAMP - for ref. 10 line

2шт.

21

FH125971

CLAMP - for ref. 19 line; ref. 27 hose

4шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105) L.W. (92-5)

1шт.

22

FH229724

CLAMP - for ref. 10 line

1шт.

23

FH291716

PIN - cylinder (Replaced by FH763169 when stocks are exh.)

2шт.

FH763169

PIN - cylinder (Replaces FH291716 when stocks are exh.)

2шт.

COTTER PIN - 3/16" x 1-1/2" (132-95)

4шт.

24

FH742049

HOSE - connector, header lift cylinder

2шт.

25

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- 3/8" x 90 degree street, connector hose to cylinder

2шт.

26

FH291716

PIN - cylinder (Replaced by FH763169 when stocks are exh.)

2шт.

FH763169

PIN - cylinder (Replaces FH291716 when exhausted)

2шт.

COTTER PIN - 3/16" x 1-1/2" (132-95)

4шт.

27

FH742056

CYLINDER - (Cessna #40033-BD) Header lift

2шт.

BOLT - 1/2" x 1-3/4" N.C. hex. (113-412) Nut (129-105) and L.W. (192-23)

2шт.

WASHER - 1/2" plain (195-533)

2шт.
