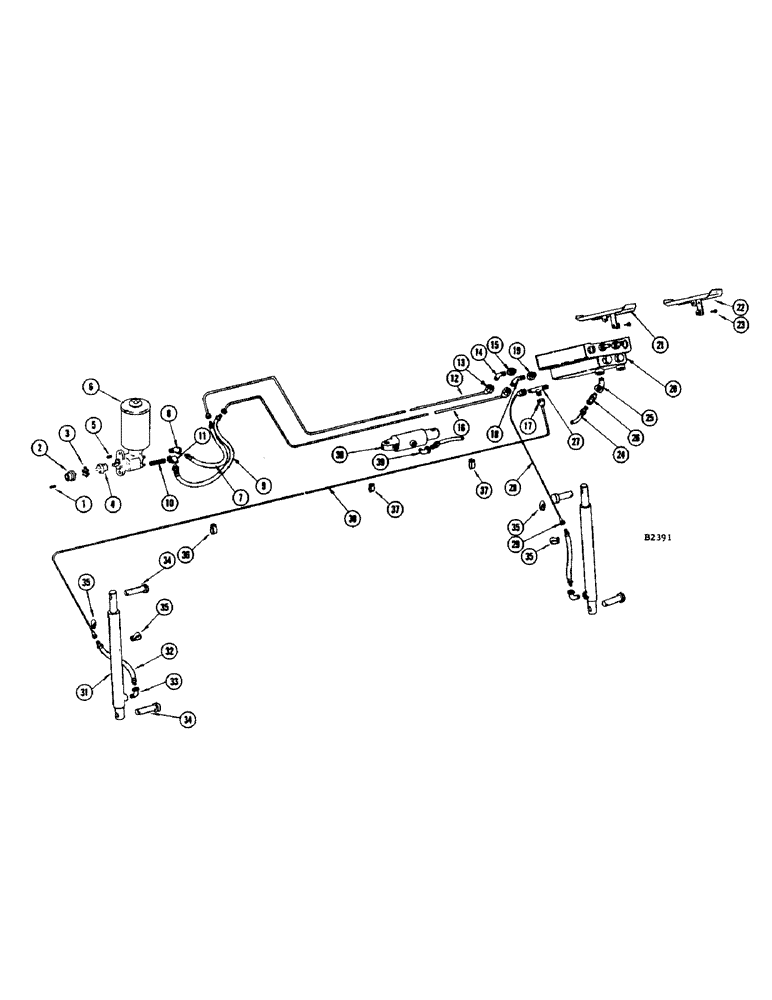

Запчасти Case IH 1150 (030) - HYDRAULICS, 8266001 AND AFTER (35) - HYDRAULIC SYSTEMS

1

O4284CS

X

KEY - 3/16" x 3/16" x 1"

1шт.

2

FHO47456

COUPLING

1шт.

3

FHO85936

SPIDER ASSY.

DISC

1шт.

4

FHO85167

COUPLING

1шт.

5

FHO40667

X

KEY - 1/8" x 1/8" x 1/2"

1шт.

6

FHO42820

PUMP - (Cessna 20216-OVF-3A)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

FH742148

HOSE - return

1шт.

8

221-403

X

FITTING - 3/8" x 45 degree street el.

1шт.

9

FHO42861

HOSE - pressure

1шт.

10

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

FITTING - 3/8" x 1-1/2" nipple

1шт.

11

221-376

ELBOW,90 Degree, 3/8" NPT

FITTING - 3/8" NPTF elbow

1шт.

12

FH291617

TUBE ASSY.

LINE - return

1шт.

13

222-836

NUT - 1/2" flared

2шт.

14

222-1702

FITTING - 1/2" x 3/8" x 45 degree flared elbow

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

FITTING - 1/2" x 3/8" NPTF bushing

1шт.

16

FH293258

LINE - pressure

1шт.

17

222-834

NUT - 3/8" flared

2шт.

18

222-1701

ELBOW,45 Degree, 5/8"-18, 45 Degree Fl x 1/4 NPT

FITTING - 3/8" x 1/4" x 45 degree flared elbow

1шт.

19

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - 1/2" x 1/4" NPTF bushing

1шт.

20

FH742676

VALVE - hydraulic (Cessna 31502-AS)

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 2 1/4", G5

2шт.

21

FH314393

PEDAL - R.H., vari-drive

1шт.

22

FH314385

PEDAL - L.H., header lift

1шт.

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C.

2шт.

23

F60462

PIN

- drilled

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

FH742668

HOSE - hydraulic vari-drive cylinder

1шт.

25

221-403

X

FITTING - 3/8" x 45 degree street el.

1шт.

26

218-907

HYD CONNECTOR,1/2" NPT x 1/4" NPSM Fem

FITTING - 3/8" x 1/4" NPTF swivel

1шт.

27

222-725

FITTING - 3/8" x 3/8" x 3/8" NPTF flared tee

1шт.

28

FH293241

X

LINE - L.H. header lift cylinder

1шт.

29

222-834

NUT - 3/8" flared

2шт.

30

FH293266

TUBE ASSY.

LINE - R.H. header lift cylinder

1шт.

222-834

NUT - 3/8" flared

2шт.

31

FH742056

CYLINDER - header lift (Cessna 40033-BD)

2шт.

32

FH742049

HOSE - header lift cylinder

2шт.

33

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - 3/8" x 90 degree street el.

2шт.

34

FH291716

PIN - cylinder (Replaced by FH763169 when stocks are exh.)

4шт.

FH763169

PIN - cylinder (Replaces FH291716 when stocks are exh.)

4шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

8шт.

35

FH125971

CLAMP

4шт.

36

FH229724

CLAMP

1шт.

37

FH121723

CLAMP

2шт.

38

FH742320

CYLINDER - vari-drive (Before #8309801)

1шт.

39

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - 1/4" x 90 degree street el.

1шт.

FH842013

CYLINDER - vari-drive (#8309801 and after)

1шт.

221-402

ELBOW,45 Degree, 1/4"-27, NPT

FITTING - 1/4" x 45 degree street el.

1шт.
