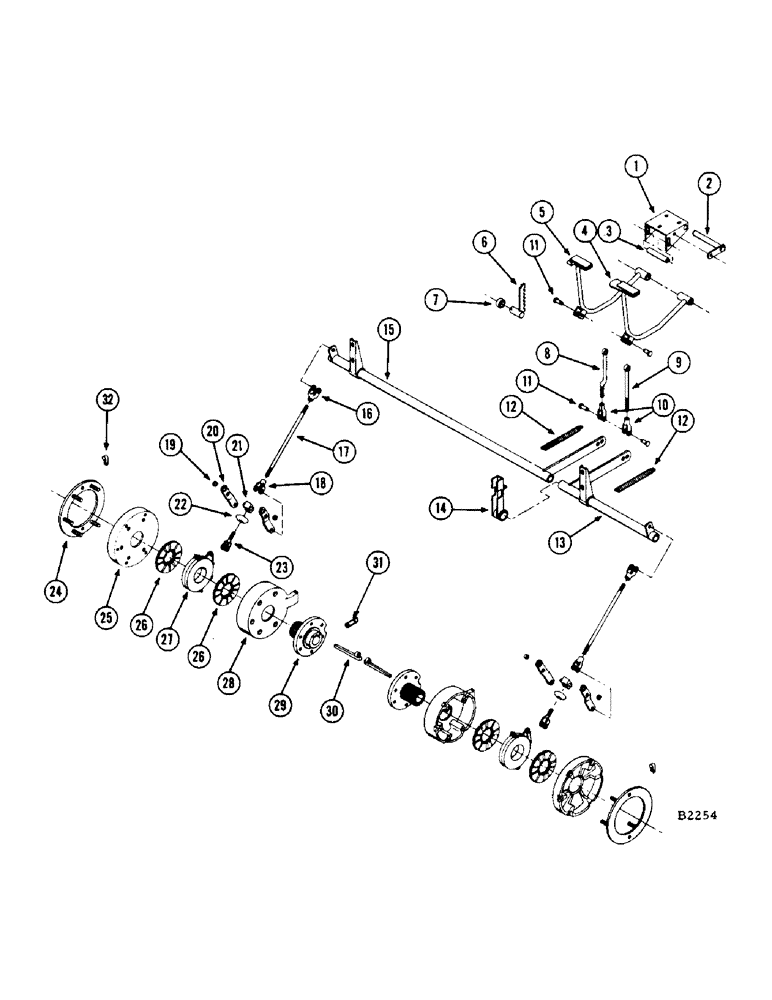

Запчасти Case IH 1150 (090) - WHEEL BRAKE ATTACHMENT (33) - BRAKES & CONTROLS

1

FH314039

CHANNEL - mounting, brake pedal

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (129-102)

3шт.

WASHER - 5/16" flat (195-103)

3шт.

2

FH314161

PIN - brake pedal mounting

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (129-102)

1шт.

3

FH314013

SPACER - stop

1шт.

BOLT - 1/2" x 7" N.C. hex. (13-8112) Nut (129-105)

1шт.

WASHER - 1/2" flat (195-106)

2шт.

4

FH314286

PEDAL - brake L.H.

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

1шт.

5

FH314294

PEDAL - brake R.H.

1шт.

6

FH313973

LOCK - brake

1шт.

7

FH314005

BUSHING - brake lock

1шт.

FHO52522

BUSHING - 1-1/8" x 10 ga. mach.

1шт.

8

FH314773

ROD - offset, R.H.

1шт.

9

FH314120

ROD - L.H.

2шт.

10

FHO66183

CLEVIS - upper rod

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

FH314781

PIN - clevis

4шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

4шт.

12

FHO58875

SPRING - return

2шт.

13

FH314062

SHAFT - torsion

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

1шт.

BOLT - 5/16" x 1" N.C. hex. (113-103) L.W. (192-20)

2шт.

WASHER - 5/16" flat (195-103)

2шт.

14

FH316000

HANGER - bearing

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

1шт.

BOLT - 5/16" x 2-1/4" N.C. hex. (113-110) L.W. (192-20)

2шт.

15

FH314047

SHAFT - torsion

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

1шт.

BOLT - 5/16" x 1" N.C. hex. (113-103) L.W. (192-20)

2шт.

WASHER - 5/16" flat (195-103)

2шт.

FHO63958

PIN - clevis 7/16" x 1-1/2"

6шт.

PIN - cotter 5/32" x 3/4" (132-67)

2шт.

PIN - cotter 5/32" x 1" (132-69)

4шт.

16

FH313247

CLEVIS - brake rod, upper

2шт.

129-104

NUT,7/16"-14, G5

2шт.

17

FH314203

ROD - brake

2шт.

18

FH314799

CLEVIS - brake rod, lower

2шт.

129-304

NUT - 7/16" N.C. hex., left hand thread

2шт.

19

FH314021

BUSHING - lever

4шт.

20

FH313932

LEVER

4шт.

BOLT - 5/16" x 2-1/4" N.C. hex. (113-110) Nut (129-102)

2шт.

WASHER - 5/16" flat (195-103)

4шт.

21

FH314211

BLOCK

2шт.

22

FHO27789

BOOT - rubber

2шт.

23

FH313924

CLEVIS - actuating disc

2шт.

NUT - 1/2" N.C. hex. (129-105)

4шт.

24

FH314146

PLATE

2шт.

25

FH314278

PLATE - brake mounting

2шт.

NUT - 3/8" N.C. hex. (129-103) L.W. (192-21)

10шт.

26

FH721100

DISC - middle

4шт.

27

FH721118

DISC - actuating

2шт.

28

FH314138

HOUSING

2шт.

BOLT - 3/8" x 3" N.C. hex. soc. hd. (61-648) L.W. (192-21)

10шт.

29

FH380071

HUB - wheel (#8266001 and after)

2шт.

FH314229

HUB - wheel (Before #8266001)

2шт.

30

FH380113

KEY - hub (#8266001 and after)

2шт.

FH314252

KEY - hub (Before #8266001)

2шт.

31

FH380105

KEEPER - (#8266001 and after)

2шт.

32

FH314195

CLAMP

2шт.
