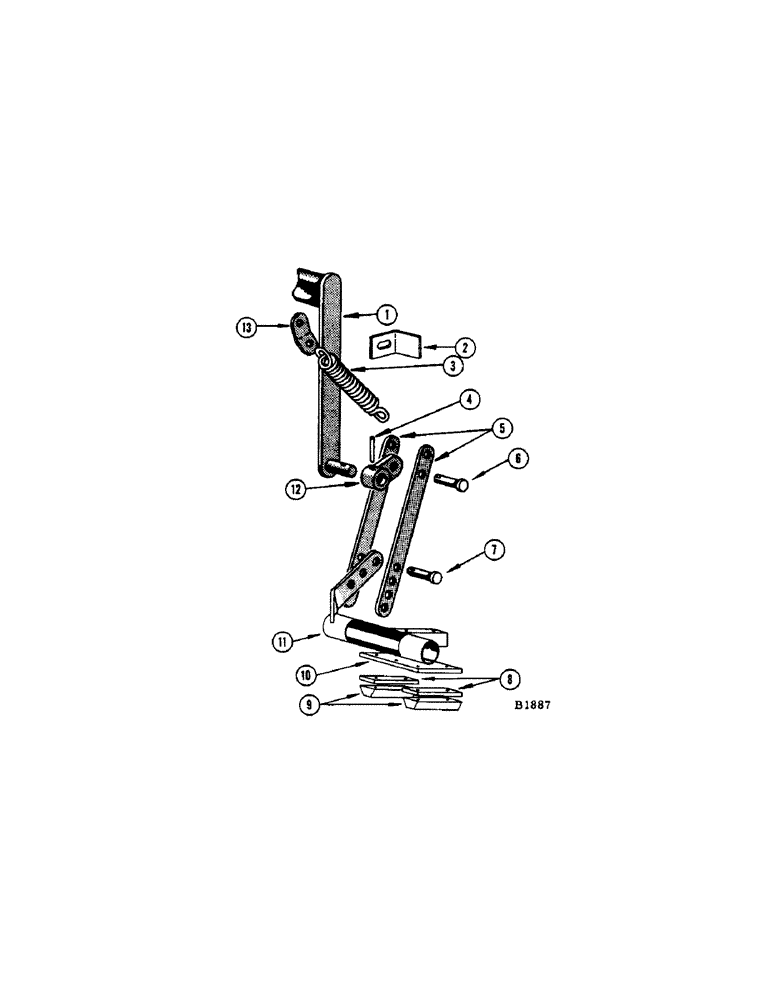

Запчасти Case IH 1150 (026[A]) - FOOT BRAKE (33) - BRAKES & CONTROLS

1

FH134726

PEDAL - foot

1шт.

2

FH253120

STOP - brake pedal

1шт.

3

FHO58115

SPRING - brake

1шт.

4

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Ref. 12 arm to Ref. 3 bracket 1/4" x 1 3/4", Slotted

1шт.

5

FH122697

LINK - brake

2шт.

6

FHO63586

CLEVIS PIN - upper, for brake link

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

7

FHO63578

X

CLEVIS PIN - lower, for brake link

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

8

FH246520

LINING - (Flat) Brake

2шт.

9

FH246538

LINING - ("V") Brake

2шт.

10

FH246512

SHOE - brake

1шт.

BOLT - 3/8" x 2" N.C. hex. (13-632) Nut (25-106)

2шт.

NUT - 3/8" N.C. jam (25-146)

4шт.

SCREW - 5/16" x 1" N.C. mach. (73-516) Nut (25-105) and L.W. (92-5)

4шт.

11

FH246470

LINKAGE - actuating

1шт.

12

FH121442

ARM - brake

1шт.

FITTING - grease 1/4"-28 strt. (219-58)

1шт.

13

FH122705

BRACKET - brake spring

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) and L.W. (92-6)

1шт.
