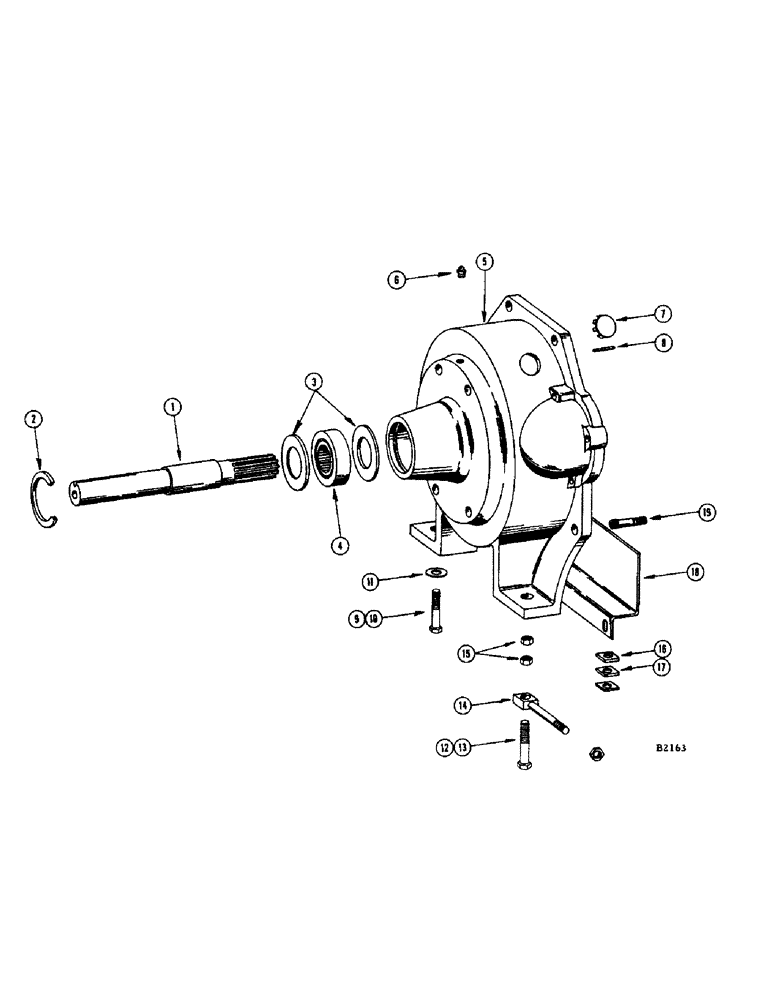

Запчасти Case IH 1150 (094) - PTO HOUSING (14) - MAIN GEARBOX & DRIVE

1

FH291393

SHAFT - engine output

1шт.

2

FH740134

SNAP RING

1шт.

3

FH751354

WASHER

2шт.

4

FH710525

BEARING

1шт.

5

FH293522

HOUSING - output

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

205-58

PLUG - button

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(Gas engine) Hex, 5/8"-11 x 2 1/4", G5

1шт.

10

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (Diesel engine)

1шт.

11

95-10

WASHER,5/8"

- flat 5/8"

1шт.

12

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Gas engine) Hex, 5/8"-11 x 2 1/2", G5

1шт.

13

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Diesel engine) Hex, 5/8"-11 x 3", G5

1шт.

14

FH247254

BOLT - draw, adjustment

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

15

25-1010

NUT,5/8"-11, G5

4шт.

16

FH292987

SHIM - engine mounting (Diesel engine)

4шт.

17

FHO27714

SHIM - engine mounting (Diesel engine)

2шт.

18

FH292961

COVER - flywheel

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

19

61-1044

BOLT - 5/8" x 3/4" N.C. socket hd.

2шт.
