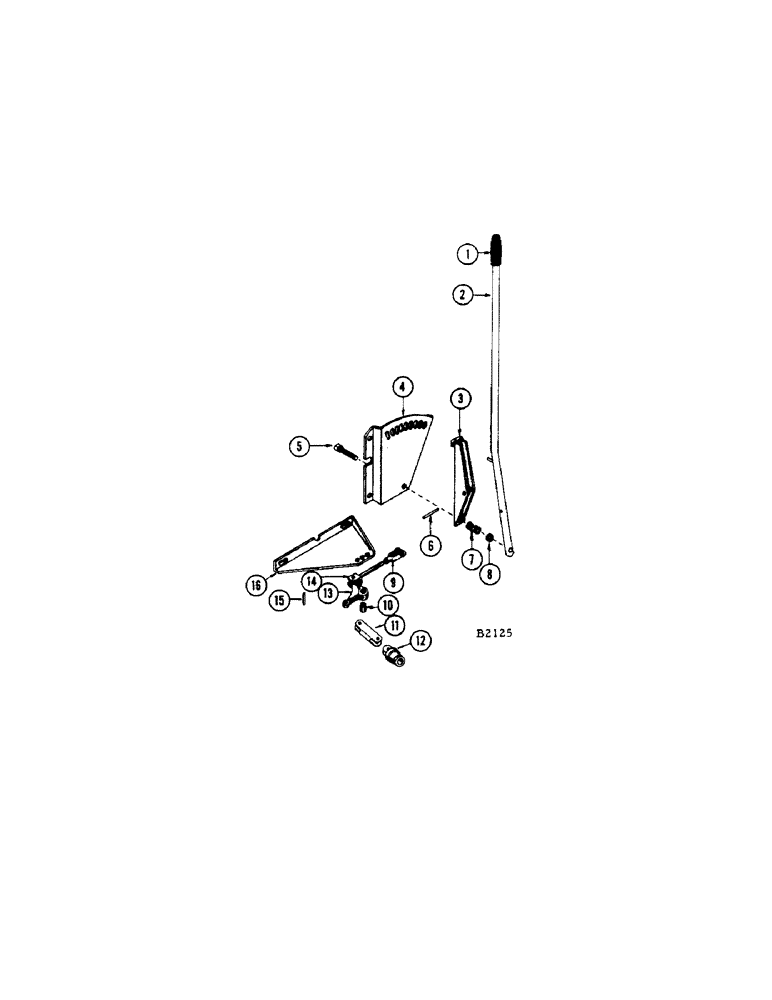

Запчасти Case IH 1150 (026) - VARIABLE DRIVE CONTROL LEVER, BEFORE 8266001 (14) - MAIN GEARBOX & DRIVE

1

FHO27086

X

GRIP - variable drive lever

1шт.

2

FH315465

LEVER - variable drive (Replaces FH220210 when stocks are exhausted)

1шт.

FH220210

LEVER - variable drive (Replaced by FH315465 when stocks are exhausted)

1шт.

3

FH220236

PIVOT - drive lever

1шт.

4

FH220269

QUADRANT - variable drive

1шт.

5

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Ref. 4 quadrant to ref. 2 lever

1шт.

LOCKWASHER - 1/2" (92-8) Fl. wshr. (95-8)

1шт.

6

FHO63784

PIN - clevis, ref. 2 lever to ref. 3 pivot

1шт.

PIN - cotter 1/16" x 1" (132-9)

1шт.

7

FHO58438

SPRING - for drive lever

1шт.

8

FH220277

SPACER - between lever and pivot

1шт.

9

O381SC

YOKE - adjustable, variable drive lever

1шт.

10

FH159954

BUSHING - for variable drive pivot, ref. 13

1шт.

11

FH247080

YOKE - spindle

1шт.

12

FH247023

SPINDLE - variable drive

1шт.

13

FH133785

PIVOT - variable drive

1шт.

14

FH134767

ROD - pivot, with clevis

1шт.

15

138-170

LOCK PIN,3/8" x 1", Slotted

Pin, , ref. 11 yoke to ref. 13 pivot and ref. 12 spindle 3/8" x 1", Slotted

2шт.

16

FH135046

MOUNTING - pivot, variable drive

1шт.
