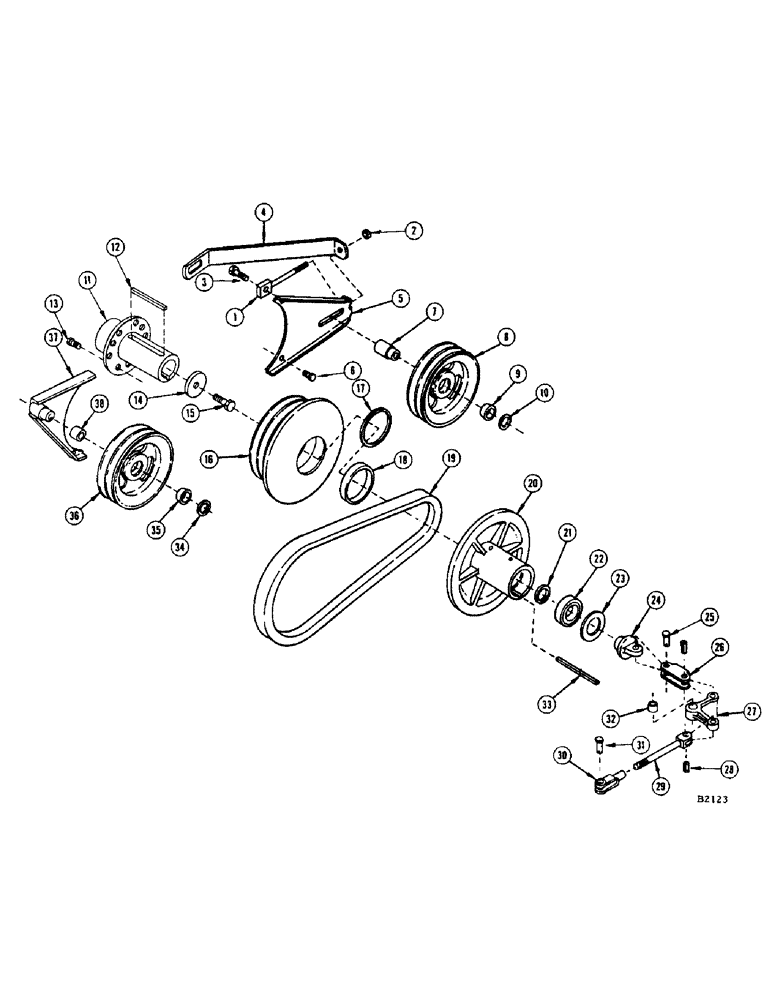

Запчасти Case IH 1150 (022) - VARIABLE DRIVE CONTROL, BEFORE 8266001 (14) - MAIN GEARBOX & DRIVE

1

FH247064

DRAWBOLT - rear idler pulley

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. for drawbolt

1шт.

WASHER - 3/8" flat (95-6)

1шт.

3

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

NUT - 1/2" N.C. hex. (25-108) L.W. (92-8) Fl. wshr. (95-8)

1шт.

4

FH315580

BRACE - reverse idler bracket (#8262501 and after) Use w/FH315507

1шт.

FH291682

BRACE - reverse idler bracket (Before #8262501) Use w/FH246934

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) Nut (25-104) L.W. (92-4)

1шт.

5

FH315507

BRACKET - rear, reverse idler mounting (Replaces FH246934 when stocks are exhausted)

1шт.

FH246934

BRACKET - rear reverse idler mounting (Replaced by FH315507 when stocks are exhausted)

1шт.

6

164-580

SCREW - 5/8" x 1" button head soc. cap

4шт.

LOCKWASHER - 5/8" (92-10)

4шт.

7

FH247049

SPACER

1шт.

8

FH247031

PULLEY - (8" O.D. dbl.) Reverse idler, rear

1шт.

9

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - for rear pulley

1шт.

10

A31078

SNAP RING,2.062", Int, #206

1шт.

11

FH285981

HUB - vari-drive sheave

1шт.

12

FHO61689

KEY - (3/8" x 3/8" x 4-9/16")

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

LOCKWASHER - 3/8" (92-6)

6шт.

14

FH303313

WASHER

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

LOCKWASHER - 1/2" (92-8)

1шт.

16

FH246967

SHEAVE - (11-1/8" O.D. and 9" O.D. triple) Stationary

1шт.

PLUG - pipe 1/8"-27 NPTF (221-849)

2шт.

17

FHO52910

SNAP RING - spindle (3-1/2" O.D.)

1шт.

18

FHO51961

BEARING

1шт.

19

FHO56846

"V" BELT - variable drive

1шт.

20

FH285999

SHEAVE - (11-1/8" O.D. w/hub) Floating half

1шт.

21

FHO52977

X

SNAP RING - for spindle (1.446 O.D.)

1шт.

22

F8025

BEARING

- for drive spindle

1шт.

23

100-21315

SNAP RING,3.156", Int, #315

- for drive sprindle (3.503" O.D.), CLAMP p type

1шт.

24

FH247023

SPINDLE - variable drive

1шт.

25

FHO63628

PIN - clevis 3/8" x 1-3/4"

1шт.

PIN - cotter 5/32" x 1" (132-69)

1шт.

26

FH247080

YOKE - spindle

1шт.

27

FH133785

PIVOT - variable drive

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex. (13-820) Nut (25-108) L.W. (92-8)

1шт.

WASHER - 1/2" flat (95-8)

1шт.

28

138-170

LOCK PIN,3/8" x 1", Slotted

Pin, 3/8" x 1", Slotted

2шт.

29

FH134767

ROD - pivot

1шт.

30

O381SC

YOKE - adjustable, variable drive lever

1шт.

31

FHO63685

PIN - clevis 1/2" x 1-1/2"

2шт.

PIN - cotter 5/32" x 1" (132-69)

2шт.

32

FH159954

BUSHING - variable drive pivot

1шт.

33

FHO61929

KEY - (1/2" x 1/2" x 4-9/16"), Serial Range: Sheave-hub

1шт.

34

A31078

SNAP RING,2.062", Int, #206

For N4651 brg 2.062", Int, #206

1шт.

35

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING

1шт.

36

FH247031

PULLEY - (8" O.D. dbl.) Reverse idler, front

1шт.

BOLT - 1/2" x 1" N.C. hex. (13-816) L.W. (92-8) and fl. wshr. (95-8)

1шт.

37

FH317131

BRACKET - reverse idler, front (Replaced FH246892 when stocks are exhausted)

1шт.

FH246892

BRACKET - reverse idler, front (Replaced by FH317131 when stocks are exhausted)

1шт.

38

FH319806

BUSHING - (Use with FH317131)

1шт.
