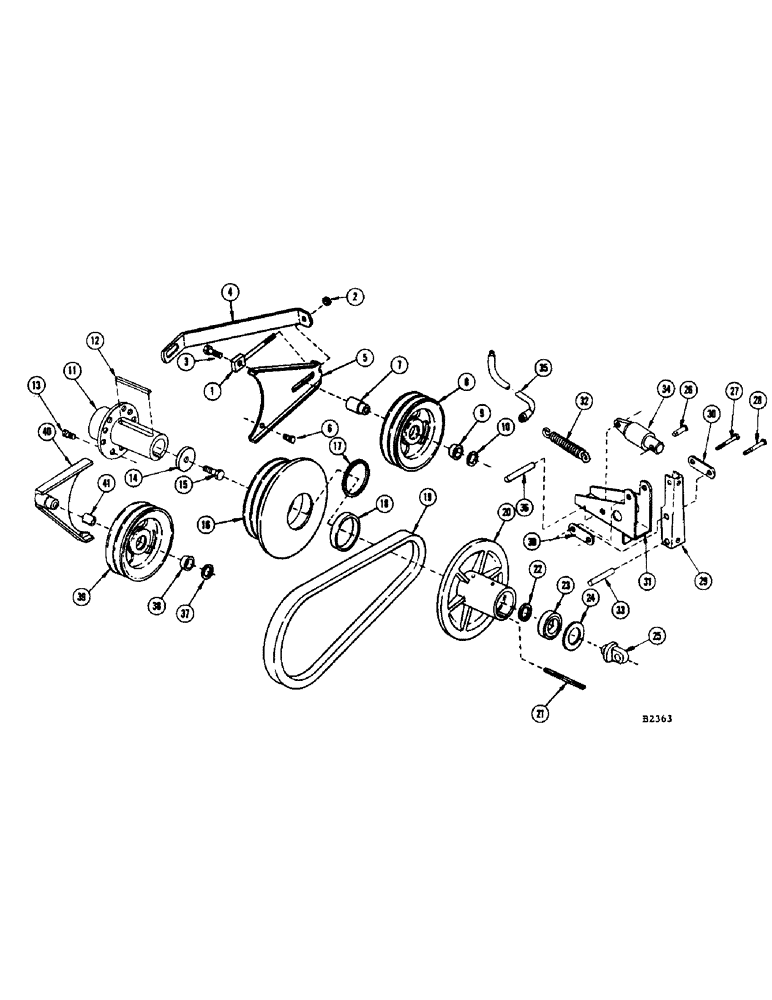

Запчасти Case IH 1150 (020) - VARIABLE DRIVE CONTROL, SERIAL NUMBER 8266001 THRU 8309800 (14) - MAIN GEARBOX & DRIVE

1

FH247064

DRAWBOLT - rear idler pulley

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

3

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Nut, L.W. and fl. wshr. Hex, 1/2"-13 x 3 3/4", G5

1шт.

4

FH315580

BRACE - reverse idler bracket

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

5

FH315507

BRACKET - rear, reverse idler mounting

1шт.

6

164-580

SCREW - 5/8" x 1" button hd. socket cap

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

FH247049

SPACER

1шт.

8

FH247031

PULLEY - rear, reverse idler (8" O.D. dbl.)

1шт.

9

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - rear pulley

1шт.

10

A31078

SNAP RING,2.062", Int, #206

1шт.

11

FH285981

HUB - vari-drive sheave

1шт.

12

FHO61689

KEY

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

14

FH303313

WASHER

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

and L.W. Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

16

FH246967

SHEAVE - stationary (11-1/8" O.D. and 9" O.D. triple)

1шт.

221-849

PLUG,Hex Soc, 1/8"-27

- pipe 1/8" NPTF

2шт.

17

FHO52910

SNAP RING - spindle (3-1/2" O.D.)

1шт.

18

FHO51961

BEARING

1шт.

19

FHO56846

BELT - "V", variable drive

1шт.

20

FH285999

SHEAVE - floating half (11-1/8" O.D.)

1шт.

21

FHO61929

KEY

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4 str.

2шт.

22

FHO52977

X

SNAP RING (1.446 O.D.)

1шт.

23

F8025

BEARING

- drive spindle

1шт.

24

NLS

NO LONGER SERVICED

SNAP RING - drive spindle (3.503 O.D.)

1шт.

25

FH247023

SPINDLE - variable drive

1шт.

26

O2809CS

PIN - clevis

1шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

27

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

28

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

29

FH336768

LINK - control

1шт.

30

FH336800

LINK

2шт.

31

FH336701

BRACKET - cylinder mounting

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. nut and L.W.

1шт.

32

FHO58420

SPRING

1шт.

33

FH336792

PIN - cylinder

1шт.

34

FH742320

CYLINDER - variable drive control

1шт.

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - 1/4 x 90 degree street el.

1шт.

35

FH742668

HOSE

1шт.

36

FH336784

SHAFT

1шт.

37

A31078

SNAP RING,2.062", Int, #206

1шт.

38

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - front pulley

1шт.

39

FH247031

PULLEY - front, reverse idler (8" O.D. dbl.)

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

L.W. and fl. wshr. Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

40

FH317131

BRACKET - front, reverse idler

1шт.

41

FH319806

BUSHING

1шт.
