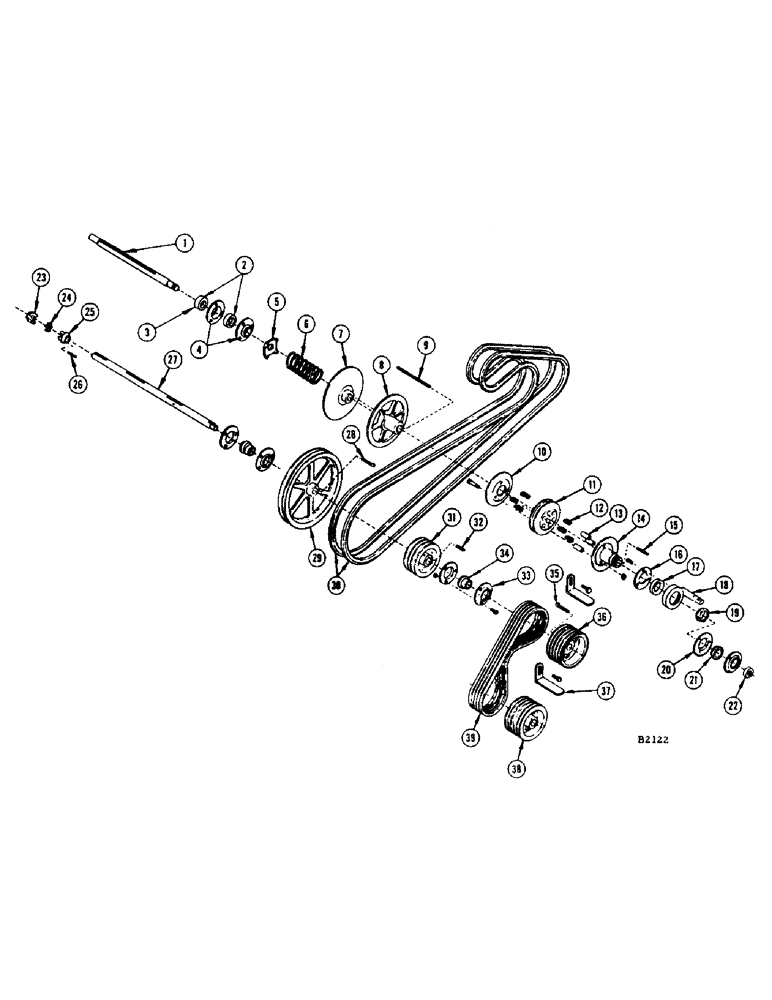

Запчасти Case IH 1150 (018) - FORWARD AND REVERSE DRIVE, BEFORE 8262501 (14) - MAIN GEARBOX & DRIVE

1

FH271999

SHAFT - forward drive

1шт.

2

F51085

BEARING

- for FH271999 shaft

1шт.

3

O697CB

X

COLLAR

1шт.

4

O650CB

X

FLANGE - for F51085 bearing

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (13-616) Nut (25-106)

3шт.

5

FH247999

PLATE - spring retainer

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

6

FHO58453

SPRING

- forward drive shaft

1шт.

7

FH272047

SHEAVE - floating half

1шт.

8

FH272039

SHEAVE - stationary half

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

9

FHO61911

KEY - (3/8" x 3/8" x 9")

1шт.

10

FH122077

SHEAVE - half

1шт.

BOLT - 1/2" x 3" N.C. hex. (13-848) Jam nut (25-148)

3шт.

11

FH272005

PULLEY - vari-steering drive, center

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

12

FHO58131

SPRING

6шт.

13

FH158675

SPACER

3шт.

14

FH272013

SHEAVE - half, with hub

1шт.

15

FHO61234

KEY - (3/8" x 3/8" x 2-3/4")

1шт.

16

FH122192

FLANGE

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) L.W. (92-5)

3шт.

17

FHO50500

BEARING

1шт.

18

FH272088

HOUSING - bearing

1шт.

19

FH272070

NUT - (1-3/4" N.F. hex.) Bearing housing

1шт.

SCREW - 5/16" x 1/4" N.C. cup pt. set (83-54)

1шт.

20

F19270

FLANGE

- bearing

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) Nut (25-106)

3шт.

21

F82927

RACE

BEARING - w/o 3203CK collar

1шт.

22

FHO66001

NUT - 1-1/8" N.C. special jam

1шт.

SCREW - set 5/16" x 5/16" soc. hd. (83-55)

1шт.

23

FHO85167

COUPLING

- to hydraulic pump

1шт.

24

FHO85936

SPIDER ASSY.

DISC - hydraulic pump couplings

1шт.

25

FHO47456

COUPLING

1шт.

26

O4284CS

X

KEY - (3/16" x 3/16" x 1")

1шт.

27

FH267963

SHAFT - reverse and header universal joint drive

1шт.

28

FHO61739

KEY

GIB KEY - (1/4" x 1/4" x 2-1/4")

1шт.

29

FH268268

PULLEY - reverse drive

1шт.

30

FH262600

SET OF BELTS

SET OF 2 BELTS, V Belt, Reverse drive (Matched of FHO56812)

1шт.

31

FH268276

PULLEY - vari-steering drive

1шт.

SCREW - 5/16" x 5/16" N.C. soc. hd. set (83-55)

1шт.

SCREW - 1/2" x 1/2" N.C. soc. hd. set (83-88)

1шт.

ROLL PIN - 1/4" x 1-3/8" (138-137)

1шт.

32

FH156620

KEY

1шт.

33

T27207

FLANGED BEARING

FLANGE

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106)

6шт.

34

T25346

BEARING ASSY,36.51mm ID x 72mm OD x 22.55mm W

BEARING

2шт.

TD4510

COLLAR - for T25346 bearing (Not shown)

2шт.

35

FHO61416

GIB KEY - (1/4" x 1/4" x 2-3/4")

1шт.

36

FH268284

SHEAVE - (7-1/2" O.D. five groove) Drives header universal joint shaft

1шт.

37

FH268953

GUIDE - belt

2шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

2шт.

WASHER - 3/8" flat (95-6)

2шт.

38

FH246686

SHEAVE - (7-1/2" O.D. five groove) Drives header universal joint shaft

1шт.

39

FH267633

SET OF BELTS

SET OF 5 BELTS, V-Belt (Matched of FHO57034), Header universal joint drive

1шт.
