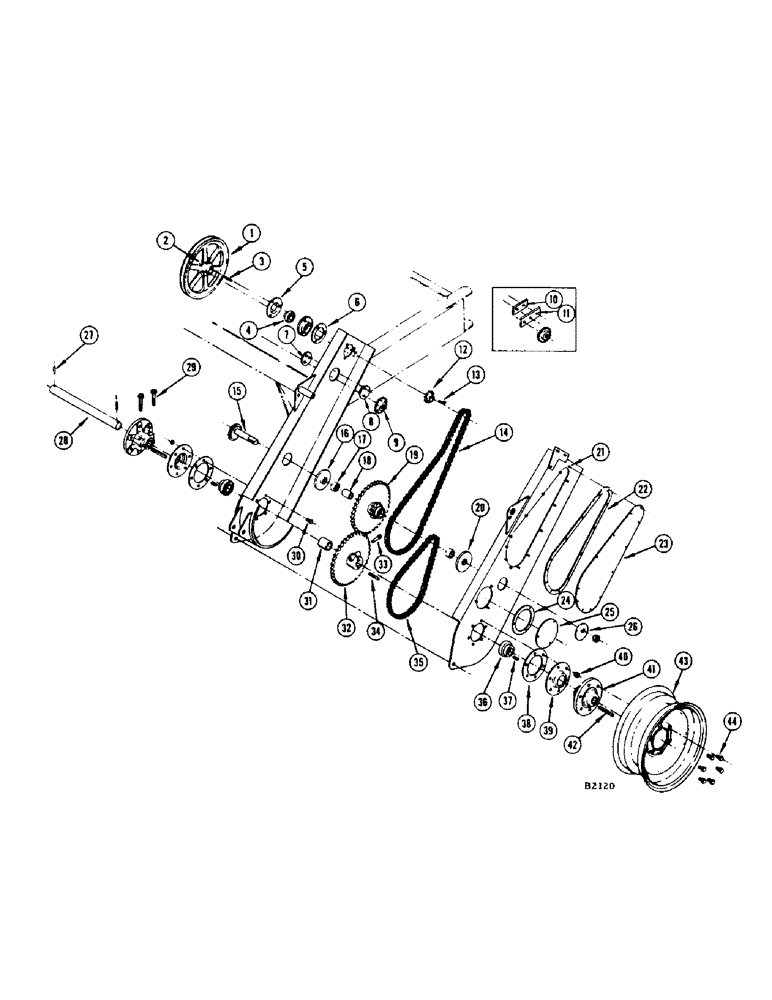

Запчасти Case IH 1150 (012) - DRIVE WHEELS AND CHAIN CASE, BEFORE 8266001 (14) - MAIN GEARBOX & DRIVE

1

FH222653

PULLEY, driven, R.H. and L.H. wheelshaft

2шт.

SCREW - 5/16" x 5/16" N.C. soc. hd. set (83-55)

2шт.

2

61-664

SCREW - 3/8" x 4" N.C. soc. hd. cap (For driven sheaves)

4шт.

NUT - 3/8" hex. (25-106) L.W. (92-6)

4шт.

3

T25070

KEY

- driven pulley

2шт.

4

F51085

BEARING

- R.H. and L.H. shafts

4шт.

O697CB

X

COLLAR - bearing, drive shafts

4шт.

5

O650CB

X

FLANGE - bearing

4шт.

6

FHO44073

GASKET - bearing flange

2шт.

7

FH312256

COVER - cam (#8262501 and after)

2шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)

4шт.

BOLT - 1/2" x 2-3/4" N.C. hex. (13-844) Nut (25-108) and L.W. (92-8)

2шт.

WASHER - 1/2" flat (95-8)

6шт.

8

FH312249

CAM - chain tightener (#8262501 and after)

2шт.

9

F78573

SPROCKET ASSY.

SPROCKET - chain tightener (17T)

2шт.

10

FHO44115

GASKET - chain tightener bracket (Before #8262501)

2шт.

11

FH252452

BRACKET - chain tightener (Before #8262501)

2шт.

BOLT - 1/2" x 3/4" N.C. hex. (13-812) L.W. (92-8) and fl. wshr. (95-8)

4шт.

BOLT - 1/2" x 1-3/4" N.C. hex. (13-828) L.W. (92-8)

2шт.

WASHER - 1/2" flat (95-8)

6шт.

12

FHO87932

SPROCKET ASSY.

SPROCKET - wheel drive shaft (11T) Standard

1шт.

FHO47035

SPROCKET - wheel drive shaft (13T) Speed-up

1шт.

13

FHO61341

KEY - gib

2шт.

14

FHO47878

CHAIN - jackshaft sprocket (See chain page)

2шт.

15

FH285585

JACKSHAFT - spindle

2шт.

16

FH285627

SPACER - (4-1/2" O.D. x 7/8" long) Spindle jackshaft

2шт.

17

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - spindle jackshaft

4шт.

18

FH252403

SPACER

- jackshaft sprocket

2шт.

19

FH252486

SPROCKET - (10T and 60T dbl.) Spindle jackshaft

2шт.

20

FH285619

SPACER - (4-1/2" O.D. x 5/8" long) Spindle jackshaft

2шт.

21

FHO72777

BOLT - lower chain housing cover

34шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

32шт.

22

FHO44297

GASKET - upper, chain housing cover plate

2шт.

23

FH236778

PLATE - cover, chain housing

2шт.

24

FHO44289

GASKET - lower, chain housing cover plate

2шт.

25

FH235515

PLATE - lower, chain housing cover

2шт.

26

FH285601

CAM - spindle jackshaft

2шт.

27

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, , Hub to axle 3/8" x 2", Slotted

4шт.

28

FH130054

AXLE - wheel

2шт.

29

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.F. hex., wheel hub

8шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10)

8шт.

30

FHO73049

BOLT - wheel hub flange

24шт.

31

FH158477

SPACER - axle (2-1/8" O.D. x 2-1/8" long)

2шт.

32

FH252494

SPROCKET - (37T) Drive wheel

2шт.

33

83-1048

SCREW - 5/8" x 3" N.C. soc. hd. cap, drive wheel sprocket

2шт.

34

O8065HT1

KEY - drive wheel sprockets to axle (3/8" x 3/8" x 3")

2шт.

35

FHO85670

CHAIN - drive wheel sprocket, #80 chain

2шт.

36

FHO50401

BEARING, BALL

BEARING - wheel axle

4шт.

F59131

COLLAR

- bearing (Not shown)

4шт.

37

FHO29207

PLUG - axle

4шт.

38

FHO44354

GASKET - wheel hub flange

4шт.

39

FH241224

FLANGE - wheel hub

4шт.

40

N4221

WHEEL NUT

- wheel bolt

24шт.

41

F2427

HUB - drive wheel

4шт.

ROLL PIN - 3/8" x 2" (138-77)

4шт.

42

O4053AB

KEY - (3/8" x 3/8" x 4-1/4"), Serial Range: Hub-axle

4шт.

43

O9930HT

WHEEL - drive (For 7:50 x 18 implement tire)

4шт.

44

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel

24шт.
