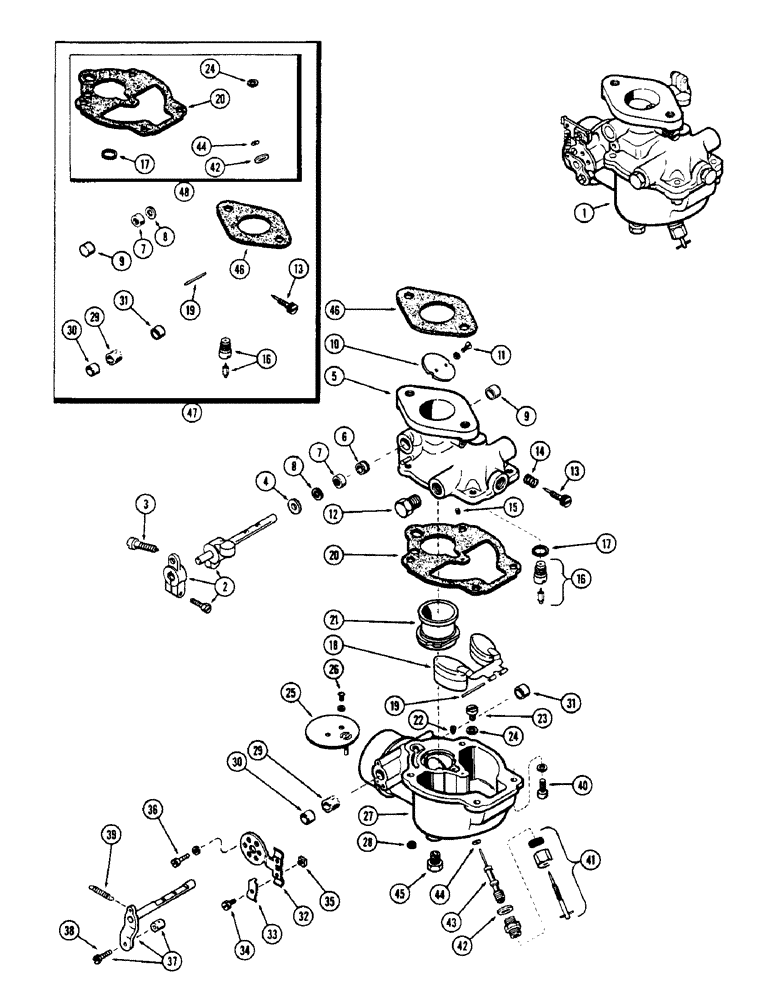

Запчасти Case IH 1150 (153A) - A37176 CARBURETOR, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

A37176

CARBURETOR ASSY. (Zenith #13108)

1шт.

2

B51246

SHAFT ASSY. - throttle

1шт.

3

B51582

SCREW - stop (#8-36 x 3/4")

1шт.

4

A40933

WASHER

- throttle

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A37176)

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B51528

SEAL

- throttle shaft

1шт.

8

B59360

RETAINER

WASHER - seal retainer

1шт.

9

A40612

PLUG

- throttle shaft hole

1шт.

10

B51211

PLATE

- throttle

1шт.

11

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

12

B51541

PLUG

- fuel inlet

1шт.

13

B51265

HOSE

NEEDLE - idle adjusting

1шт.

14

B51404

SPRING

- idle needle

1шт.

15

A40939

JET - idle

1шт.

16

A40938

VALVE

& SEAT - fuel (Matched)

1шт.

17

B51618

WASHER

- valve seat

1шт.

18

B51359

FLOAT

- fuel bowl

1шт.

19

B51433

AXLE

- float

1шт.

20

B51471

GASKET

- fowl

1шт.

21

A25170

VENTURI

1шт.

22

B51340

JET

- well vent

1шт.

23

A25173

JET

- main

1шт.

24

B51619

WASHER

- main jet

1шт.

25

B51365

PLATE

- choke

1шт.

26

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

27

B51180

BOWL

ASSY. - fuel

1шт.

28

B51442

FILTER

DISC - drain

1шт.

29

B51533

WASHER

- packing

1шт.

30

B51439

RETAINER

- packing

1шт.

31

B51509

PLUG

- choke shaft hole

1шт.

32

B51400

SUPPORT

BRACKET - choke

1шт.

33

B51403

CLIP

- choke rod

1шт.

34

B51580

SCREW

- clip

1шт.

35

B51594

X

NUT - clip screw

1шт.

36

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

37

A25176

SHAFT

ASSY. - choke

1шт.

38

A25179

SCREW - swivel, choke lever

1шт.

39

B51412

SPRING

- return, choke

1шт.

40

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

41

A25171

ADJUSTMENT ASSY. - main jet

1шт.

42

B51618

WASHER

- adjustment assy.

1шт.

43

A25175

JET

- discharge

1шт.

44

B51610

WASHER

- discharge jet

1шт.

45

B51541

PLUG

- drain, bowl (1/8" P.T.)

1шт.

46

G46826

GASKET

- flange (Shipped w/carburetor)

1шт.

47

CASA40940

KIT

REPAIR KIT (Includes ref. 7, 8, 9, 13, 16, 19, 29, 30, 31, 46 & 48)

1шт.

48

B51496

GASKET

KIT (Includes ref. 17, 20, 24, 42 & 44)

1шт.
