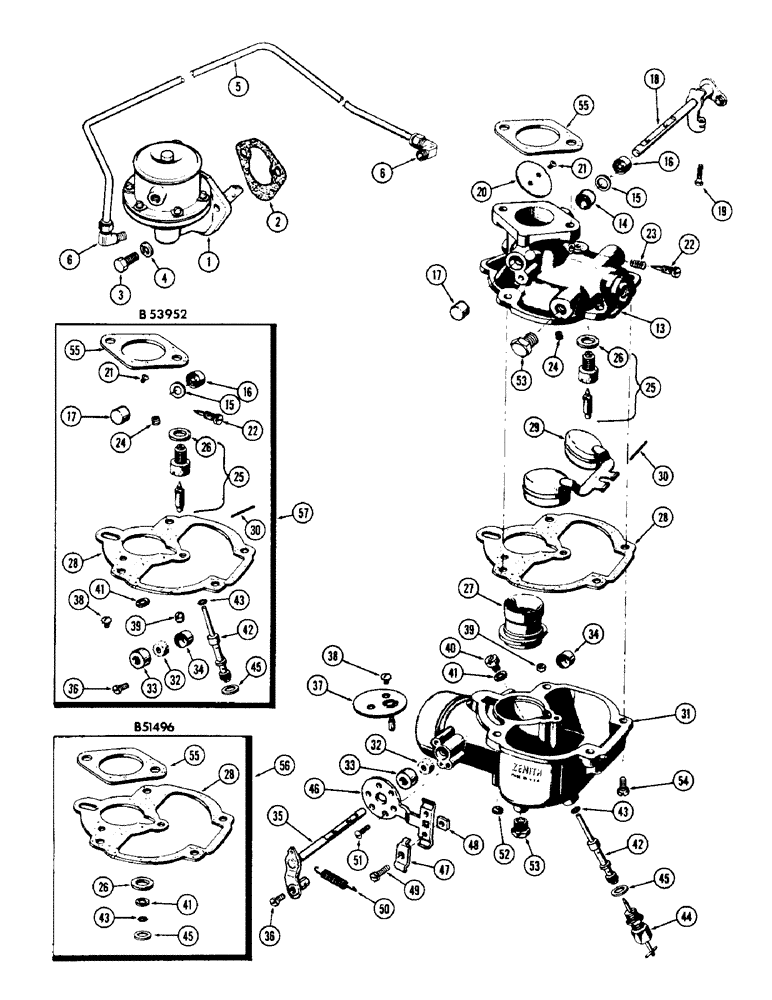

Запчасти Case IH 1150 (152) - FUEL PUMP AND A35819 CARBURETOR, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

G45778

PUMP

ASSY. - fuel

1шт.

2

G46902

GASKET

- fuel pump

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

G46289

LINE

- fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line

2шт.

A35819

CARBURETOR (Zenith #12542A) (Order A37176 page 153A)

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A35819)

1шт.

14

B51530

SPACER

- throttle lever

1шт.

15

B51416

RETAINER

- dust seal

1шт.

Part of Repair Kit P/N B53952

1шт.

16

B51528

SEAL

- dust, throttle shaft

1шт.

Part of Repair Kit P/N B53952

1шт.

17

B51438

PLUG

- throttle shaft hole

1шт.

Part of Repair Kit P/N B53952

1шт.

18

B51246

SHAFT ASSY. - throttle lever

1шт.

19

B51583

SCREW - throttle lever stop

1шт.

20

B59366

LARGE PLATE

DISC - throttle

1шт.

21

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle disc

2шт.

Part of Repair Kit P/N B53952

1шт.

22

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of Repair Kit P/N B53952

1шт.

23

B51404

SPRING

- idle adj. needle

1шт.

24

A25174

JET

- idle

1шт.

Part of Repair Kit P/N B53952

1шт.

25

B51343

HYDRAULIC VALVE

VALVE ASSY. - fuel seat

1шт.

Part of Repair Kit P/N B53952

1шт.

26

B51618

WASHER

- fuel valve seat (See item 56)

1шт.

Part of Repair Kit P/N B53952

1шт.

Part of Gasket Kit P/N B51496

1шт.

27

A25170

VENTURI

1шт.

28

B51471

GASKET

- bowl to body (See item 56)

1шт.

Part of Repair Kit P/N B53952

1шт.

Part of Gasket Kit P/N B51496

1шт.

29

B51359

FLOAT

- fuel level

1шт.

30

B51433

AXLE

- float pivot

1шт.

Part of Repair Kit P/N B53952

1шт.

31

B51180

BOWL

ASSY. - fuel

1шт.

32

B51533

WASHER

SEAL - dust, choke shaft

1шт.

Part of Repair Kit P/N B53952

1шт.

33

B51439

RETAINER

- dust seal

1шт.

Part of Repair Kit P/N B53952

1шт.

34

B51509

PLUG

- choke shaft hole

1шт.

Part of Repair Kit P/N B53952

1шт.

35

A25176

SHAFT

ASSY. - choke lever

1шт.

36

A25179

SCREW - swivel, choke cable ret.

1шт.

Part of Repair Kit P/N B53952

1шт.

37

B51365

PLATE

DISC - choke

1шт.

38

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke disc

2шт.

Part of Repair Kit P/N B53952

1шт.

39

B51340

JET

- wall vent

1шт.

Part of Repair Kit P/N B53952

1шт.

40

A25173

JET

- main

1шт.

41

B51619

WASHER

- main jet (See item 56)

1шт.

Part of Repair Kit P/N B53952

1шт.

Part of Gasket Kit P/N B51496

1шт.

42

A25175

JET

- discharge

1шт.

Part of Repair Kit P/N B53952

1шт.

43

B51610

WASHER

- discharge jet (See item 56)

1шт.

Part of Repair Kit P/N B53952

1шт.

Part of Gasket Kit P/N B51496

1шт.

44

B51330

ADJUSTER

ADJUSTMENT - main jet

1шт.

45

B51618

WASHER

- main jet adj. (See item 56)

1шт.

Part of Repair Kit P/N B53952

1шт.

Part of Gasket Kit P/N B51496

1шт.

46

B51400

SUPPORT

BRACKET ASSY. - choke

1шт.

47

B51403

CLIP

- choke wire

1шт.

48

B51594

X

NUT - choke wire clip

1шт.

49

B51580

SCREW

- choke wire clip ret.

1шт.

50

B51412

SPRING

- choke lever return

1шт.

51

B51458

SCREW,#8 - 32 x 0.37"

- choke brkt. ret.

1шт.

52

B51442

FILTER

SCREEN - intake drain

1шт.

53

B51541

PLUG

- bowl & body

2шт.

54

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

55

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of Repair Kit P/N B53952

1шт.

56

B51496

GASKET

KIT - Includes Refs., 26, 28, 41, 43 and 45

1шт.

57

B53952

KIT

REPAIR KIT - Includes Refs., 15, 16, 17, 21, 22, 24, 25, 26, 28, 30, 32, 33, 34, 36, 38, 39, 41, 42, 43, 45 and 55

1шт.
