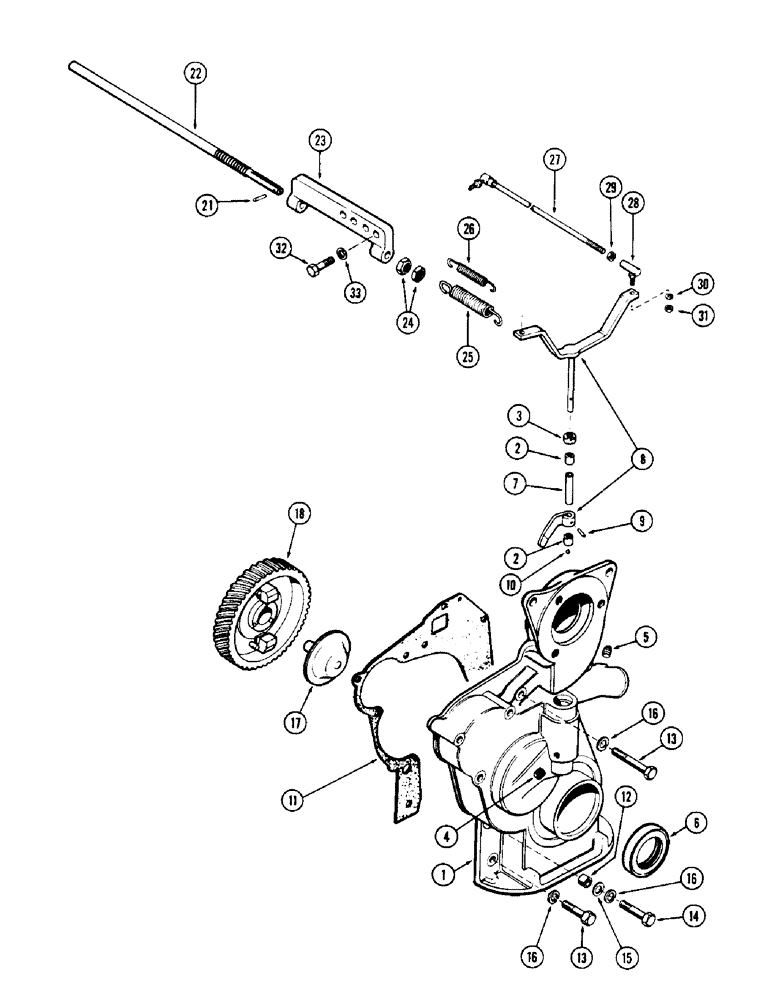

Запчасти Case IH 1150 (150) - TIMING GEAR COVER AND GOVERNOR, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

A36979

COVER

ASSY. - timing gear

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, gov. shaft

2шт.

3

A30011

SEAL

- dust (3/8 x 13/16 x 3/8" felt)

1шт.

4

A30016

FITTING

PLUG - housing (1/8" P.T. sltd. hd.)

1шт.

5

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" P.T. sq. hd.

1шт.

6

A36609

OIL SEAL

- oil, c'shft., front (2-1/8 x 3 x 1/2")

1шт.

7

A30012

SPACER

- thrust, gov. shaft (25/64 x 1/2 x 1-11/16")

1шт.

8

A30125

SHAFT

LEVER & ARM ASSY. - governor control

1шт.

9

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Lever to arm 1/8" x 3/4", Slotted

1шт.

10

211-5

BALL,3/16" Dia

- thrust (.) 3/16" Dia

1шт.

11

A30010

GASKET

-, Serial Range: cover-block

1шт.

12

A29442

RING

- dowel, cover locating (13/32 x 9/16 x 5/8")

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Cover Hex, 3/8"-16 x 2 1/4", G5

2шт.

13

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex.)

3шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cover Hex, 3/8"-16 x 2", G5

2шт.

15

195-25

WASHER,3/8"

(13/32 x 13/16 x 1/16")

2шт.

16

92-6

LOCK WASHER,3/8"

9шт.

17

A29957

SHAFT

ASSY. - governor

1шт.

18

G37066

GEAR

- camshaft, w/gov. weights

1шт.

21

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Control rod 1/8" x 3/8", Slotted

1шт.

22

A36369

ROD

- governor control

1шт.

23

G2133

GUIDE

- gov. control rod

1шт.

24

131-412

NUT - control rod (7/16" N.F. PAL)

2шт.

25

G48511

SPRING

- gov. speed control, outer

1шт.

26

A37005

SPRING

- gov. speed control (Inner)

1шт.

27

G45310

ROD ASSY.

-, Serial Range: gov.-carburetor

1шт.

28

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSY. - ball

1шт.

29

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-114

NUT,1/4"-28, G5

(1/4" N.F. hex.)

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.
