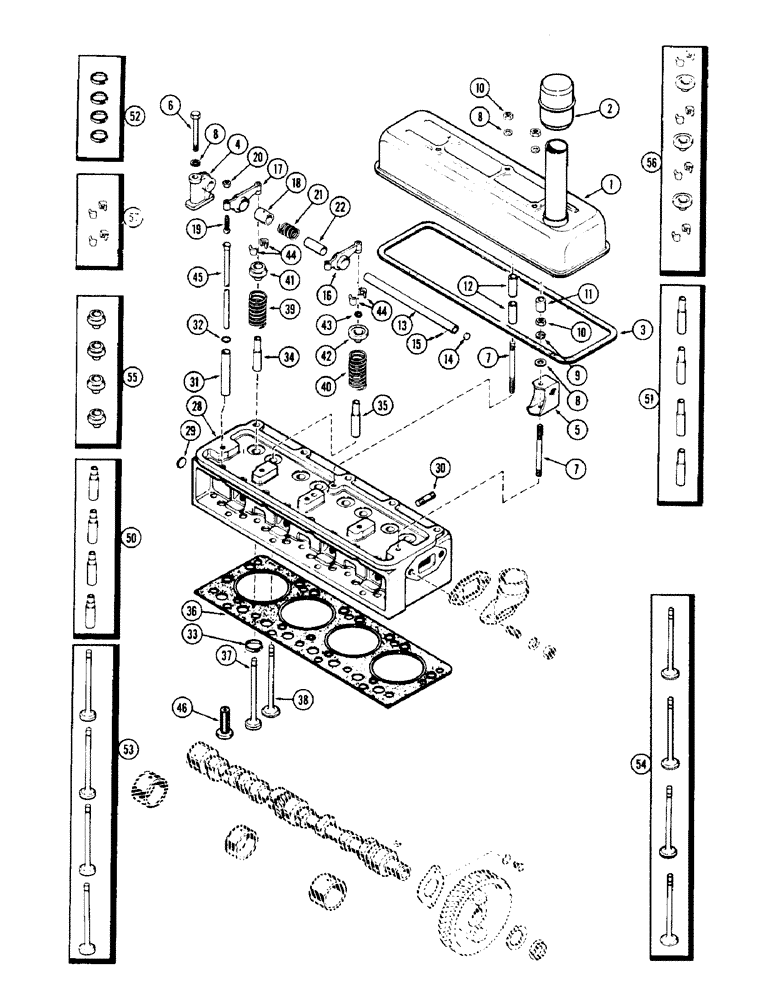

Запчасти Case IH 1150 (146) - CYLINDER HEAD ASSEMBLY, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

A36186

COVER - cylinder head

1шт.

2

A36608

CAP

- breather

1шт.

3

A30009

GASKET

- cyl. head cover

1шт.

4

G2107

BRACKET

- rocker shaft, center

1шт.

5

G46250

BRACKET

- rocker shaft

4шт.

6

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- bracket (3/8 x 2-3/4" N.C. hex.)

3шт.

7

G49505

STUD

- bracket & cover (3/8" N.C. x 4-5/8")

3шт.

8

A29277

WASHER

(13/32 x 1 x 1/8")

5шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

25-106

NUT,3/8"-16, G5

(3/8" N.C. hex.)

5шт.

11

A30065

SPACER

- cover (17/32" high)

2шт.

12

A29999

SPACER

- cover (19/32" high)

2шт.

13

A29444

SHAFT

- rocker arm

2шт.

14

A26796

PLUG

- rocker shaft

2шт.

15

139-205

PIN - rocker shaft 2/0 x 3/4", Tapered

2шт.

16

G45234

ARM

ASSY. - rocker, right hand (Incl. items 18, 19 & 20)

4шт.

17

G45235

ARM

ASSY. - rocker, left hand (Incl. items 18, 19 & 20)

4шт.

18

A31055

BUSHING

(39/64 x 3/4 x 1")

1шт.

19

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

(5/16" N.F. half hex.)

1шт.

21

A30007

SPRING

- rocker arms

4шт.

22

A30008

SPACER

- rocker arms

2шт.

28

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder

1шт.

29

A30079

X

PLUG (1-1/8" expansion)

1шт.

30

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

7шт.

31

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

32

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube (11/16 x 7/8 x 3/32")

8шт.

33

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 52)

4шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 50)

4шт.

35

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 51)

4шт.

36

G46870

CYLINDER HEAD GASKET

- cylinder head

1шт.

37

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 53)

4шт.

38

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 54)

4шт.

39

G10004

SPRING

- exhaust valve (2-3/16" free length)

4шт.

40

A30075

WHEEL NUT

SPRING - intake valve (2-3/8" free length)

4шт.

41

NSS

NOT SOLD SEPARAT

CAP ASSY. - roto, exhaust valve (Order ref. 55)

4шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 56)

4шт.

43

G46851

SEAL

- intake valve (19/64 x 27/64 x 5/64")

4шт.

44

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order ref. 57)

16шт.

45

G11086

ROD

- push

8шт.

46

A30006

TAPPET

- valve

8шт.

50

A30270

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

51

G10269

KIT

GUIDE KT - intake valve (Set of 4)

1шт.

52

G11960

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

53

G11962

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 4)

1шт.

54

G11961

VALVE

KIT - intake (Set of 4)

1шт.

55

G11928

CAP

ROTO CAP KIT - exhaust valve (Set of 4)

1шт.

56

G11927

RETAINER

KIT - intake valve (Set of 4 retainers & 8 locks)

1шт.

57

G11929

LOCK

KIT - valve spring (Set of 4)

4шт.
