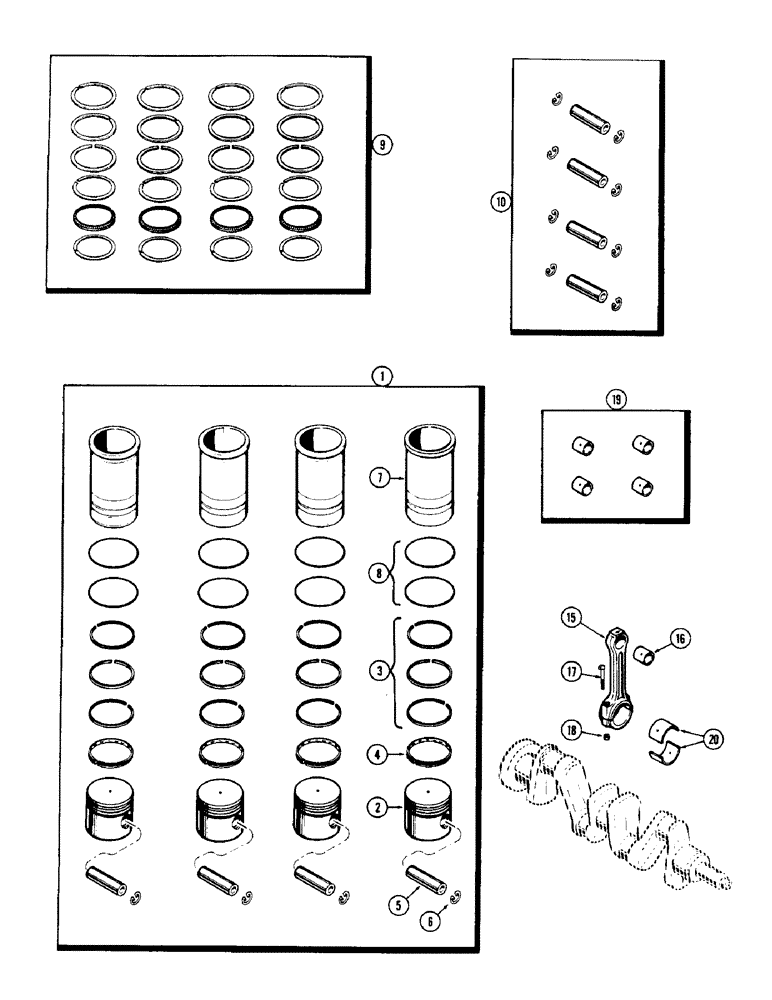

Запчасти Case IH 1150 (144) - PISTON ASSEMBLY, CONNECTING RODS AND BRGS., 159 SPARK IGNITION (10) - ENGINE

1

G11958

SET

PISTON & SLEEVE SET (Set of 4)

1шт.

2

G2105

PISTON

(3-1/2" bore)

4шт.

3

G4810

RING, PISTON

RING - compression (1st, 2nd & 3rd groove) (See ref. 9)

12шт.

4

G4811

RING, PISTON

RING - oil control (See ref. 9)

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

6

A26915

RING, SNAP

RING - snap, piston pin retaining

8шт.

7

G2104

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner)

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

9

G11994

PACKAGE, RINGS

RING SET - re-ring (Set of 4)

1шт.

10

A36030

KIT

PIN KIT - w/ret. rings (Set of 4)

1шт.

15

G11172

STEM

ROD ASSY. - connecting

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 19)

1шт.

17

G11701

BOLT

- conn. rod cap

2шт.

18

G49060

NUT

- cap bolt

2шт.

19

G11922

BUSHING

KIT - piston pin (Set of 4)

1шт.

20

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.) (Set of 2)

4шт.

20

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002") (Set of 2)

4шт.

20

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010") (Set of 2)

4шт.

20

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020") (Set of 2)

4шт.

20

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030") (Set of 2)

4шт.
