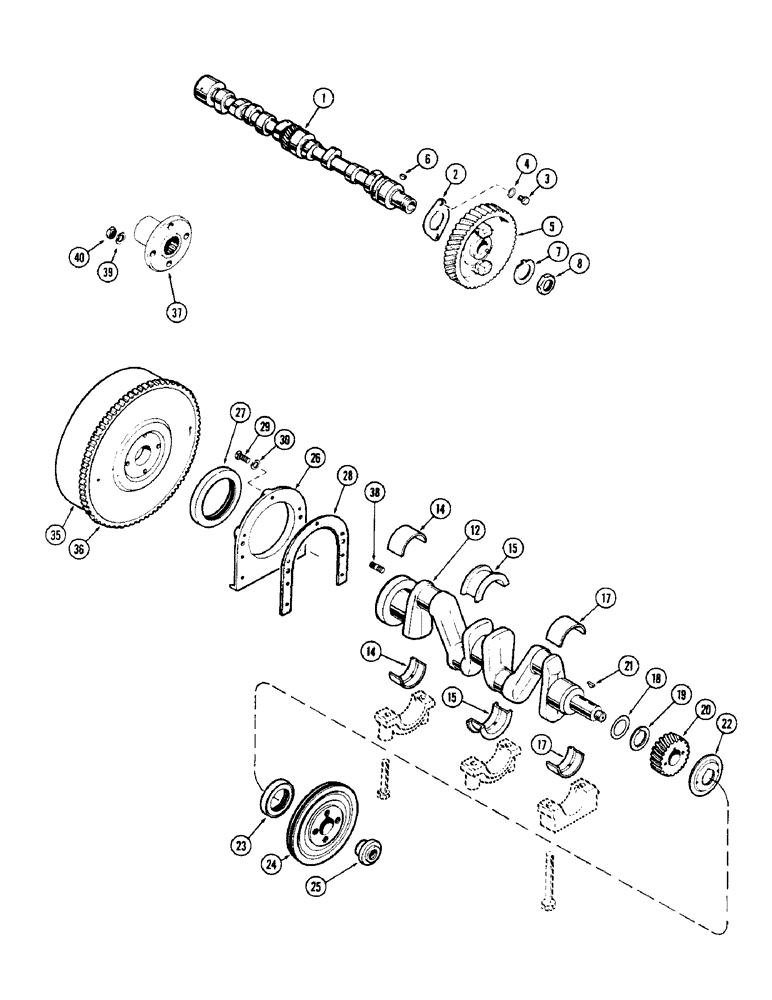

Запчасти Case IH 1150 (142) - CAMSHAFT, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

G2049

CAMSHAFT

1шт.

2

A29290

PLATE

- thrust, camshaft

1шт.

3

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- plate (5/16 x 1/2" N.C. spec.)

2шт.

4

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

5

G37066

GEAR

- camshaft timing

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Timing gear #6, 5/32" x 5/8"

1шт.

7

A29438

LOCK NUT

WASHER - camshaft nut (Tab)

1шт.

8

A30063

NUT

- timing gear ret.

1шт.

12

A37210

CRANKSHAFT

ASSY. CRANKSHAFT AND FLYWHEEL

1шт.

14

G37051

KIT

INSERT ASSY. - main brg., rear (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

14

G37052

KIT

INSERT ASSY. - main brg., rear (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

14

G37053

KIT

INSERT ASSY. - main brg., rear (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

14

G37054

KIT

INSERT ASSY. - main brg., rear (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

15

G37047

KIT

INSERT ASSY. - main brg., center (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

15

G37048

KIT

INSERT ASSY. - main brg., center (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

15

G37049

KIT

INSERT ASSY. - main brg., center (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

15

G37050

KIT

INSERT ASSY. - main brg., center (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

17

G37043

KIT

INSERT ASSY. - main brg., front (Std.) CRANKSHAFT AND FLYWHEEL

1шт.

17

G37044

KIT

INSERT ASSY. - main brg., front (-.002") CRANKSHAFT AND FLYWHEEL

1шт.

17

G37045

KIT

INSERT ASSY. - main brg., front (-.020") CRANKSHAFT AND FLYWHEEL

1шт.

17

G37046

KIT

INSERT ASSY. - main brg., front (-.040") CRANKSHAFT AND FLYWHEEL

1шт.

18

A29293

SHIM,.010" Thk

Thrust washer, Crankshaft and flywheel .010" Thk

1шт.

19

A29294

BUSHING

WASHER - thrust, timing gear CRANKSHAFT AND FLYWHEEL

1шт.

20

A29263

GEAR

- crankshaft timing CRANKSHAFT AND FLYWHEEL

1шт.

21

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - timing gear & pulley (1/4 x 1-1/16" Hi-Pro) CRANKSHAFT AND FLYWHEEL

2шт.

22

A29259

SLINGER

- oil CRANKSHAFT AND FLYWHEEL

1шт.

23

A36609

OIL SEAL

- oil, crankshaft, front (2-1/8 x 3 x 1/2") CRANKSHAFT AND FLYWHEEL

1шт.

24

G11342

X

PULLEY - fan & generator drive CRANKSHAFT AND FLYWHEEL

1шт.

25

A35673

NUT

- pulley retaining CRANKSHAFT AND FLYWHEEL

1шт.

26

G2017

RETAINER

- rear oil seal CRANKSHAFT AND FLYWHEEL

1шт.

27

A36610

OIL SEAL

- oil, crankshaft, rear (4 x 5 x 1/2") CRANKSHAFT AND FLYWHEEL

1шт.

28

G46802

GASKET

- oil seal retainer CRANKSHAFT AND FLYWHEEL

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft and flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

29

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Retainer, Crankshaft and flywheel Hex, 1/4"-20 x 1", G5

3шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft and flywheel 1/4"

7шт.

35

G37061

FLYWHEEL ASSY. CRANKSHAFT AND FLYWHEEL

1шт.

36

G11710

GEAR

- starter ring CRANKSHAFT AND FLYWHEEL

1шт.

37

F3408

HUB - flywheel CRANKSHAFT AND FLYWHEEL

1шт.

38

G11374

STUD

- flywheel (7/16" N.F. x 2-1/4") CRANKSHAFT AND FLYWHEEL

4шт.

39

92-7

LOCK WASHER,7/16"

crankshaft and flywheel 7/16"

4шт.

40

25-117

NUT,7/16"-20, G5

(7/16" N.F. hex.) CRANKSHAFT AND FLYWHEEL

4шт.
