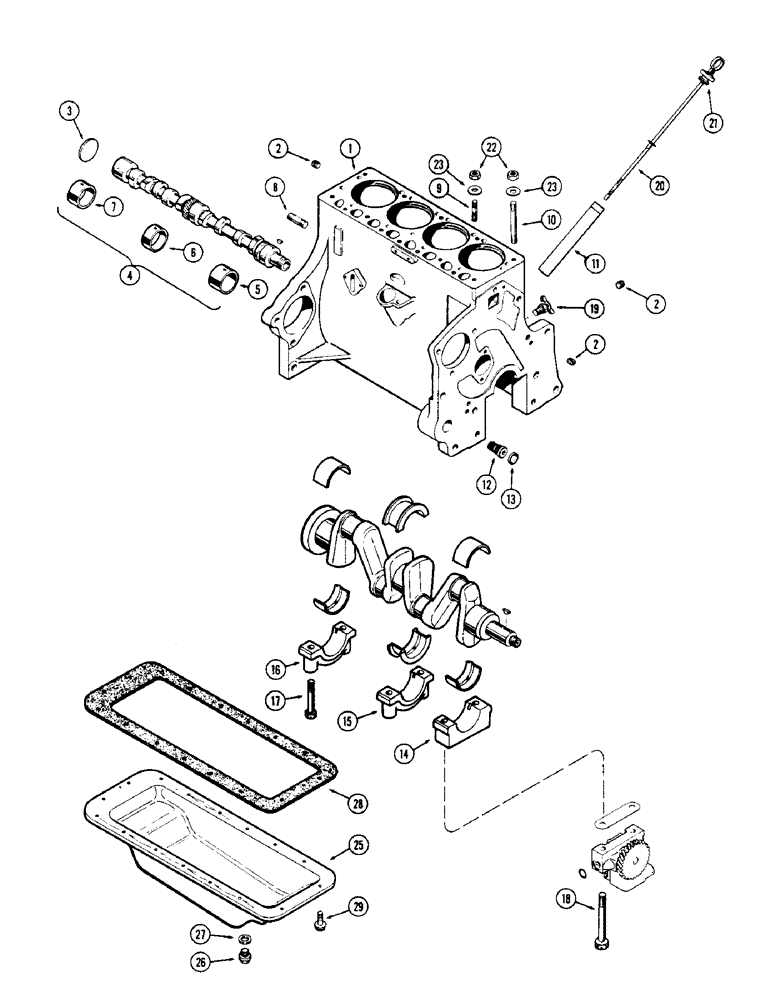

Запчасти Case IH 1150 (140) - CYLINDER BLOCK ASSEMBLY, 159 SPARK IGNITION ENGINE, WITH FLANGE MOUNTED OIL FILTER (10) - ENGINE

A40815

X

BLOCK ASSY. - short (Not illust.) (Includes crankshaft and brgs., camshaft and gear, pistons and rods, sleeves and oil pump)

1шт.

1

A40816

SKELETON ENGINE

STRIPPED BLOCK ASSY.

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

A39241

PLUG,Exp, 2.12" dia

- camshaft opening (2-1/8" dia.)

1шт.

4

A41225

KIT

BUSHING SET - camshaft (Pre-sized)

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-5/16" wide)

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - center (23/32" wide)

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - front (1-3/16" wide)

1шт.

8

A29333

STUD

- engine mounting (5/8" x 3")

2шт.

9

A30057

STUD

- head (1/2 x 2")

9шт.

10

A29436

STUD

- head (1/2 x 5-7/8")

5шт.

11

A37149

TUBE

- dipstick, & oil filler

1шт.

12

A153552

ADAPTER

- oil filter

1шт.

13

A37207

X

PLUG - filter adapter

1шт.

14

G2035

CAP

- crankshaft front bearing

1шт.

15

G2036

CAP

- crankshaft front bearing

1шт.

16

G2037

CAP

- crankshaft rear bearing

1шт.

17

G49037

BOLT

- bearing cap (1/2 x 3")

4шт.

18

G49059

BOLT

- frt. brg. cap (1/2 x 4-3/4")

2шт.

19

217-103

COCK, DRAIN

COCK - drain (1/4" P.T.)

1шт.

20

A37148

DIPSTICK

- oil level

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

22

A30021

NUT

- head stud (1/2" N.F.)

14шт.

23

G49404

WASHER

- head stud (17/32 x 27/32 x 1/16")

14шт.

25

A36726

PAN

ASSY. - oil OIL PAN

1шт.

26

A14280

PLUG

- drain, oil pan

1шт.

27

A27927

OIL PAN GASKET SET

- drain plug OIL PAN

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710 from page 148)

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

16шт.
