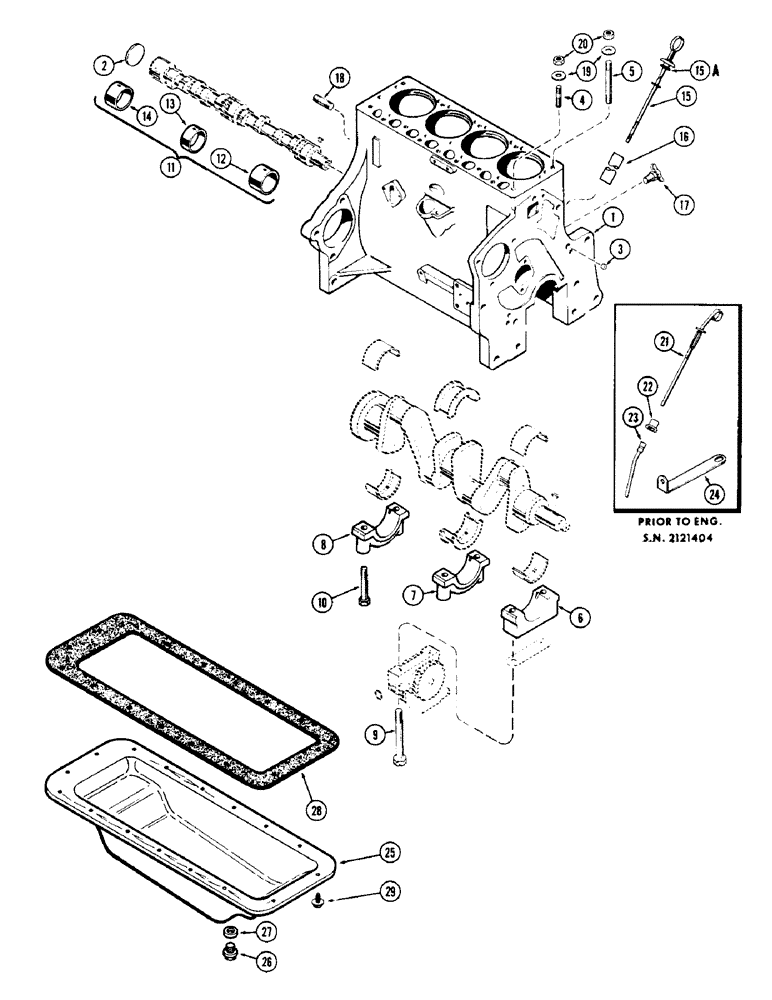

Запчасти Case IH 1150 (138) - CYLINDER BLOCK ASSEMBLY, 159 SPARK IGNITION ENGINE, WITH BRACKET MOUNTED OIL FILTER (10) - ENGINE

G10507

X

BLOCK ASSY. - short (Casting no. G2089) Order A40581

1шт.

A40589

SKELETON ENGINE

BLOCK ASSY. - short (Casting no. A36777) (Includes stripped block, crankshaft & brgs., camshaft & gear, pistons & sleeves, conn. rods and oil pump)

1шт.

1

G11957

BLOCK ASSY. - stripped (Casting no. G2089) (Order A40587)

1шт.

1

A40587

BLOCK ASSY. - stripped (Casting no. A36777)

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" expansion)

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery (1/4" P.T., ctsk. hd.)

3шт.

4

A30057

STUD

- cyl. head (1/2" N.C./N.F. x 2")

9шт.

5

A29436

STUD

- cyl. head (1/2" N.C./N.F. x 5-7/8")

5шт.

6

G2035

CAP

- main brg., front

1шт.

7

G2036

CAP

- main brg., center

1шт.

8

G2037

CAP

- main brg., rear

1шт.

9

G49059

BOLT

- front brg. cap (Also holds oil pump) (1/2 x 4-3/4" N.C. spec.)

2шт.

10

G49037

BOLT

- rear & ctr. brg. caps (1/2" x 3" N.C. spec.)

4шт.

11

A41225

KIT

BUSHING SET - camshaft

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - front (1-5/16" wide)

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - center (23/32" wide)

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-3/16" wide)

1шт.

15

A37148

DIPSTICK

- oil level (1st used eng. S.N. 2121404)

1шт.

15a

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

16

A37149

TUBE

- dipstick (1st used eng. S.N. 2121404)

1шт.

17

217-103

COCK, DRAIN

COCK - drain, cyl. block

1шт.

18

A29333

STUD

- engine mtg. (5/8" N.C. x 3")

2шт.

19

G49404

WASHER

- cyl. head studs (17/32 x 27/32 x 1/16")

14шт.

20

A30021

NUT

- cyl. head studs (1/2" N.F. hex., spec.)

14шт.

21

A36520

DIPSTICK - oil level (Prior to eng. S.N. 2121404)

1шт.

22

G46852

GASKET

SEAL - dipstick

1шт.

23

A36181

TUBE - dipstick (Prior to eng. S.N. 2121404)

1шт.

24

A37188

GASKET

BRACE - dipstick support (Prior to eng. S.N. 2121404)

1шт.

25

A36726

PAN

ASSY. - oil OIL PAN

1шт.

26

A14280

PLUG

- drain, oil pan

1шт.

27

A27927

OIL PAN GASKET SET

- drain plug OIL PAN

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710)

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSY. - oil pan

16шт.
