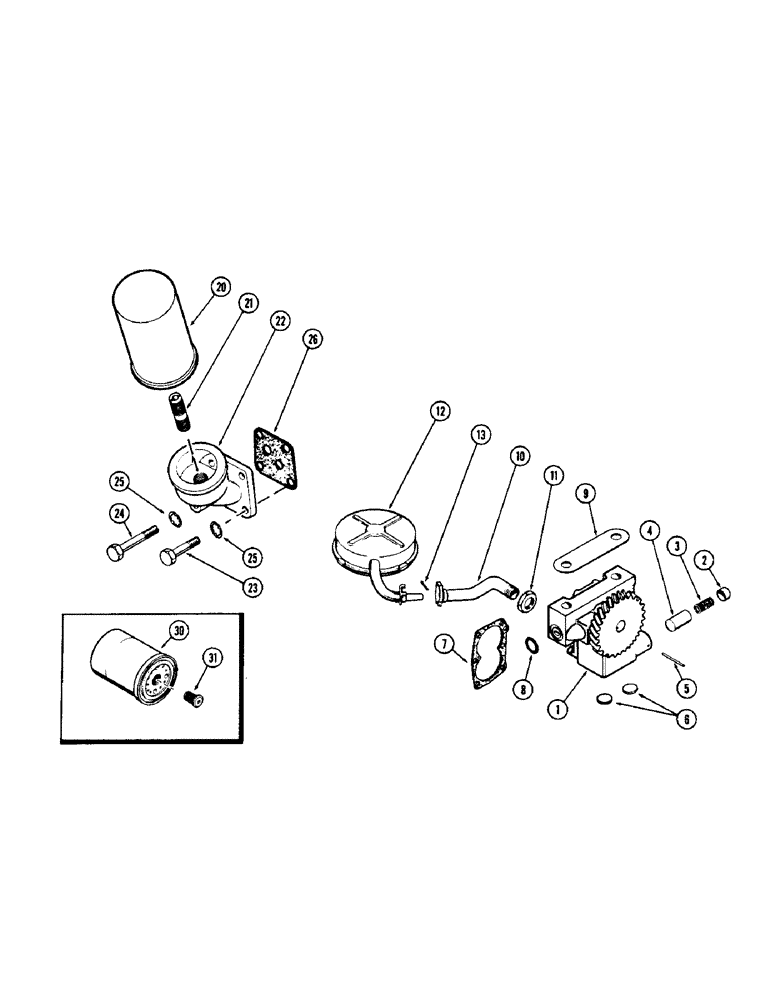

Запчасти Case IH 1150 (137A) - OIL PUMP, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil, complete

1шт.

2

A29260

RETAINER

CAP - relief valve spring

1шт.

3

G48513

VALVE SPRING

SPRING - pressure, relief valve (2" free length)

1шт.

4

A155144

VALVE, PRESSURE RELI

- relief

1шт.

5

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Cap 1/8" x 1 1/8", Slotted

1шт.

6

41-102

PLUG,Exp, 1/2"

- pump body (1/2" expansion)

2шт.

7

G46852

GASKET

- pump cover

1шт.

8

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 3/32")

1шт.

9

G11337

SHIM,.002" Thk

Pump to bearing cap .002" Thk

1шт.

9

G11338

SHIM,.005" Thk

Pump to bearing cap .005" Thk

1шт.

10

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

11

223-207

LOCK NUT

NUT - pipe to pump (3/8" conduit locknut)

1шт.

12

A30126

FLOAT - oil pan

1шт.

13

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

20

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210) OIL FILTER BRACKET MOUNTED

1шт.

21

G49074

ADAPTER - filter OIL FILTER BRACKET MOUNTED

1шт.

22

G2122

BRACKET - filter OIL FILTER BRACKET MOUNTED

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket, oil filter bracket mounted Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket, oil filter bracket mounted Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket, Oil filter bracket mounted Hex, 5/16"-18 x 2 1/4", G5

1шт.

25

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Oil filter bracket mounted Int Tooth, 5/16"

4шт.

26

G46854

GASKET

- filter brkt. OIL FILTER BRACKET MOUNTED

1шт.

30

A37189

FILTER, ELEMENT

FILTER - oil, engine OIL FILTER FLANGE MOUNTED

1шт.

31

A153552

ADAPTER

- filter to block OIL FILTER FLANGE MOUNTED

1шт.
