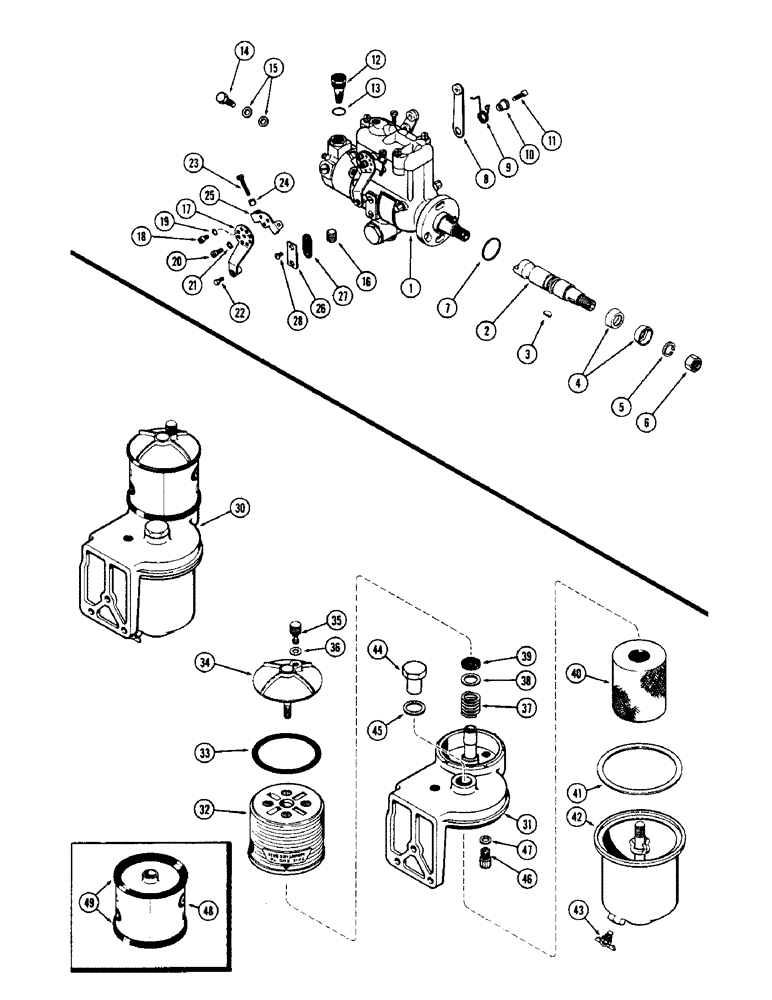

Запчасти Case IH 1150 (136) - A36437 FUEL INJECTION PUMP, 188 DIESEL ENGINE (10) - ENGINE

1

A36437

PUMP ASSY. - fuel injection

1шт.

2

G47113

SHAFT

- pump drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

G49081

WASHER

- lock, drive shaft nut

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- drive shaft (9/16" N.F. half hex.)

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pump

1шт.

8

G45338

ARM

- throttle

1шт.

9

G48505

SPRING

- throttle arm return

1шт.

10

G49621

RETAINER

- throttle arm spring

1шт.

11

G49079

SET SCREW

SCREW - throttle arm & retainer

1шт.

12

73671

ROPE

FILTER - fuel inlet

1шт.

13

51200280

SEAL

- filter

1шт.

14

73613

SCREW

FITTING - fuel line (Banjo type)

4шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - banjo fitting

8шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- end cover (1/4" P.T., ctsk. hd.)

1шт.

17

G45337

ARM

- fuel shut-off

1шт.

18

73646

SCREW

- shut-off arm positioning

1шт.

19

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - arm positioning screw

1шт.

20

73670

SCREW

- shut-off arm retaining

1шт.

21

73630

LOCK WASHER

WASHER - arm ret. screw

1шт.

22

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- clamp, fuel shut-off cable

1шт.

23

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

24

86837534

LOCK WASHER

- high idle screw

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

26

G46330

COVER

- timing hole

1шт.

27

51200272

GASKET

- timing hole cover

1шт.

28

51200263

SCREW

- timing hole cover

2шт.

30

A35735

FILTER

ASSY. - fuel A35735 FUEL FILTERS

1шт.

31

A35664

HEAD

- filters A35735 FUEL FILTERS

1шт.

32

A37187

FILTER, ELEMENT

FILTER KIT - final A35735 FUEL FILTERS

1шт.

33

A37188

GASKET

- final filter (See ref. 49) A35735 FUEL FILTERS

1шт.

34

A35672

CAP

ASSY. - final filter A35735 FUEL FILTERS

1шт.

35

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - air bleeder A35735 FUEL FILTERS

1шт.

36

NLS

NO LONGER SERVICED

GASKET - air bleeder valve A35735 FUEL FILTERS

1шт.

37

A35669

SPRING

- filter A35735 FUEL FILTERS

1шт.

38

A35670

WASHER

- spring seat A35735 FUEL FILTERS

1шт.

39

A35671

GASKET

- filter end A35735 FUEL FILTERS

1шт.

40

A35863

FILTER, ELEMENT

ELEMENT ASSY. - primary filter A35735 FUEL FILTERS

1шт.

41

A28056

GASKET

- element body to head A35735 FUEL FILTERS

1шт.

42

A37099

FUEL FILTER

BODY ASSY. - primary filter A35735 FUEL FILTERS

1шт.

43

217-102

PLUG, DRAIN

COCK - drain (1/8" P.T.) A35735 FUEL FILTERS

1шт.

44

A21131

NUT

- primary element ret. A35735 FUEL FILTERS

1шт.

45

A28055

GASKET

- element ret. nut A35735 FUEL FILTERS

1шт.

46

G49080

PLUG

- drain, final filter A35735 FUEL FILTERS

1шт.

47

G46886

O-RING

GASKET - drain plug A35735 FUEL FILTERS

1шт.

48

A35668

FILTER

ASSY. - final (Order ref 32) A35735 FUEL FILTERS

1шт.

49

G46895

GASKET

- final filter (See ref. 33) A35735 FUEL FILTERS

2шт.
