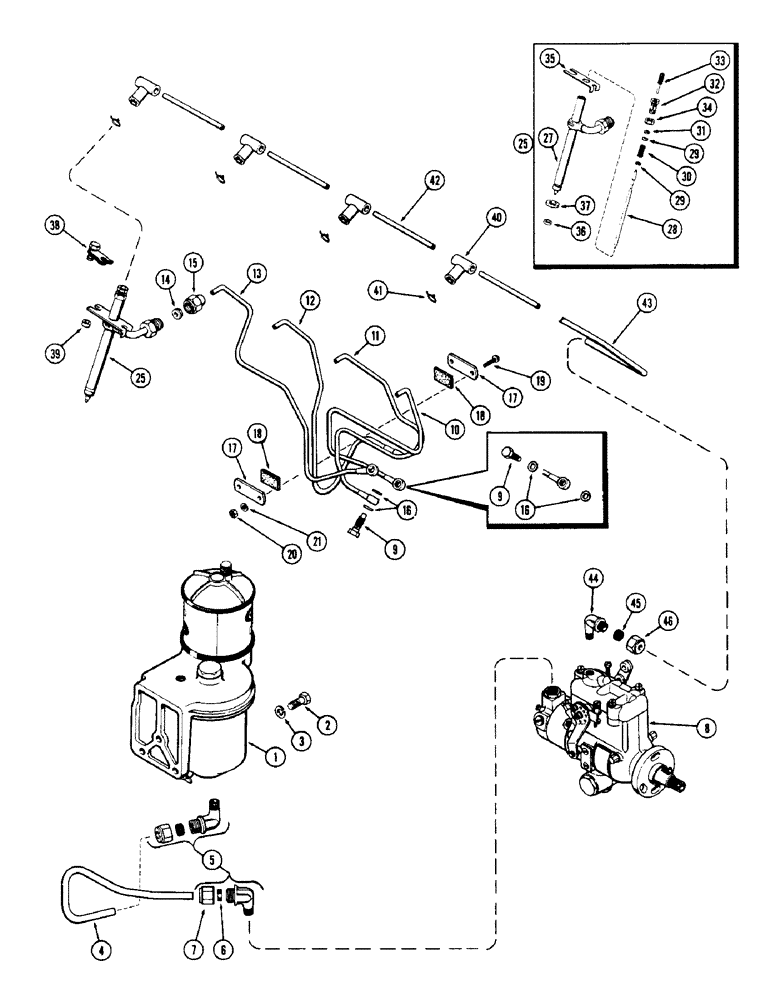

Запчасти Case IH 1150 (135A) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2627377 (10) - ENGINE

1

A35735

FILTER

ASSY. - fuel (See page 136)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" O.D. x 1/4" P.T.

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A36437

PUMP ASSY. - injection (See page 136)

1шт.

9

73613

SCREW

-, Serial Range: tube-pump

4шт.

10

A41391

TUBE

ASSY. - pump to #1 cyl. (Incl. ref. 14, 15 & 16)

1шт.

11

A41392

TUBE

ASSY. - pump to #2 cyl. (Incl. ref. 14, 15 & 16)

1шт.

12

A41393

TUBE

ASSY. - pump to #3 cyl. (Incl. ref. 14, 15 & 16)

1шт.

13

A41394

TUBE

ASSY. - pump to #4 cyl. (Incl. ref. 14, 15 & 16)

1шт.

14

A37850

PIPE FITTING

SLEEVE - tube

1шт.

15

A37851

NUT

- tube

1шт.

16

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - banjo fitting

2шт.

17

A27978

CLAMP

- injection tubes

2шт.

18

A27980

CUSHION

- tube clamp

2шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10-24 x 1" rd. hd.)

2шт.

20

129-7

NUT,Hex, #10 - 24

- ( hex.) #10-24

2шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

A37836

NOZZLE

ASSY. - fuel injector (See note)

4шт.

A140829R

REMAN-INJECT NOZZLE

1150 1ST USED ENGINE SERIAL NUMBER 2627377, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

29

A41401

SEAT

- pressure spring

2шт.

30

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

31

A41407

WASHER

- bolt type

1шт.

32

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

33

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

34

A41404

NUT

- lock

1шт.

35

A41405

PLATE

- locating, nozzle

1шт.

36

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

37

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

38

A37837

CLAMP

ASSY. - injector nozzle

4шт.

39

A37839

SPACER

- nozzle clamp

4шт.

40

A37838

BOOT

- nozzle leak-off

4шт.

41

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - boot

4шт.

42

A37840

TUBE

- nozzle leak-off

3шт.

43

A38158

TUBE

-, Serial Range: leak-off-pump

1шт.

44

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" P.T.

1шт.

45

222-102

SLEEVE,1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.
