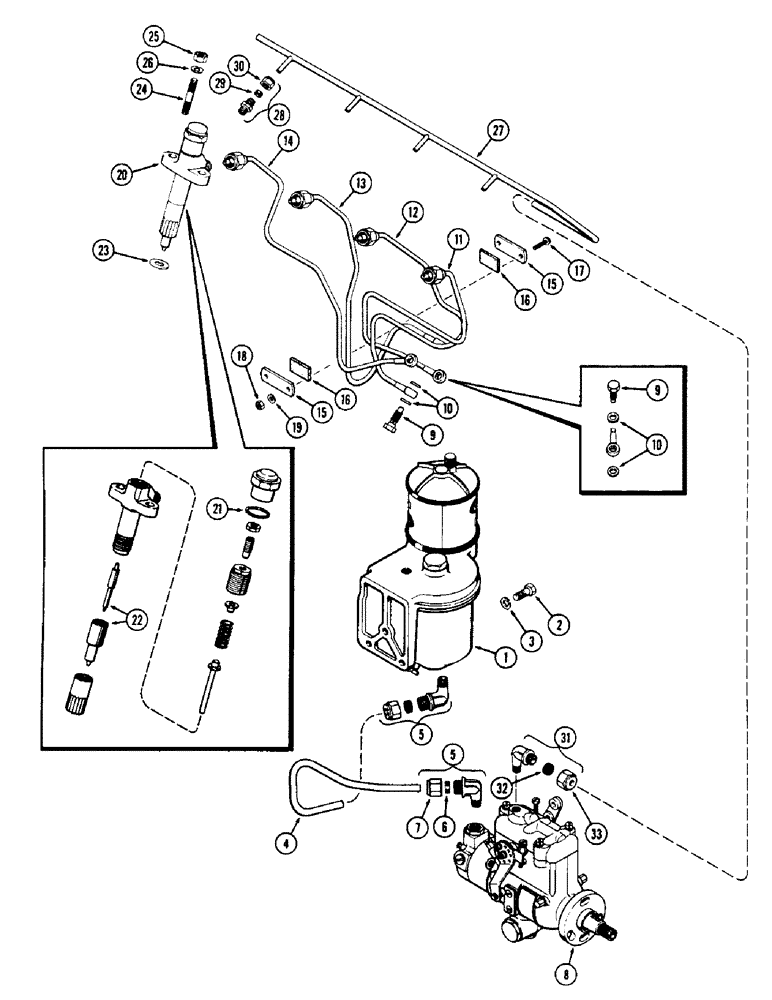

Запчасти Case IH 1150 (134) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377 (10) - ENGINE

1

A35735

FILTER

ASSY. - fuel (See page 136)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - (1/4" P.T.) (See inset A)

3шт.

6

222-104

SLEEVE,3/8" Tube

- (For ) 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - (1/4" P.T.)

1шт.

8

A36437

PUMP ASSY. - injection (See page 136)

1шт.

9

73613

SCREW

-, Serial Range: tube-pump

4шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - banjo fitting

8шт.

11

A35058

TUBE

ASSY. - pump to #1 cyl. (Incl. ref. 9)

1шт.

12

A35059

TUBE

ASSY. - pump to #2 cyl. (Incl. ref. 9)

1шт.

13

A35060

TUBE

ASSY. - pump to #3 cyl. (Incl. ref. 9)

1шт.

14

A35061

TUBE

ASSY. - pump to #4 cyl. (Incl. ref. 9)

1шт.

15

A27978

CLAMP

- injection tubes

2шт.

16

A27980

CUSHION

- injection tubes

2шт.

17

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamps (#10-24 x 1" rd. hd.)

2шт.

18

129-7

NUT,Hex, #10 - 24

- ( hex.) #10-24

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

A49056

NOZZLE CAP

INJECTOR ASSY. - fuel

4шт.

21

G46885

GASKET

- injector cap

1шт.

22

A35085

NOZZLE CAP

NOZZLE ASSY. - fuel atomizer

1шт.

23

G49068

GASKET

- nozzle holder seat

1шт.

24

A29431

STUD

- injector (3/8" N.C. x 1-3/4")

8шт.

25

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.

27

A36511

PIPE

LINE - fuel leak-off

1шт.

28

222-21

FITTING,7/16"-24 x 1/8" NPTF

4шт.

29

222-101

SLEEVE,3/16" Tube

- (For ) 3/16" Tube

1шт.

30

222-111

TUBE NUT,7/16" - 24

NUT - (1/8" P.T.)

1шт.

31

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - (1/8" P.T.)

1шт.

32

222-103

SLEEVE,5/16" Tube

1шт.

33

222-113

TUBE NUT,9/16"-24

NUT - (1/8" P.T.)

1шт.
