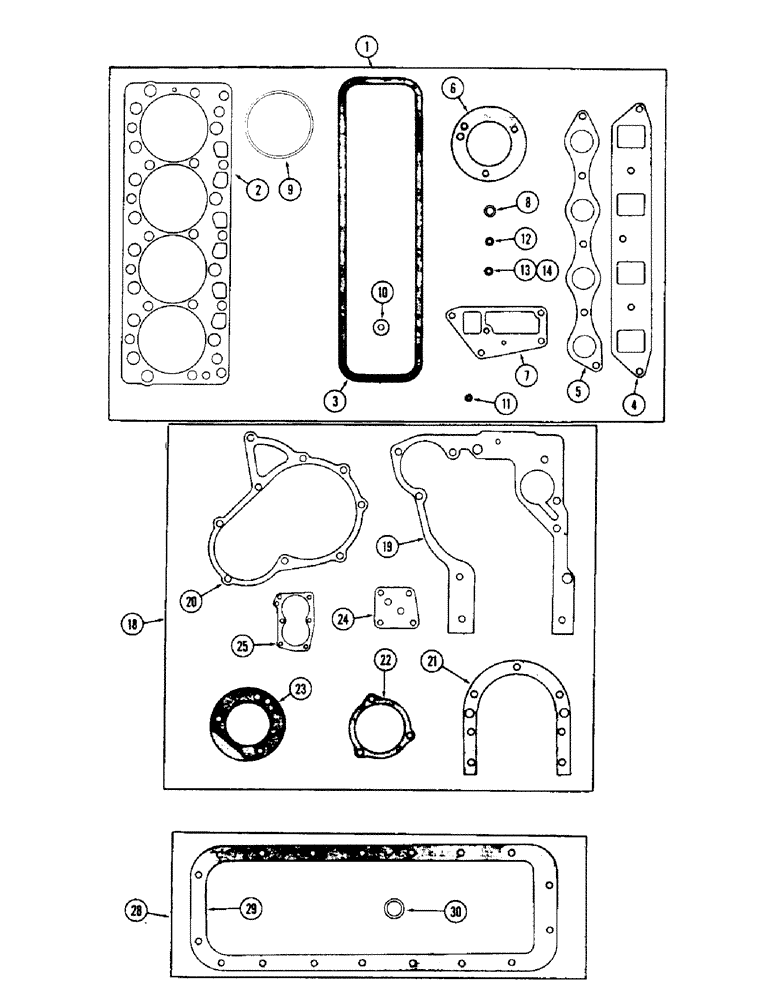

Запчасти Case IH 1150 (130) - ENGINE GASKET KITS, 188 DIESEL ENGINE (10) - ENGINE

1

A41425

GASKET

VALVE GRIND KIT (See note)

1шт.

2

A36877

GASKET

- cylinder head

1шт.

3

G46866

GASKET

- cylinder head cover

1шт.

4

G46871

GASKET

- intake manifold

1шт.

5

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

6

A38083

GASKET

- water pump

1шт.

7

A38084

GASKET,1.27mm Thk

- water inlet

1шт.

8

G49068

GASKET

- inj. nozzle (13/32 x 45/64 x 14 ga. copper)

4шт.

9

A36900

RING, PISTON

RING - fire, cyl. head (Orange coded)

4шт.

10

G46867

GROMMET

- cyl. cover (13/32 x 1-1/4 x 3/8" rubber)

2шт.

11

G46851

SEAL

- valve stem (19/64 x 27/64 x 5/64" rubber)

8шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injector lines (3/8 x 9/16 x 1/16")

8шт.

13

222-101

SLEEVE,3/16" Tube

- fuel lines (For 3/16" tube)

4шт.

14

222-103

SLEEVE,5/16" Tube

Fuel lines 5/16" Tube

4шт.

18

A41426

KIT

CYLINDER BLOCK KIT (See note)

1шт.

19

G46857

GASKET

- inj. pump drive housing

1шт.

20

G46859

GASKET

- inj. pump drive hsg. cover

1шт.

21

G46802

GASKET

- rear oil seal retainer

1шт.

22

A30042

GASKET

- generator mtg. brkt.

1шт.

23

A38083

GASKET

- water pump

1шт.

24

G46854

GASKET

- oil filter bracket

1шт.

25

G46852

GASKET

- oil pump cover

1шт.

28

A40712

KIT

OIL PAN KIT (See note)

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

30

A27927

OIL PAN GASKET SET

- drain plug (3/4 x 1 x 1/16" copper)

1шт.

30

A30059

GASKET

- drain plug (29/32 x 1-3/32 x 3/32" copper)

1шт.
