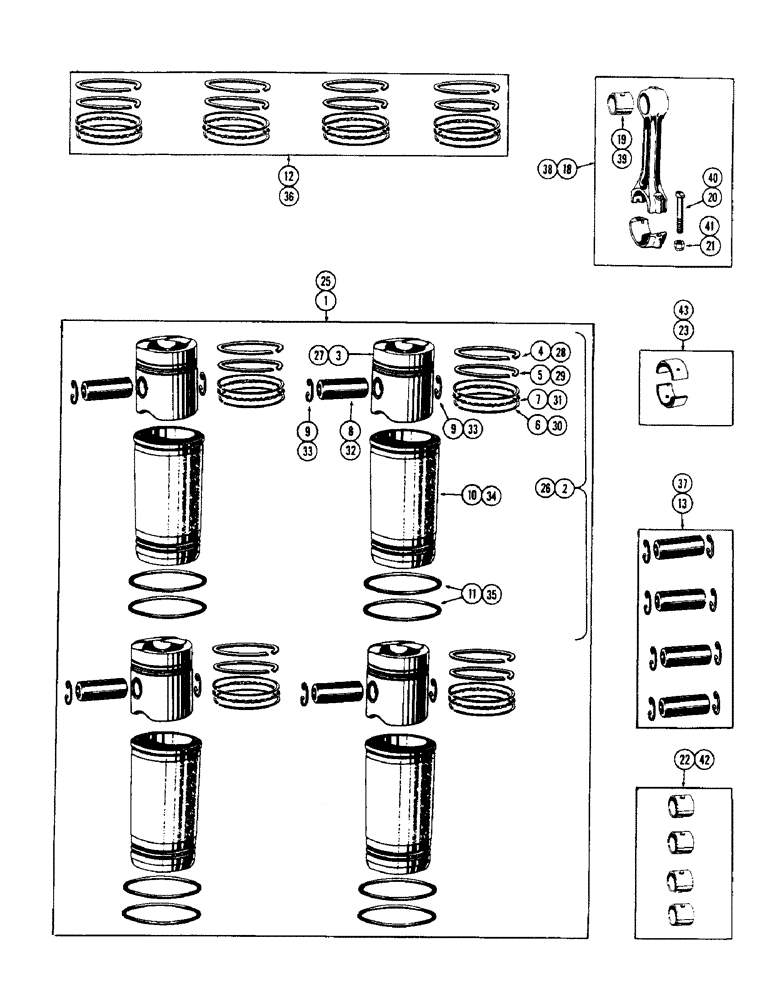

Запчасти Case IH 1150 (124) - PISTON ASSEMBLY, CONNECTING RODS AND BRGS., 188 DIESEL ENGINE, FOR WIDE FLANGED SLEEVES (10) - ENGINE

1

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE SET (Set of 4)

1шт.

2

A36391

SLEEVE ASSY

PISTON & SLEEVE ASSY. (Set of 1)

4шт.

3

G2137

X

PISTON - (3-13/16" bore)

1шт.

4

G4819

RING

- compression (1st groove) (See G37075)

1шт.

5

G4817

RING

- compression (2nd groove) (See G37075)

1шт.

6

G47155

RAIL

- oil control (3rd groove) (See G37075)

2шт.

7

G47174

SPRING

SPACER - oil rail (3rd groove) (See G37075)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin retaining

2шт.

10

G2110

SLEEVE

- piston (Cylinder liner) (See note)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston, w/ret. rings (Set of 4)

1шт.

18

G11847

ROD

ASSY. - connecting

4шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order G11953)

1шт.

20

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

21

G49060

NUT

- cap ret. bolt

2шт.

22

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

23

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.) (Set of 2)

4шт.

23

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002") (Set of 2)

4шт.

23

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010") (Set of 2)

4шт.

23

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020") (Set of 2)

4шт.

23

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030") (Set of 2)

4шт.

25

A37764

PISTON & SLEEVE SET (Set of 4) FOR WIDE FLANGED SLEEVES

1шт.

26

A37769

X

PISTON & SLEEVE ASSY. (Set of 1) FOR WIDE FLANGED SLEEVES

4шт.

27

G2137

X

PISTON (3-13/16" bore) FOR WIDE FLANGED SLEEVES

1шт.

28

G4819

RING

- compression (1st groove) (See G37075) FOR WIDE FLANGED SLEEVES

1шт.

29

G4817

RING

- compression (2nd groove) (See G37075) FOR WIDE FLANGED SLEEVES

1шт.

30

G47155

RAIL

- oil control (3rd groove) (See G37075) FOR WIDE FLANGED SLEEVES

2шт.

31

G47174

SPRING

SPACER - oil rail (3rd groove) (See G37075) FOR WIDE FLANGED SLEEVES

1шт.

32

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771) FOR WIDE FLANGED SLEEVES

1шт.

33

G46702

RING, LOCKING

RING - snap, piston pin retaining FOR WIDE FLANGED SLEEVES

2шт.

34

A37763

X

SLEEEVE - piston (Cylinder lines) See note FOR WIDE FLANGED SLEEVES

1шт.

35

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing FOR WIDE FLANGED SLEEVES

2шт.

36

G37075

RING

SET - re-ring (Set of 4) FOR WIDE FLANGED SLEEVES

1шт.

37

A35771

KIT

PIN SET - piston, w/ret. rings (Set of 4) FOR WIDE FLANGED SLEEVES

1шт.

38

G11847

ROD

ASSY. - connecting FOR WIDE FLANGED SLEEVES

4шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order G11953) FOR WIDE FLANGED SLEEVES

1шт.

40

G49064

STEP BOLT

BOLT - conn. rod cap FOR WIDE FLANGED SLEEVES

2шт.

41

G49060

NUT

- cap ret. bolt FOR WIDE FLANGED SLEEVES

2шт.

42

G11953

BUSHING

SET - piston pin (Set of 4) FOR WIDE FLANGED SLEEVES

1шт.

43

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.) (Set of 2) FOR WIDE FLANGED SLEEVES

4шт.

43

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002") (Set of 2) FOR WIDE FLANGED SLEEVES

4шт.

43

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010") (Set of 2) FOR WIDE FLANGED SLEEVES

4шт.

43

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020") (Set of 2) FOR WIDE FLANGED SLEEVES

4шт.

43

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030") (Set of 2) FOR WIDE FLANGED SLEEVES

4шт.
