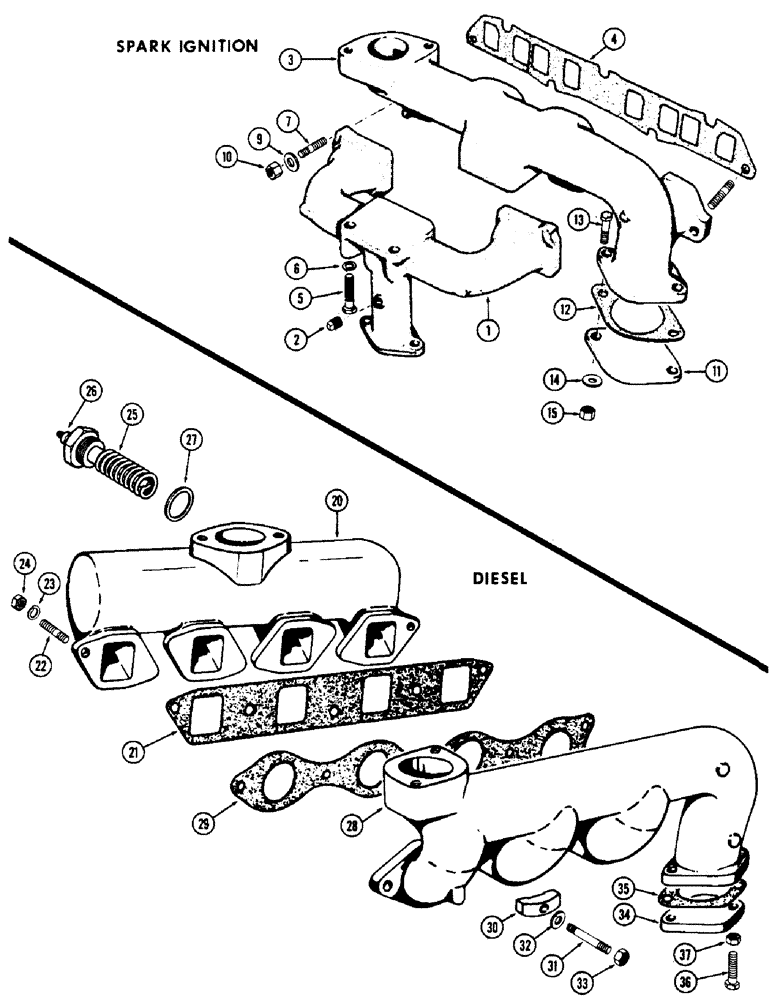

Запчасти Case IH 1150 (114) - MANIFOLDS, 159 SPARK IGNITION ENGINE (10) - ENGINE

1

A37004

MANIFOLD

ASSY. - intake (Replaces G11964)

1шт.

2

221-12

PLUG,Sq Hd, 1/4"-18

- (1/4" P.T., sq. hd.)

1шт.

3

G2042

MANIFOLD

- exhaust

1шт.

4

A30030

GASKET

-, Serial Range: manifolds-head

1шт.

5

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- manifolds (3/8 x 2-1/2" N.C. hex.)

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

A29431

STUD

- manifolds (3/8" N.C. x 1-3/4")

7шт.

9

A30058

WASHER

- manifold (13/32 x 7/8 x 1/8")

4шт.

9

95-6

WASHER,3/8"

- manifold (7/16 x 1 x 5/64")

3шт.

10

A30022

X

NUT - (3/8" N.C. hex., brass)

7шт.

11

G2044

LARGE PLATE

COVER - exhaust port

1шт.

12

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" N.C. hex.)

2шт.

14

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64")

2шт.

15

A30022

X

NUT - (3/8" N.C. hex., brass)

2шт.

20

A35782

MANIFOLD

- intake 188 DEISEL ENGINE

1шт.

21

G46871

GASKET

- intake manifold 188 DEISEL ENGINE

1шт.

22

A29431

STUD

- manifold (3/8" N.C. x 1-3/4") 188 DEISEL ENGINE

4шт.

23

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64") 188 DEISEL ENGINE

4шт.

24

131-903

NUT,3/8"-16

NUT - (3/8" N.C., "Seez-Pruf") 188 DEISEL ENGINE

4шт.

25

A37775

HEATER

ASSY. - manifold 188 DEISEL ENGINE

1шт.

26

129-503

NUT,1/4"-20, Brass

188 Deisel Engine 1/4"-20, Brass

1шт.

27

A20916

MANIFOLD GASKET

GASKET - manifold heater 188 DEISEL ENGINE

1шт.

28

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust 188 DEISEL ENGINE

1шт.

29

G46872

MANIFOLD GASKET

- exhaust manifold 188 DEISEL ENGINE

1шт.

30

A35028

CLAMP

- manifold 188 DEISEL ENGINE

6шт.

31

A35175

STUD

- manifold 188 DEISEL ENGINE

6шт.

32

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64") 188 DEISEL ENGINE

6шт.

33

131-903

NUT,3/8"-16

NUT - (3/8" N.C., "Seez-Pruf") 188 DEISEL ENGINE

6шт.

34

G2044

LARGE PLATE

COVER - exhaust port 188 DEISEL ENGINE

1шт.

35

G46853

MANIFOLD GASKET

- cover 188 DEISEL ENGINE

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" N.C. hex.) 188 DEISEL ENGINE

2шт.

37

A30022

X

NUT - (3/8" N.C. hex., brass) 188 DEISEL ENGINE

2шт.
