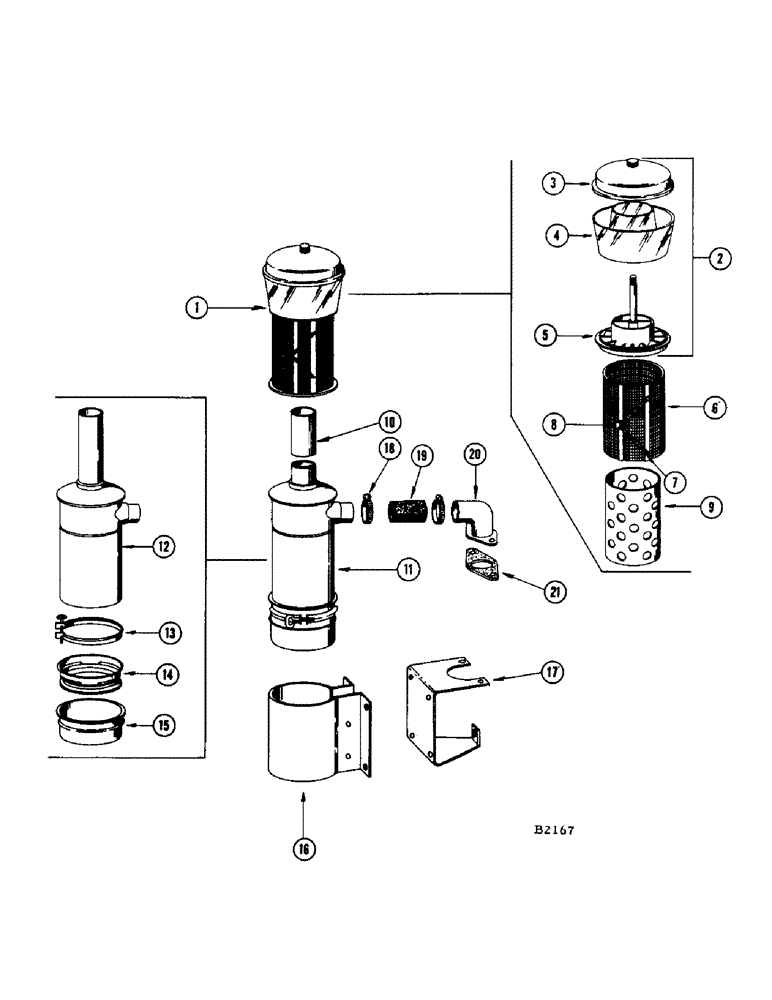

Запчасти Case IH 1150 (100) - AIR CLEANER, DIESEL ENGINE (10) - ENGINE

1

F84150

CLEANER

PRE-SCREENER (#8262501 and after)

1шт.

2

73188

X

COLLECTOR

1шт.

3

73187

COVER

1шт.

4

NLS

NO LONGER SERVICED

BODY

1шт.

5

73189

TUBE

SLEEVE

1шт.

6

F83644

SCREEN

1шт.

7

A22780

SPRING

2шт.

8

A27781

CLIP

1шт.

9

F84149

BODY

1шт.

F83641

CLEANER

PRE-SCREENER (Before #8262501)

1шт.

73184

CAMSHAFT

COLLECTOR

1шт.

73187

COVER

1шт.

73186

HOUSING

BODY

1шт.

73185

SLEEVE

1шт.

F83644

SCREEN

1шт.

A22780

SPRING

2шт.

A22781

CLIP

1шт.

F83643

BODY

1шт.

10

FH299289

EXTENSION (Before #8262501)

1шт.

11

G45473

AIR CLEANER

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

G45333

CLAMP

- oil cup

1шт.

14

G46326

X

OIL CUP - inner

1шт.

15

G46327

X

OIL CUP - outer

1шт.

16

FH291344

CLAMP - air cleaner mounting

1шт.

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16" x 3-3/4" N.C. hex., nut and L.W.

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

4шт.

17

FH291542

BRACKET - air cleaner mounting

1шт.

18

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - radiator hose

2шт.

19

FH720474

HOSE - air cleaner

1шт.

20

F1593

INTAKE - air, manifold

1шт.

21

D22670

GASKET

- air intake adapter

1шт.
