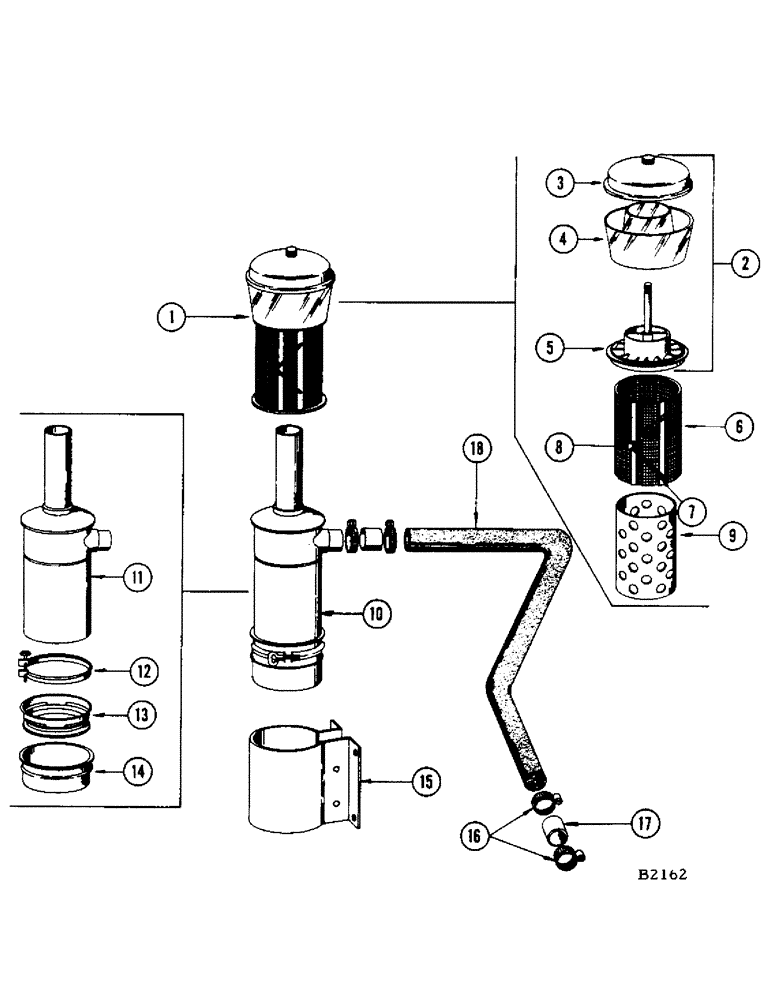

Запчасти Case IH 1150 (098) - AIR CLEANER, GASOLINE ENGINE (10) - ENGINE

1

F83786

PRE-SCREENER

1шт.

2

F82885

COLLECTOR

1шт.

3

73187

COVER

1шт.

4

73186

HOUSING

BODY

1шт.

5

F83513

SLEEVE

1шт.

6

F83644

SCREEN

1шт.

7

A22780

SPRING

2шт.

8

A22781

CLIP

1шт.

9

F83787

BODY

1шт.

10

F82166

AIR CLEANER

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

G45153

CLAMP

- oil cup

1шт.

13

G46324

CUP

- oil, inner

1шт.

14

G46325

CUP

- oil, outer

1шт.

15

FH293076

CLAMP - air cleaner

1шт.

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16" x 3-3/4" N.C. hex., nut and L.W.

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

4шт.

16

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

4шт.

17

FH721027

HOSE - air cleaner pipe

2шт.

18

FH721035

PIPE - air cleaner

1шт.
