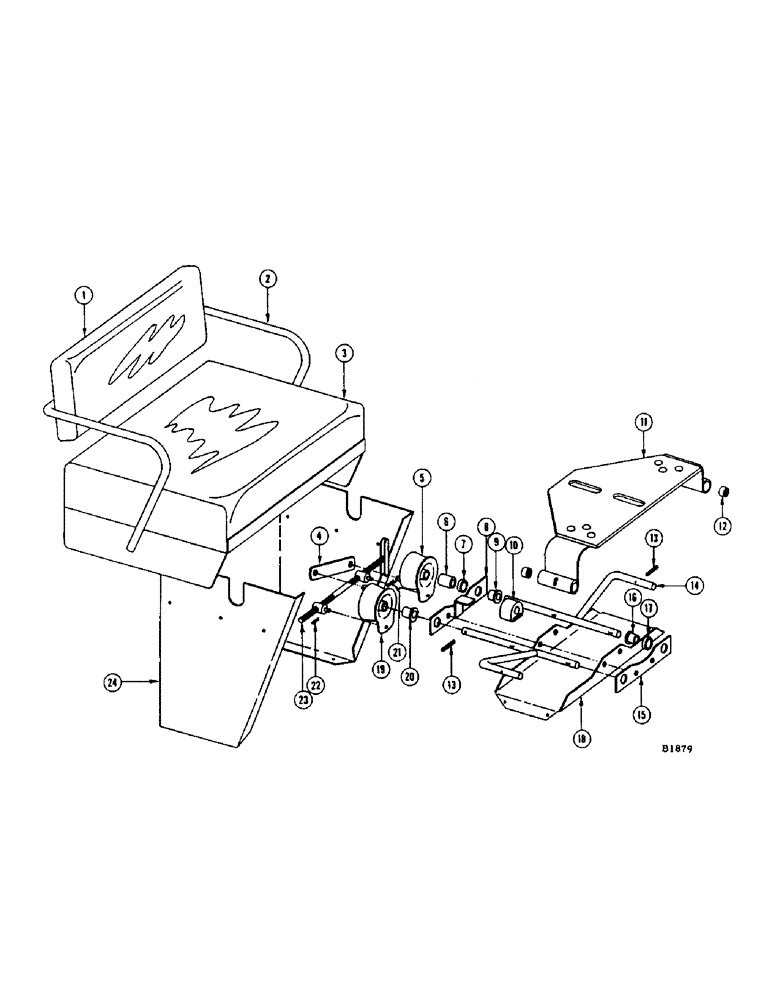

Запчасти Case IH 1150 (042) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
FHO45161
CUSHION - back rest
1шт.
2
FH339507
FRAME - seat (#8266001 and after)
1шт.
FH268474
FRAME - seat (Before #8266001)
1шт.
WASHER - 1/2" flat (195-106)
1шт.
BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (131-508) and L.W. (192-25)
2шт.
WASHER - 3/8" flat (195-104)
2шт.
3
FH752204
CUSHION - seat (#8266001 and after)
1шт.
FHO45153
CUSHION - seat (Before #8266001)
1шт.
4
G45005
LINK - stabilizing
1шт.
5
G45003
SPRING SEAT
SPRING - rubber, L.H.
1шт.
6
10953K
SPACER - spring shafts
2шт.
7
195-41
WASHER,5/8"
Rear, spring shafts 5/8"
4шт.
8
F94726
TIE BAR - rear, spring shafts
1шт.
9
G46002
FLANGED BEARING
BEARING - flanged
2шт.
10
A30644
BUMPER
- rubber, rear tie bar
1шт.
11
F94725
SUPPORT - seat suspension
1шт.
12
E3330S
BUSHING - for support
4шт.
13
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
4шт.
14
F94728
SHAFT - spring, R.H. AND L.H.
2шт.
15
F94727
TIE BAR - front, spring shafts
1шт.
16
G46002
FLANGED BEARING
BEARING - flanged
2шт.
17
A26462
WASHER
- front, spring shafts
4шт.
18
FH268573
ADAPTER - seat
1шт.
BOLT - 3/8" x 3/4" N.C. hex. (113-206) Nut (131-508)
6шт.
19
G45002
SPRING SEAT
SPRING - rubber, R.H.
1шт.
20
G46002
FLANGED BEARING
BEARING - flanged
2шт.
21
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
22
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
2шт.
23
F53363
STUD - adjusting (38266001 and after)
1шт.
F94729
STUD - adjusting (Before #8266001)
1шт.
24
FH268136
MOUNTING - seat
1шт.
BOLT - 3/8" x 3/4" N.C. hex. (113-206) Nut (131-508)
6шт.
B17131
DECAL KIT DECALS
1шт.
321-8
DECAL
EAGLE DECALS
1шт.
321-11
TRADE MARK DECALS
1шт.
321-48
BE CAREFUL DECALS
1шт.
321-262
AIR CLEANER DECALS
1шт.
321-266
DECAL
CASE DECALS
1шт.
321-339
DECAL
BLOCK HEADER DECALS
1шт.
321-348
DECAL
NEUTRAL DECALS
1шт.
321-832
REVERSE BELT DECALS
1шт.
321-833
DROP HEADER DECALS
1шт.
321-834
DO NOT TOW DECALS
1шт.
321-835
STEERING DECALS
1шт.
321-836
TIRE PRESSURE DECALS
5шт.
321-838
PATENT DECALS
1шт.
321-839
PATENT DECALS
1шт.
321-850
DIESEL DECALS
1шт.
321-851
NEGATIVE GROUND DECALS
1шт.
321-852
FUEL SHUT OFF DECALS
1шт.
321-853
CASE "1150" DECALS
1шт.
321-854
CASE DECALS
1шт.
Выбрано товаров: 52
