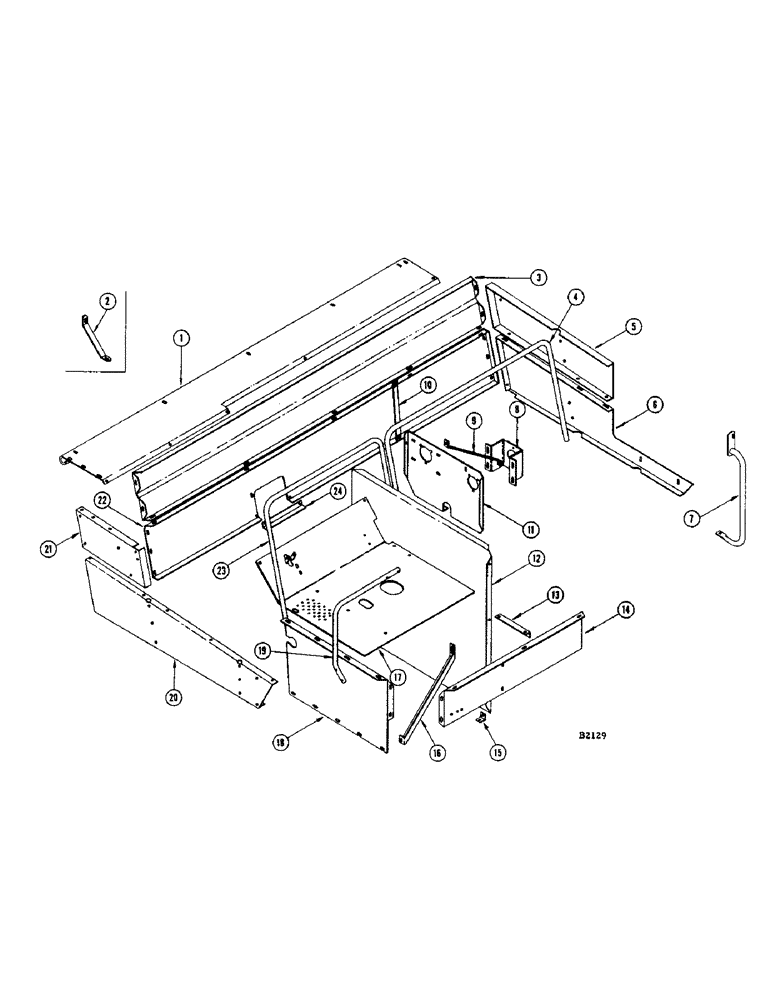

Запчасти Case IH 1150 (040) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

FH291740

PANEL - top

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (131-507) and fl. wshr. (195-521)

4шт.

2

FH292920

BRACE - panel to main frame

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) Nut (25-105) and L.W. (92-5) Fl. wshr. (95-5)

1шт.

3

FH291724

PANEL - upper front

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (131-507)

10шт.

WASHER - 5/16" flat (195-521)

5шт.

4

FH291443

RAIL - guard, R.H.

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (113-120) Nut (131-507) and L.W. (192-20)

2шт.

5

FH291757

PANEL - R.H. upper side

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (131-507)

11шт.

6

FH291567

PANEL - R.H. lower side

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (113-120) Nut (131-507) and L.W. (192-20) Fl. wshr. (195-5)

5шт.

7

FH295261

RAIL - hand

1шт.

BOLT - 3/8" x 2-1/2" N.C. hex. (13-624) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

2шт.

8

FH268219

MOUNTING - hydraulic pump

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) Nut (25-106) L.W. (92-6)

4шт.

9

FH269282

BRACE - hydraulic pump

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (13-624) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

1шт.

10

FH315515

BRACE - (#8262501 and after)

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-519) Nut (131-507) and fl. wshr. (95-5)

1шт.

11

FH267930

BRACKET - reverse drive shaft support

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

4шт.

12

FH291377

SUPPORT - right, platform

1шт.

BOLT - 3/8" x 1" (13-616) Nut (25-106) L.W. (92-6)

6шт.

13

FH137208

BRACKET - right front

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

3шт.

14

FH268110

SUPPORT - rear

1шт.

15

FH137935

BRACKET - attaching, for ref. 12 support

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) and L.W. (92-6) Fl. wshr. (95-6)

2шт.

16

FH268102

BRACE - vari-drive support (Before #8309801)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

2шт.

17

FH339523

PLATFORM - (#8266001 and after)

1шт.

FH291351

PLATFORM - (Before #8266001)

1шт.

18

FH268128

SUPPORT - left, platform

1шт.

19

FH268417

RAIL - guard, L.H. rear

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (113-120) Nut (131-507)

4шт.

20

FH270363

PANEL - L.H. side

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (131-507) and L.W. (92-5) Fl. wshr. (95-5)

7шт.

21

FH268235

PANEL - L.H. upper side

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) Nut (131-507)

12шт.

22

FH291518

PANEL - lower front

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105) L.W. (92-5)

3шт.

WASHER - 5/16" flat (95-5)

3шт.

23

FH291534

RAIL - guard, L.H.

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (113-120) Nut (131-507)

4шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (113-117) Nut (131-507)

2шт.

24

FH269746

ANGLE - reinforcement, for ref. 22 panel

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105) L.W. (92-5)

2шт.
